PLAN 47-857

Photographs may show modified designs.

Dream House Plan - Victorian Exterior - Front Elevation Plan #47-857

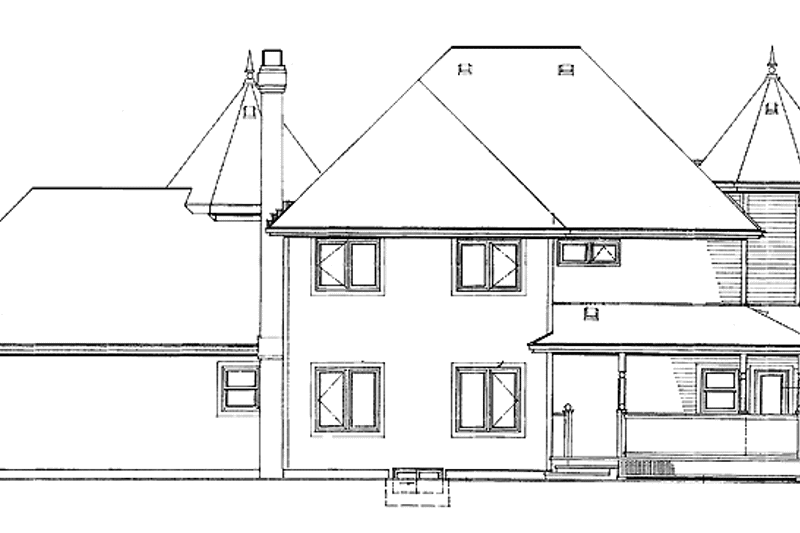

Dream House Plan - Victorian Exterior - Rear Elevation Plan #47-857

Home / Style / Victorian House Plans

Key Specs

2632
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$175.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$483.00

Additional Use License.

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Material List

$85.00

A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$60.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Unlimited Use License

$966.00

Unlimited Use License.

Subtotal

$1062.60

Also order by phone: 1-800-447-0027

Cost to Build Reports Only $4.99 with Code CTBSUMMER (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 47-857

Home / Style / Victorian House Plans

Key Specs

2632
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Rich with Victorian details--scalloped shingles, a wraparound veranda, and turrets--this beautiful facade conceals a modern floor plan. Archways announce a distinctive living room with a lovely tray ceiling and help define the dining room. An octagonal den across from the foyer is a private spot for reading or studying. The U-shaped island kitchen holds an octagonal breakfast bay and a pass-through breakfast bar to the family room. Upstairs, three family bedrooms share a hall bath--one bedroom is within a turret. The master suite is complete with a sitting room with a bay window, along with a fancy bath set in another of the turrets.

Floor Plans

Floor Plan - Main Floor

Reverse

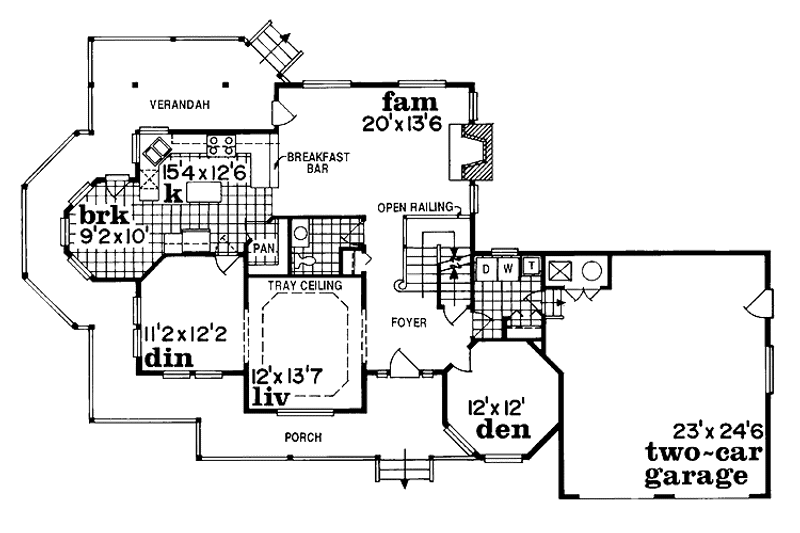

Dream House Plan - Victorian Floor Plan - Main Floor Plan #47-857

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

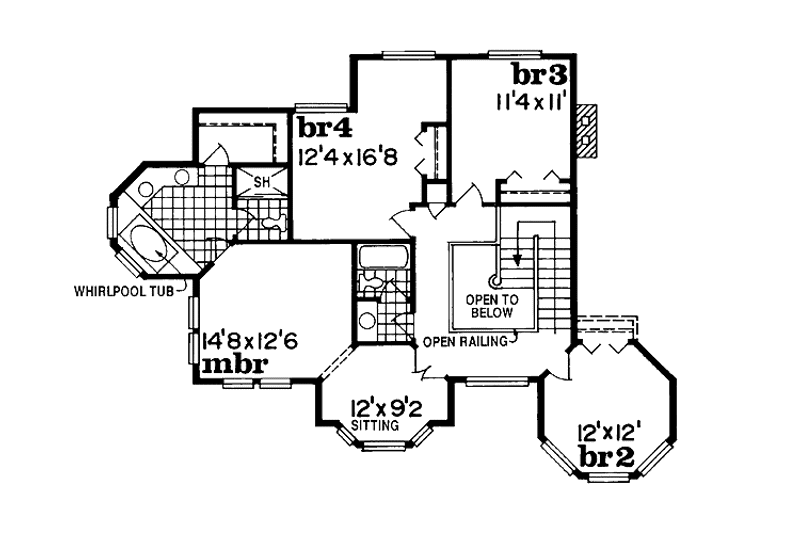

Dream House Plan - Victorian Floor Plan - Upper Floor Plan #47-857

Full Specs & Features

Dimension

Depth : 44'

Height : 32'

Width : 79'

Area

First Floor: 1362 sq/ft height 9'

Second Floor: 1270 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Combination Truss/Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Main Floor Laundry

Master Sitting Area

Outdoor Spaces

Balcony

Covered Front Porch

Wrap Around Porch

Rooms

3rd BR Closet:

14 sq/ft width 7' 4" x depth 2'

Basement Foundation:

2082 sq/ft width 52' 6" x depth 39' 8"

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 2:

width 1' x depth 1'

Bedroom 2 Closet:

10 sq/ft width 5' x depth 2'

Bedroom 3:

124 sq/ft width 11' 4" x depth 11'

Bedroom 3:

width 11' 4" x depth 11'

Bedroom 3 Closet:

10 sq/ft width 5' x depth 2'

Bedroom 4:

150 sq/ft width 12' 2" x depth 12' 4"

Bedroom 4:

width 12' 2" x depth 12' 4"

Bedroom 4 Closet:

10 sq/ft width 2' x depth 5'

Breakfast Room:

91 sq/ft width 9' 2" x depth 10'

Crawlspace Foundation:

2082 sq/ft width 52' 6" x depth 39' 8"

Deck:

188 sq/ft width 19' 10" x depth 9' 6"

Den/Office or Bedroom 1:

144 sq/ft width 12' x depth 12'

Dining Room:

135 sq/ft width 11' 2" x depth 12' 2"

Foyer:

96 sq/ft width 11' 4" x depth 8' 6"

Foyer:

width 11' 4" x depth 8' 6"

Garage:

525 sq/ft width 21' x depth 25'

Gathering Room:

266 sq/ft width 20' x depth 13' 4"

Hall Bath:

width 5' x depth 9'

Hall Bathroom:

45 sq/ft width 5' x depth 9'

Hall Closet:

5 sq/ft width 2' x depth 2' 6"

Kitchen:

191 sq/ft width 15' 4" x depth 12' 6"

Living Room:

162 sq/ft width 12' x depth 13' 7"

Master Bathroom:

100 sq/ft width 10' x depth 10'

Master Bedroom:

183 sq/ft width 14' 8" x depth 12' 6"

Master Closet:

46 sq/ft width 8' 8" x depth 5' 4"

Porch - Front:

183 sq/ft width 40' 10" x depth 4' 6"

Porch - Left:

117 sq/ft width 4' 6" x depth 26'

Powder Room:

25 sq/ft width 4' 6" x depth 5' 9"

Utility Room:

61 sq/ft width 7' x depth 8' 10"
