PLAN 1010-136
Key Specs
2640
sq ft
4
Beds
2.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 1010-136
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

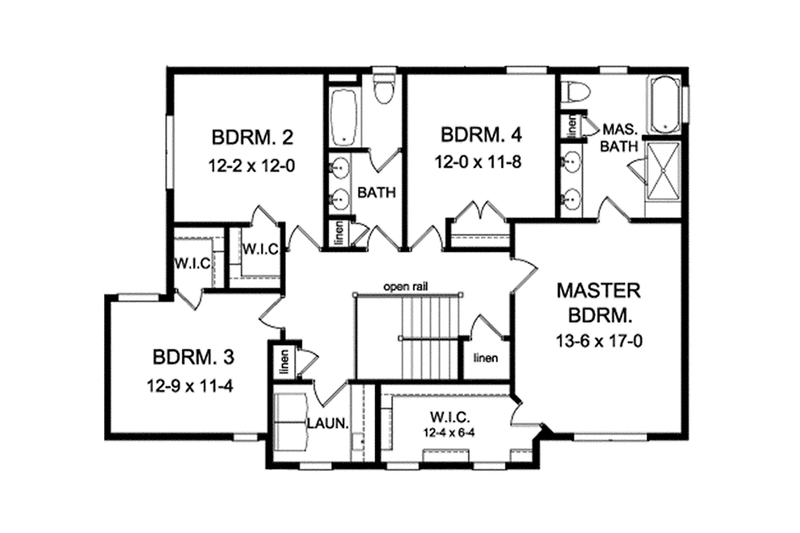

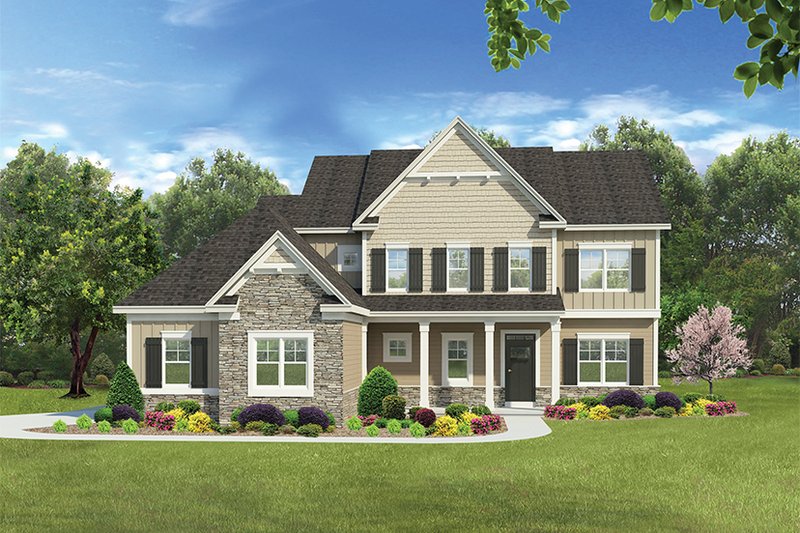

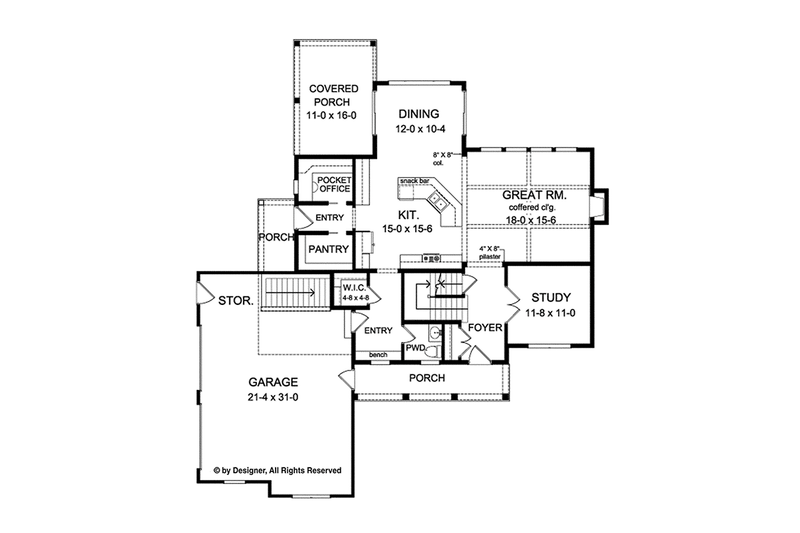

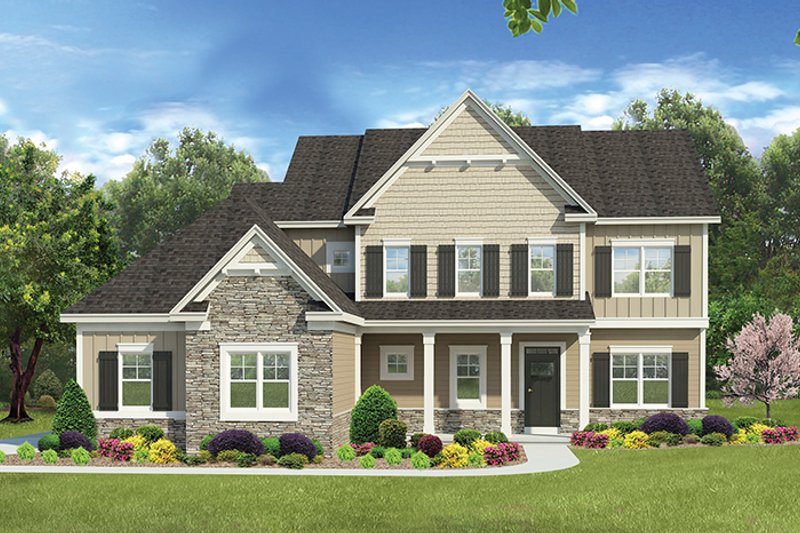

The combination of shingle, siding and stone make this plan a nice marriage of Traditional and Craftsman styles. The first level has an open concept layout with a beautiful coffered ceiling in the great room. Other amenities include a big walk-in pantry, a pocket office off the kitchen, a walk-in closet in the mudroom and a private study. The upstairs has four bedrooms, including the master suite with a large walk-in closet and luxury bath, as well as, the laundry room.
Full Specs & Features
Dimension
Depth : 58' 4"
Height : 33' 7"
Width : 55' 8"
Height : 33' 7"
Width : 55' 8"
Area
Basement Unfinished: 1270 sq/ft
First Floor: 1270 sq/ft height 9'
Garage: 652 sq/ft
Second Floor: 1370 sq/ft height 8'
First Floor: 1270 sq/ft height 9'
Garage: 652 sq/ft
Second Floor: 1370 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Upstairs Master Bedrooms
Walk In Closet
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Mud Room
Open Floor Plan
Storage Area
Upstairs Laundry
Great Room Living Room
Loft
Mud Room
Open Floor Plan
Storage Area
Upstairs Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
146 sq/ft width 12' 2" x depth 12'
Bedroom 3:
144 sq/ft width 12' 9" x depth 11' 4"
Bedroom 4:
140 sq/ft width 12' x depth 11' 8"
Covered Front Porch:
161 sq/ft
Covered Rear Porch:
176 sq/ft width 11' x depth 16'
Dining:
124 sq/ft width 12' x depth 10' 4"
Garage:
652 sq/ft width 21' 4" x depth 31'
Great Room:
279 sq/ft width 18' x depth 15' 6"
Kitchen:
234 sq/ft width 15' x depth 15' 6"
Laundry room:
53 sq/ft width 8' 4" x depth 6' 4"
Master Closet:
78 sq/ft width 12' 4" x depth 6' 4"
Master bath:
115 sq/ft width 9' 10" x depth 11' 8"
Master Bedroom:
width 13' 6" x depth 17'
Study:
128 sq/ft width 11' 8" x depth 11'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

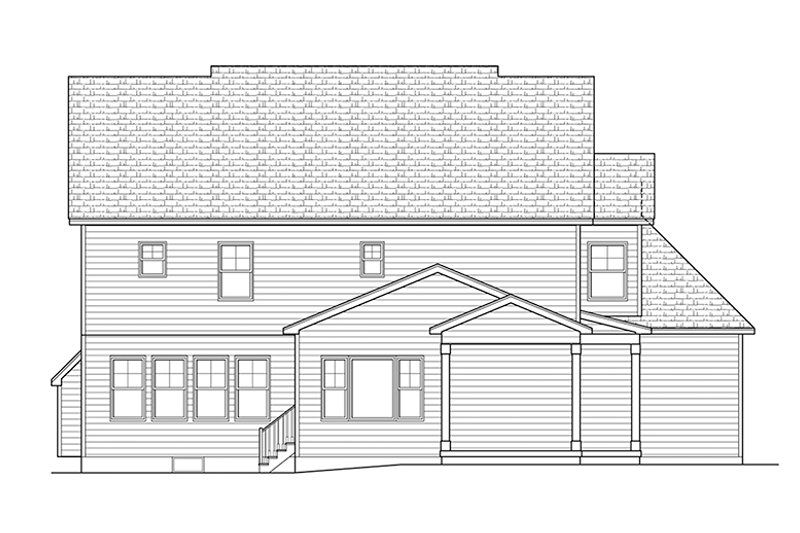

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
- CAD Plans are in AutoDesk Architecture.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set : $1850.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $1900.00 |
5 printed plan sets mailed to you. |
| CAD Set : $3700.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set : $1000.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
| Study Set : $1000.00 |
One electronic set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Additional Construction Sets : $75.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets : $100.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
