PLAN #1010-197

Key Specs


2668
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

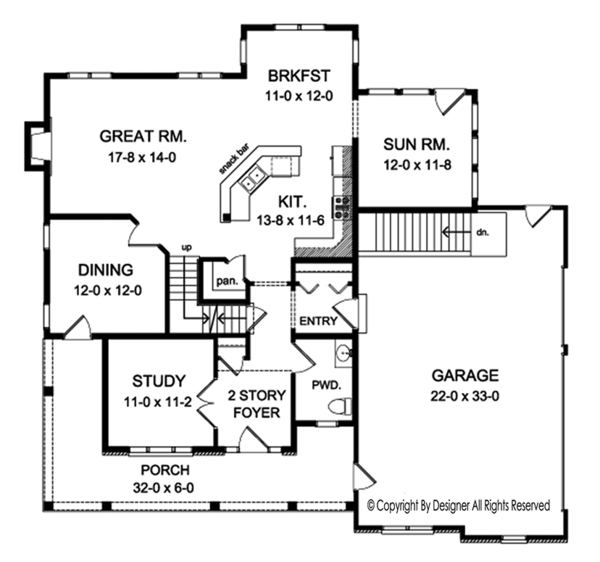

Floor Plan - Main Floor Plan
Colonial Floor Plan - Main Floor Plan Plan #1010-197

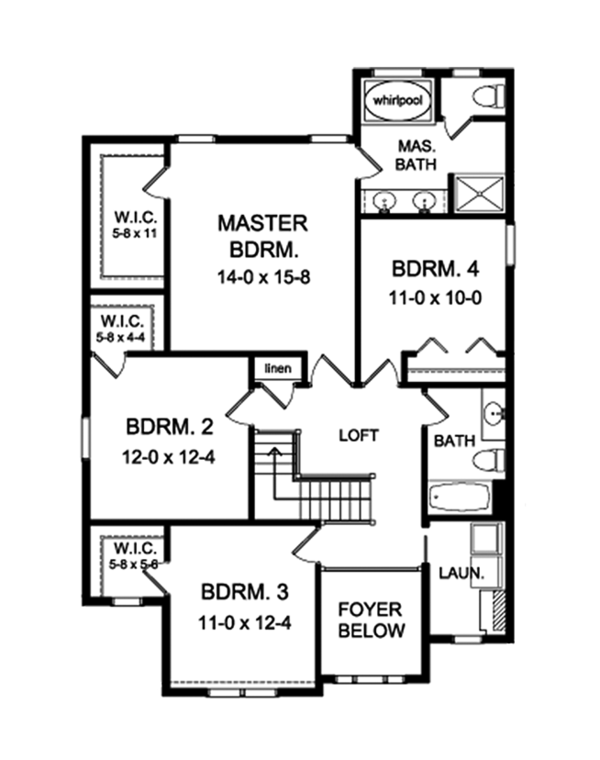

Floor Plan - Upper Floor Plan
Colonial Floor Plan - Upper Floor Plan Plan #1010-197

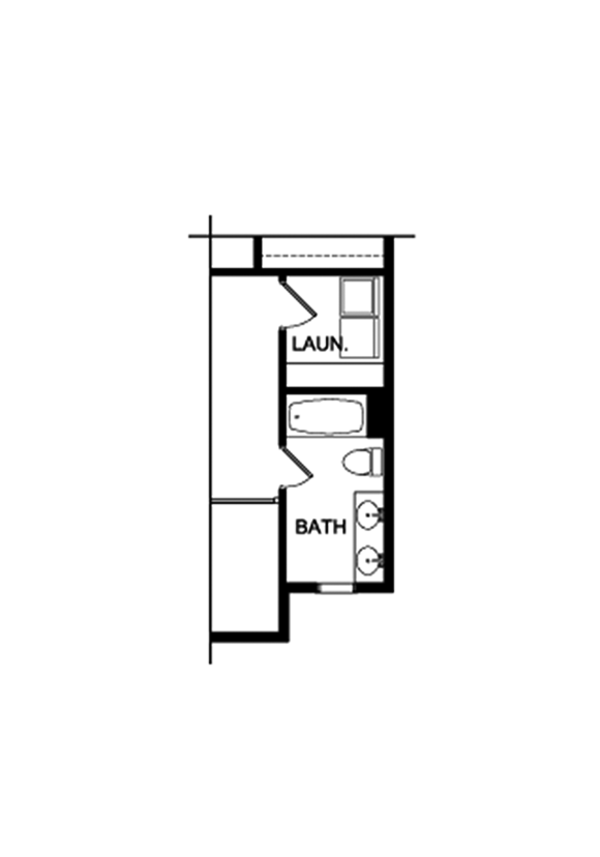

Floor Plan - Upper Floor Plan
Colonial Floor Plan - Upper Floor Plan Plan #1010-197

Full Specs & Features


Dimension
Depth : 53'
Height : 34'
Width : 54'
Area
Basement Unfinished: 1390 sq/ft
First Floor: 1390 sq/ft
Garage: 722 sq/ft
Porch: 278 sq/ft
Second Floor: 1278 sq/ft
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 8:12
Secondary Pitch : 12:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Upstairs Laundry
Sunroom
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Screened Porch
Wrap Around Porch

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Plan: ⅛” scale; this shows roof rafter or trusses and how the roof is framed.
» See important information before purchasing.

Plan Set

5 Copy Set :
$918.00
5 printed plan sets mailed to you.
PDF Set :
$918.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set :
$1098.00
8 printed plan sets mailed to you.
CAD Set :
$1980.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Additional Construction Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
67.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
90.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
