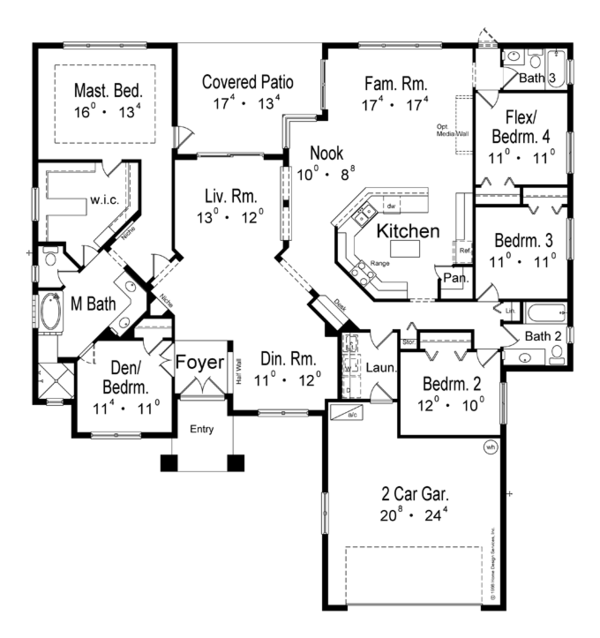

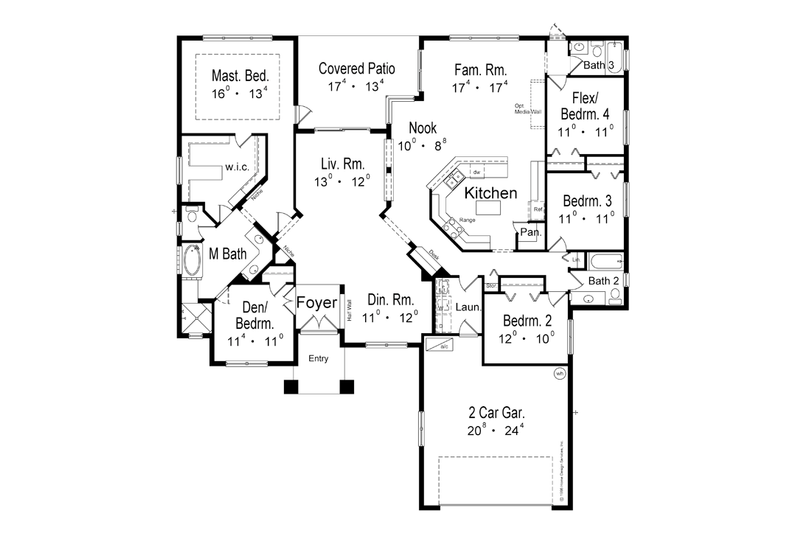

This lovely one-story house boasts a contemporary feel while also adding warmth with the Mediterranean elements of stucco and arched windows and doorways. Inside, the formal dining room flows easily into the living room, which opens to the covered patio. Double doors reveal a den, which could also serve as a home office or a fifth bedroom. The open kitchen spills into the versatile breakfast nook as well as into the family room, which is spacious enough for any gathering. The private master suite includes a plush bath and walk-in closet/dressing room. The split-bedroom plan also includes three additional bedrooms with two hall baths.
width 12' x depth 10'
width 11' x depth 11'
width 11' x depth 11'
Den Bedroom 5:
width 11' 4" x depth 11' 6"
width 11' x depth 12'
width 17' 4" x depth 17' 4"
493 sq/ft width 20' 5" x depth 24' 4"
width 13' x depth 12'
width 16' x depth 13' 4"
width 10' x depth 8' 8"
Rear Covered Porch:
209 sq/ft width 17' 4" x depth 13' 4"
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|5 Copy and PDF Set
|5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|CAD Single Build
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|One electronic set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
