Key Specs


2689
sq ft

4
Beds

4
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Rediscover the charm of Craftsman design in this modern home with Arts and Crafts details. A thoroughly up-to-date floor plan is characterized by an open layout with a vaulted central grand room and a first-floor master suite. No tiny turn-of-the-century kitchen here, just a masterpiece for the new millenium topped by a rustic coffered ceiling to please both the gourmet and the aesthete in the family. With careful furnishing, a first-floor bedroom could serve double duty as a home office and guest suite. Upstairs are two or three additional bedrooms, perfect for growing families.<P/><BR/>Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.

Floor Plans

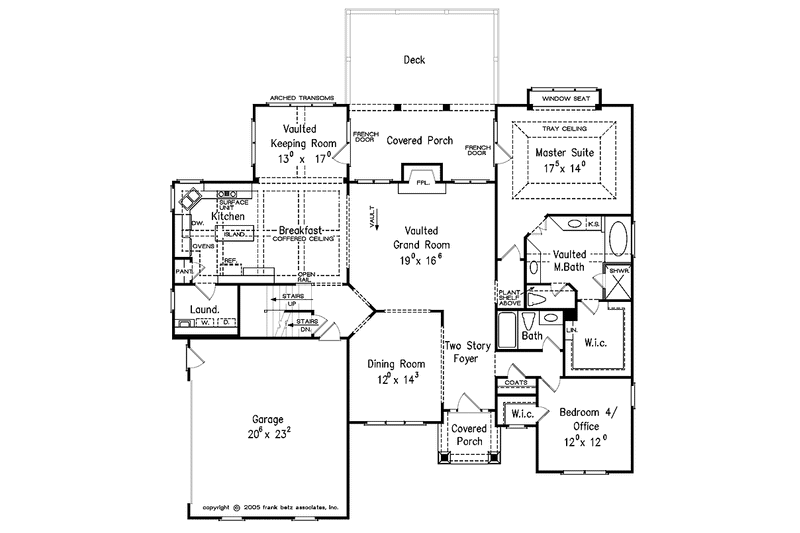

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #927-336

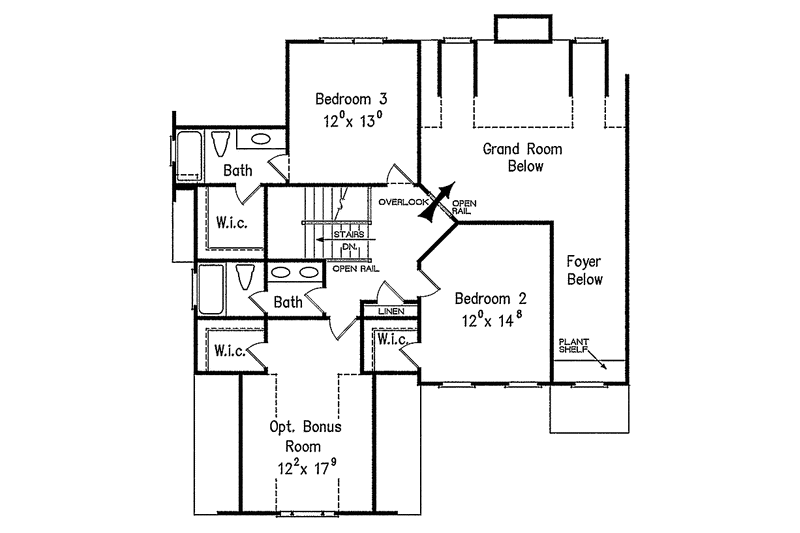

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #927-336

Full Specs & Features


Dimension
Depth : 56'
Height : 29'
Width : 60'
Area
Bonus: 243 sq/ft
First Floor: 2042 sq/ft
Second Floor: 647 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Fireplace
Formal Dining Room
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space
Outdoor Spaces
Covered Rear Porch
Rooms

Bedroom 2:

176 sq/ft width 12' x depth 14' 8"

Bedroom 3:

156 sq/ft width 12' x depth 13'

Bedroom 4:

144 sq/ft width 12' x depth 12'

Bonus Room - Finished:

215 sq/ft width 12' 2" x depth 17' 9"

Breakfast Room:

156 sq/ft width 12' x depth 13'

Covered Porch:

187 sq/ft width 18' 9" x depth 10'

Dining Room:

171 sq/ft width 12' x depth 14' 3"

Family Room:

313 sq/ft width 19' x depth 16' 6"

Foyer:

86 sq/ft width 6' 8" x depth 13'

Garage:

476 sq/ft width 20' 6" x depth 23' 3"

Keeping Room:

120 sq/ft width 12' x depth 10'

Kitchen:

133 sq/ft width 10' 3" x depth 13'

Laundry Room:

52 sq/ft width 8' 2" x depth 6' 5"

Master Bathroom:

146 sq/ft width 13' 8" x depth 10' 9"

Master Bedroom:

243 sq/ft width 17' 5" x depth 14'

Master Closet:

82 sq/ft width 8' 7" x depth 9' 8"

Office:

144 sq/ft width 12' x depth 12'

What's Included In This Plan Set


  • Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
  • All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
  • Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
  • Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
  • Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
  • The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
