Plan Description
Welcome to this charming home exuding warmth, character, and timeless elegance. This residence invites you into a world of Mediterranean-inspired beauty. As you approach, the eye-catching clay roof immediately captures your attention, its dark hues contrasting beautifully against the crisp stucco walls. A covered porch, adorned with intricately designed wooden detailing, offers a serene spot to enjoy the gentle breezes and soak in the surrounding beauty. Moving through the inviting entryway, you step into a spacious living area, with an additional flex space, illuminated by an abundance of natural light streaming through large windows. The floor plan seamlessly integrates the living room, dining area, and kitchen, creating a perfect space for both relaxation and entertaining. Venturing further, you discover a delightful pergola porch, creating a picturesque oasis for outdoor gatherings or quiet contemplation. This enchanting space is ideal for savoring al fresco meals or simply basking in the sun-drenched ambiance of the Mediterranean. Ascending the staircase, you arrive at the second story, where a charming loft awaits. This versatile space offers endless possibilities and is equipped with a wet bar. Whether enjoying a morning coffee or savoring a glass of wine at sunset, this elevated sanctuary provides the perfect vantage point to admire the natural beauty that surrounds you. With its harmonious blend of traditional Spanish architecture and modern amenities, this home embodies the essence of Mediterranean living. Every detail has been thoughtfully designed to create a sanctuary of comfort and style. Welcome home to timeless elegance and effortless sophistication.
Floor Plans

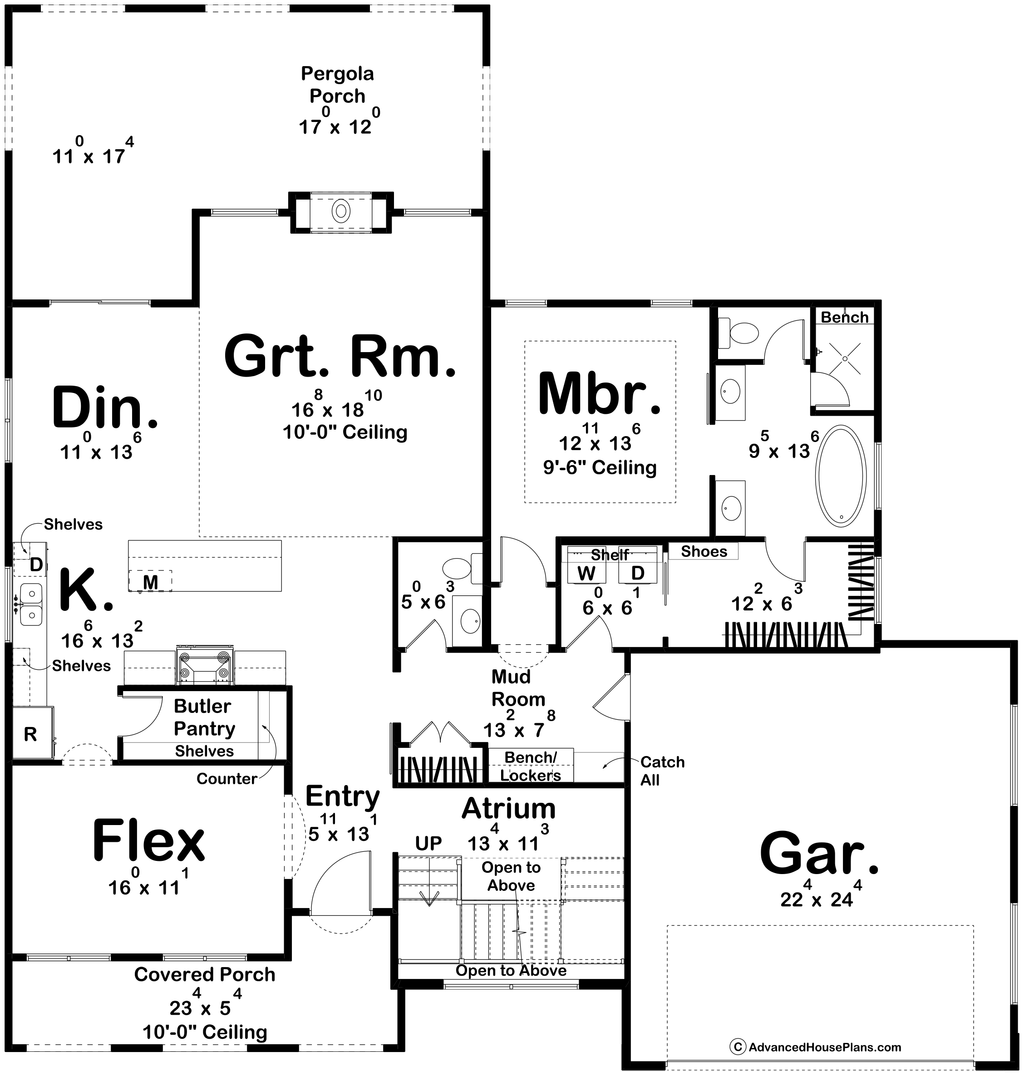

Floor Plan - Main Floor

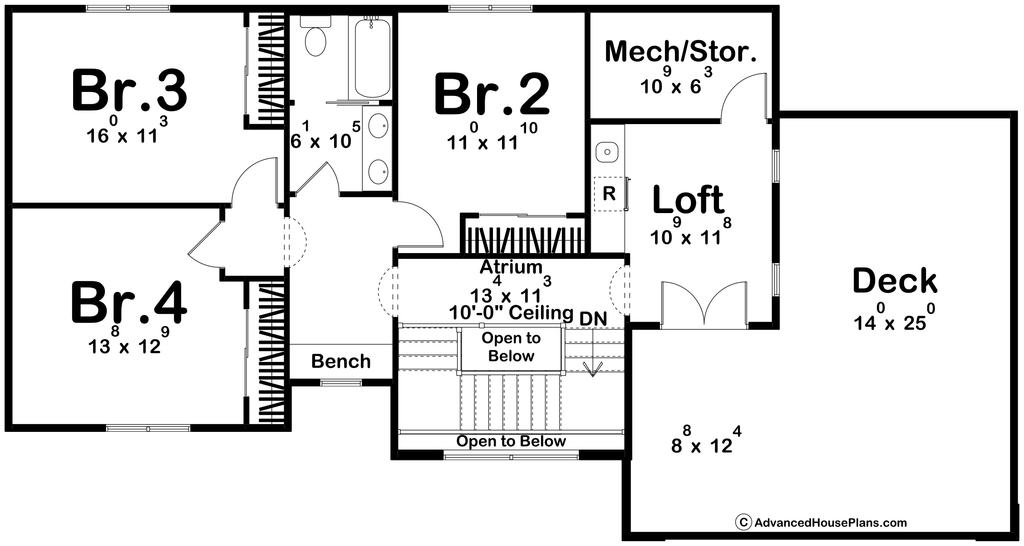

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 62' 4"
Height : 23' 5"
Width : 59' 4"
Area
Garage : 558 sq/ft
Main Floor : 1827 sq/ft
Upper Floor : 916 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : The covered porch, great room, and atrium feature 10 foot tall ceilings. The master bedroom features a 9 foot 6 inch ceiling.
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 3/12
Roof Framing : Trusses
Exterior Wall Framing
Framing : 2x4
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Butler's Pantry
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Play Flex Room
Storage Area
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
