Key Specs


2746
sq ft

3
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This home puts a unique spin on the definition of a two-story. With craftsman detailing that includes shingle siding, wooden beams, stone accents and iron railings, this home will invoke a modern spin on an old style. As you enter, you’ll find a family room with corner fireplace and a full bath. The second floor is actually the main living area and it includes a great room with cathedral ceiling, dining room with step ceiling, and a kitchen with breakfast bar for casual seating. The master suite lies to the left of the home and includes a spacious walk-in closet and an on-suite bath. Two additional bedrooms lie to the back of the home and share a full bath just off the hallway. A side-load, three-stall garage completes the home.

Floor Plans

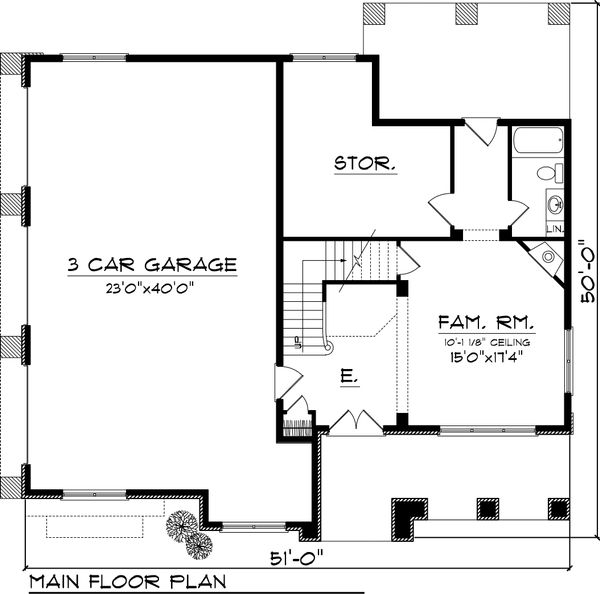

Floor Plan - Main Floor Plan
Bungalow Floor Plan - Main Floor Plan Plan #70-1058

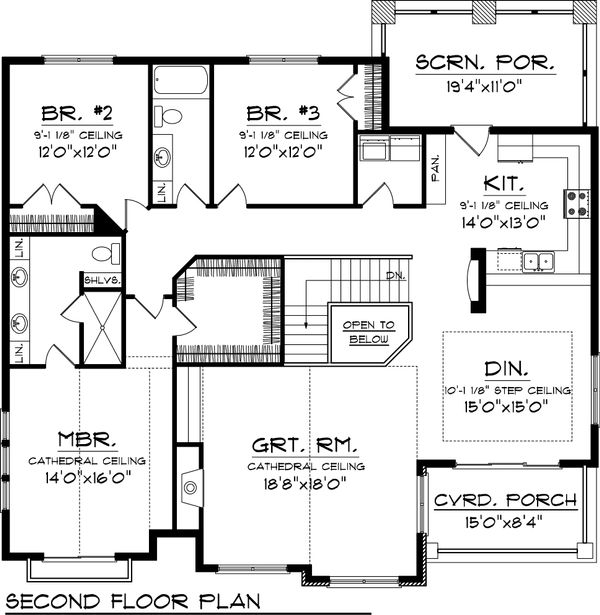

Floor Plan - Upper Floor Plan
Bungalow Floor Plan - Upper Floor Plan Plan #70-1058

Full Specs & Features


Dimension
Depth : 50'
Height : 37'
Width : 51'
Area
First Floor: 852 sq/ft
Garage: 1020 sq/ft
Second Floor: 1894 sq/ft
Ceiling
Ceiling Details : Dining 10' Step, Great Room and Master Bedroom Cathedral
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Roof Framing : Truss
Roof Load : 47
Primary Pitch : 9:12
Secondary Pitch : 9:12
Exterior Wall Framing
Insulation : 19
Exterior Wall Finish : Shingle, Stone
Framing : 2 x 6
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bathroom 2:

width 5' x depth 10' 5"

Bedroom 2:

width 12' x depth 12'

Bedroom 2 Closet:

width 7' 3" x depth 2' 1"

Bedroom 3:

width 12' x depth 12'

Bedroom 3 Closet:

width 21' 10" x depth 5' 8"

Dining:

width 15' x depth 15'

Family Room:

width 15' x depth 17' 4"

Foyer:

width 10' 8" x depth 6' 8"

Garage:

1020 sq/ft width 23' x depth 40'

Great Room:

width 18' 8" x depth 18'

Half Bath:

width 5' x depth 12'

Hall:

width 24' x depth 4'

Hall Closet:

width 2' 9" x depth 2' 1"

Kitchen:

width 14' x depth 13'

Laundry:

width 5' 6" x depth 6'

Master Bath:

width 9' 8" x depth 11'

Master Bedroom:

width 14' x depth 16'

Master Walk In Closet:

width 9' x depth 9'

Porch Rear:

width 19' 4" x depth 11'

Slab:

width 51' x depth 45'

Storage:

width 15' 8" x depth 16' 5"
