PLAN 456-99

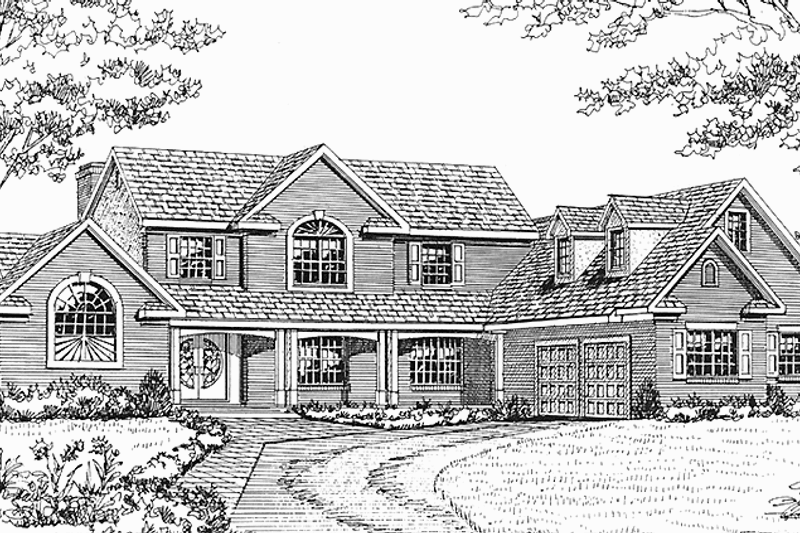

Photographs may show modified designs.
- Jump to:
- All (3)
- Floor plans (2)
Get Personalized Help
Key Specs
2763
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 456-99
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

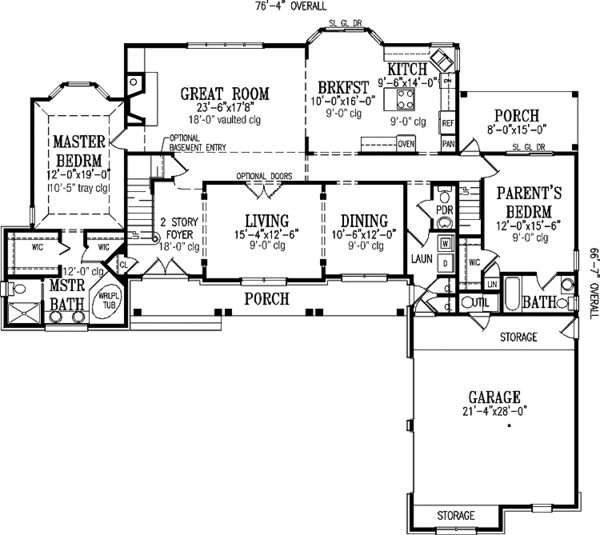

Floor Plan - Main Floor

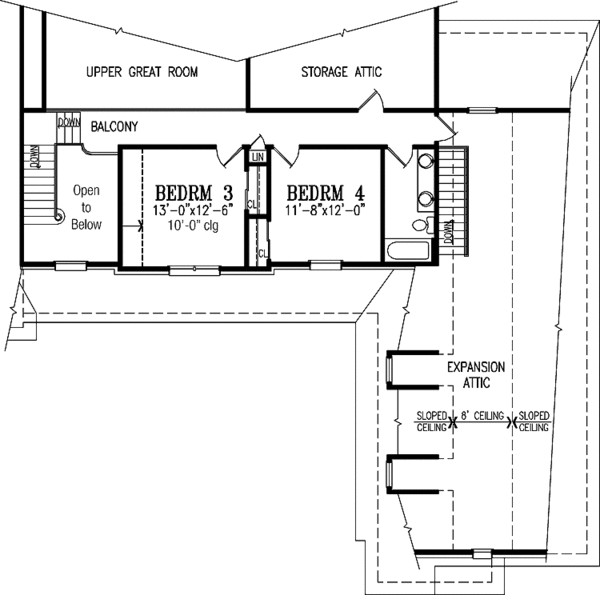

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 67'
Height : 27'
Width : 77'
Area
Basement Unfinished: 2180 sq/ft
First Floor: 2182 sq/ft
Second Floor: 581 sq/ft
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Loft
Master Sitting Area
Unfinished Future Space
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Bedroom 3:
162 sq/ft width 13' x depth 12' 6"
Bedroom 4:
140 sq/ft width 11' 8" x depth 12'
Bonus Room - Finished:
602 sq/ft width 14' x depth 43'
Breakfast Nook:
160 sq/ft width 10' x depth 16'
Dining Room:
126 sq/ft width 10' 6" x depth 12'
Entry:
60 sq/ft width 6' x depth 10'
Great Room:
415 sq/ft width 23' 6" x depth 17' 8"
Guest Bedroom:
186 sq/ft width 12' x depth 15' 6"
Kitchen:
133 sq/ft width 9' 6" x depth 14'
Living Room:
191 sq/ft width 15' 4" x depth 12' 6"
Loft:
78 sq/ft width 26' x depth 3'
Master Bathroom:
225 sq/ft width 15' x depth 15'
Master Bedroom:
228 sq/ft width 12' x depth 19'
What's Included In This Plan Set
- Exterior Elevations: showing the front, rear, and side views with standard and alternate material choices; all elevations are usually ¼" scale.
- Foundation plans: separate foundation plans are usually provided for a basement/crawl space, and slab, unless otherwise noted. All are drawn at ¼" scale and include first floor framing information for basement/crawl spaces, including beams, girders, columns and piers. Some plans include walk-out(daylight) basement options as well.
- Floor plans: ¼" scale for each floor, including all room dimensions, door and window sizes and locations, stairways, kitchens, baths, etc. Framing information for stick framed ceiling beams and/or second floor framing is included.
- Cross sections: ¼" scale cut-away views for each distinct area, showing all framing, ceiling details, heights, roof pitches, etc.
- Roof plan: a separate roof plan is usually provided showing all pitches, rafter sizes, valley, hip and ridge locations, and areas of double roof framing.
- Schematic electrical: shows suggested locations for outlets, switches and fixtures on either a separate drawing or directly on the floor plans.
- Kitchen cabinets: schematic drawings of all kitchen cabinets.
- Specifications: a separate 8 page outline specification of most materials, construction methods and techniques, in a format for customizing; for use in obtaining bids and as a contract document.
- Standard details: 2 additional drawing pages filled with standard construction details.
- Energy conservation details: 2 more drawing pages chock full of drawings and ideas on how to build to conserve energy.
- Making changes: finally we include a separate 6 page primer on choosing a contractor and making changes, as virtually everyone makes some changes in building their home.
Plan Set
$994.50
$1088.00
$1151.75
$1168.75
$1865.75
Foundation
$0.00
$0.00
$127.50
Framing
$0.00
$127.50
Additional Options
$297.50
$42.50
$85.00
$33.15
$80.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
