Key Specs


2783
sq ft

3
Beds

3
Baths

2
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


In keeping with the traditional southwest style of the home, this home has a stucco siding finish, and natural wood tones. The entry court yard and the roof top deck are a defining feature of this home and sure to make it stand out on the block. This home is ideal for suburban lots and can hosts a large or growing family with its 4 large bedrooms. This design hosts generous outdoor rooms, including an entry court yard and roof deck. The main entries at the front and rear of the home, including the south facing windows are shaded to reduce solar heat gain during the warm summer months. Explore what this plan has to offer.

 Upon entry you are greeted by a large open living space including ample room for lounging furniture and dining room table. The back yard beckons you through two large glass French doors. A large guest room has access to the entry court yard. There is also another small bedroom on the first floor that could be used as an office. The polish concrete floors give this home a cool modern feel despite its more traditional exterior façade.

 Functional sleeping quarter occupy the second floor. Two bedrooms including a magnificent master suite and large laundry room will make southwestern living a little more comfortable. Although the large bedrooms and the laundry room are nice features, nothing compares to the breathtaking roof top deck that awaits you at the top of the stair case. Perfect for outdoor entertaining or your own personal retreat, these features of the home will surly excite you.

 Dark wood cabinets in the kitchen compliment the dark wood tones on the exterior of the home. The polished concrete floor will be a cool oasis on a hot summer day. The large areas of glass on this home are shaded which provide much cooler in-door temperatures in the summer.

Floor Plans

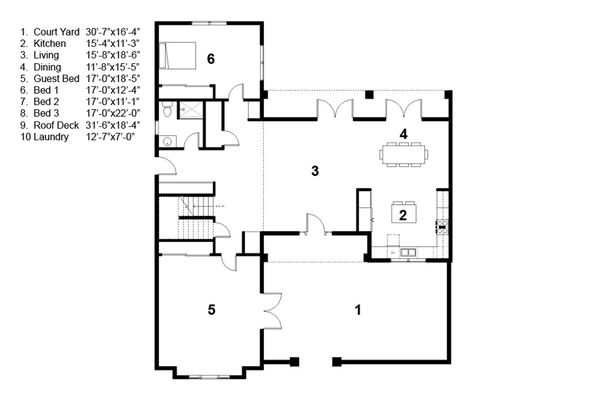

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #497-41

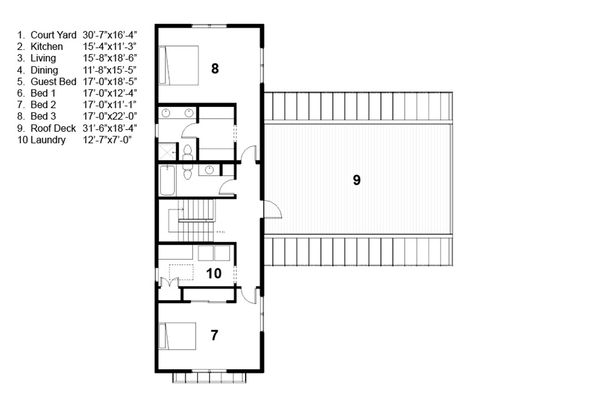

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #497-41

Full Specs & Features


Dimension
Depth : 59' 6"
Height : 23' 3"
Width : 49' 6"
Area
Main Floor : 1739 sq/ft
Patios : 574 sq/ft
Upper Floor : 1044 sq/ft
Ceiling
Main Ceiling : 8' 8"
Upper Ceiling Ft : 8' 1"
Roof
Roof Framing : Stick
Primary Pitch : 6:12
Roof Type : Gable
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2x6

What's Included In This Plan Set


House plans created for Green Living give our customers design options that meet or exceed existing energy standards, while giving options in the realm of cost, style, and environmental commitment. As an example, all Green Living homes are designed to perform 30% to 50% better than prescriptive building code energy performance. The level of home performance depends on the products that you choose.

Each Green Living house plan includes:

  • LEED for Homes Rating System: Guidelines to meet LEED for Homes certification levels of: Certified, Silver, Gold, and Platinum. LEED for Homes is a national, voluntary certification system, developed by national experts and experienced builders, that promotes the design and construction of high-performance green homes and encourages the adoption of sustainable practices by the homebuilding industry. The LEED for Homes Rating System is part of the suite of nationally recognized LEED Green Building Rating Systems administered by USGBC. Like all LEED Rating Systems, it is the market's leadership system, targeting the top 25% of home building practices in terms of environmental responsibility. LEED provides industry resources and tools on how to "green" any new home. With LEED, homebuilders can differentiate their structures as meeting the highest performance measures, and homebuyers can readily identify high quality green homes. LEED provides national consistency in defining the features of a green home, enables builders anywhere in the country to obtain a green rating on their homes, and assures homebuyers of the quality of their purchases, all based on a recognized national brand. Learn more about the LEED® Rating System here.
  • Window shading details: External window shading devices are an effective method for reducing heat gains through windows during Summer. In fact, external shading devices can reduce heat gains by up to 80% if sized and built properly. With this in mind, the founders of Green Living, formerly Free Green, created this page to assist home builders in constructing effective window shading devices. The information we provide includes a zoning map of the United States, zoning charts for proper sizing of shading devices and a variety of shading device styles and materials to suite different tastes and different home designs.
  • General Notes: Typically one sheet of general notes pertinent to the construction of the home
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Wall sections and other construction details: Detailed drawings showing wall connections, from foundation to the roof. wall connections to foundation, window installation, siding installation, stair details, and more.
  • Framing Plans: Drawn to 1/4" scale. The framing layout is intended to be a suggested layout only. Design loads & weather conditions vary by region. As a result the size, spacing & layout of all structural elements in this home design must be approved by a structural engineer and code official based on your specific site location prior to construction.
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc. Note: Most Green Living plans have an electrical plan, however some do not. Please contact us to verify.
