PLAN 1016-94
Key Specs
2785
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 1016-94
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 54'
Height : 32'
Width : 50'
Height : 32'
Width : 50'
Area
Basement Unfinished: 1277 sq/ft height 7' 11"

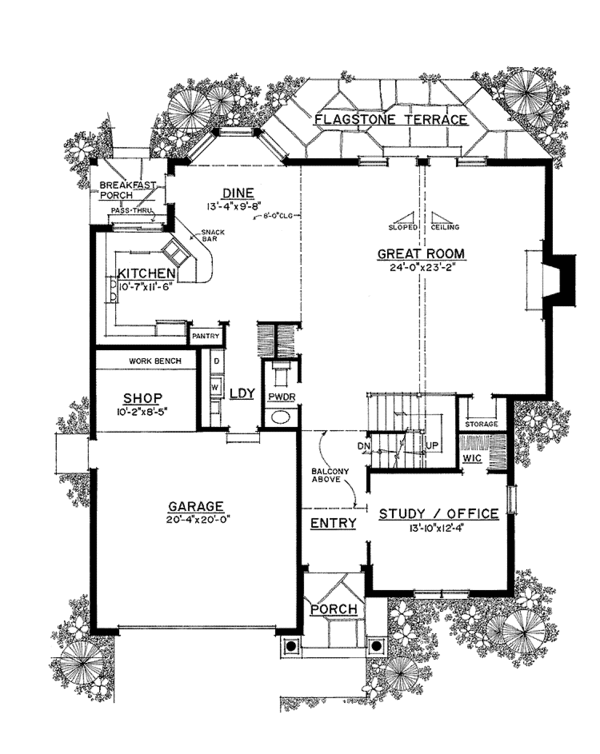

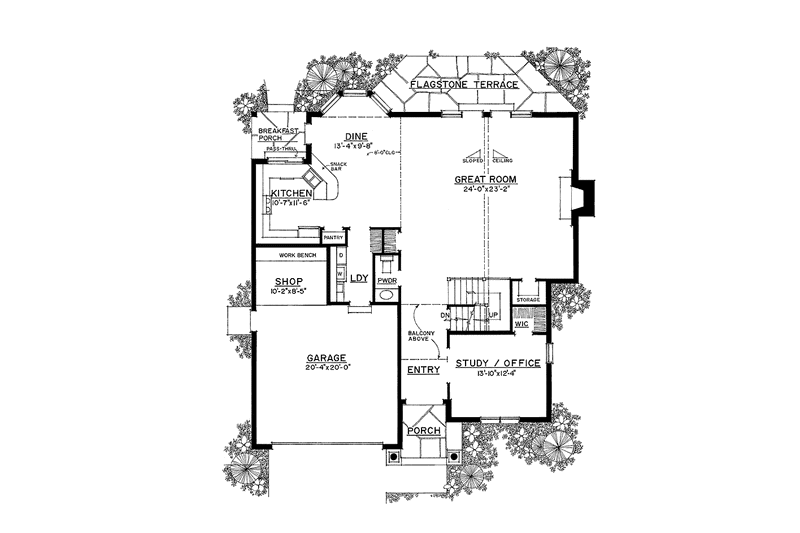

First Floor: 1499 sq/ft height 8'

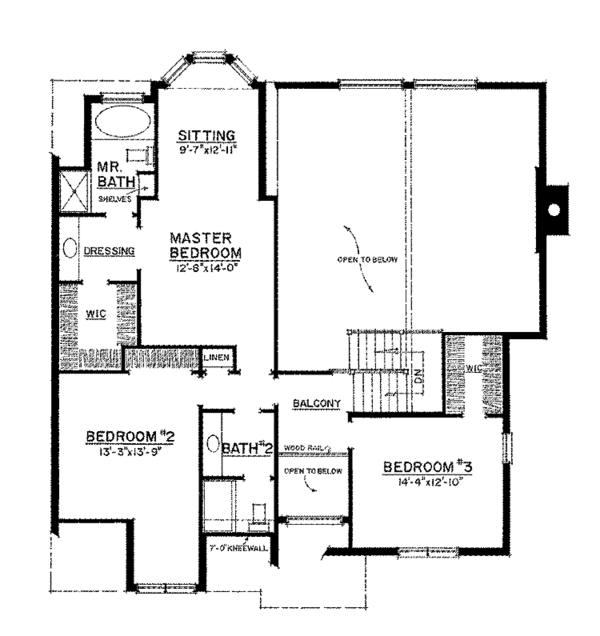

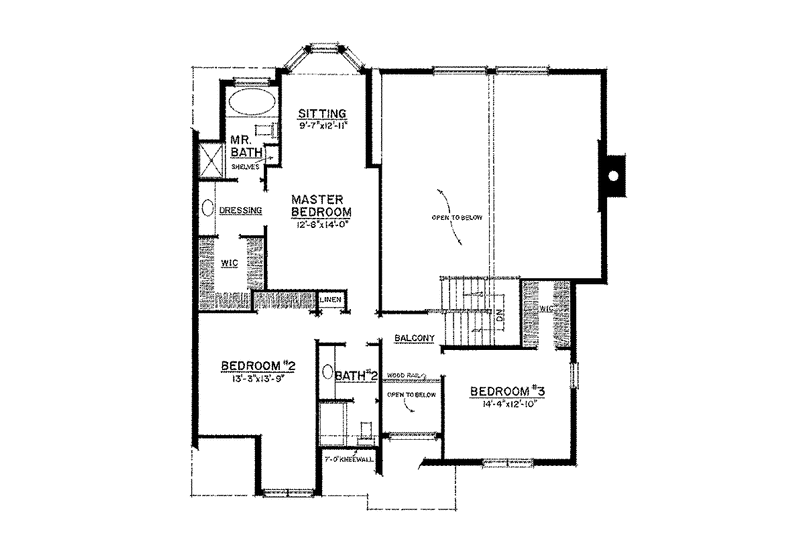

Second Floor: 1286 sq/ft height 8'
First Floor: 1499 sq/ft height 8'
Second Floor: 1286 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Framing : Conventional
Roof Type : Asphalt
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Living Room / Parlor
Walk In Closet
Formal Living Room / Parlor
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Workshop
Great Room Living Room
Workshop
Outdoor Spaces
Courtyard
Rooms
Bedroom 2:
184 sq/ft width 13' 4" x depth 13' 10"
Bedroom 3:
185 sq/ft width 14' 4" x depth 12' 11"
Dining Room:
128 sq/ft width 13' 4" x depth 9' 8"
Entry:
116 sq/ft width 6' 8" x depth 17' 5"
Great Room:
556 sq/ft width 24' x depth 23' 2"
Kitchen:
121 sq/ft width 10' 7" x depth 11' 6"
Master Bedroom:
177 sq/ft width 12' 8" x depth 14'
Parlor:
123 sq/ft width 9' 7" x depth 12' 11"
Study:
171 sq/ft width 13' 11" x depth 12' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-447-0027
Plan Set
| 5 Copy Set : $796.50 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $864.00 |
8 printed plan sets mailed to you. |
| PDF Set : $967.50 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $1017.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Additional Construction Sets : $54.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $35.10 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $90.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets : $54.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
