PLAN #417-620

Key Specs


2792
sq ft

4
Beds

3
Baths

1
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Your Future Dream Home

Floor Plans

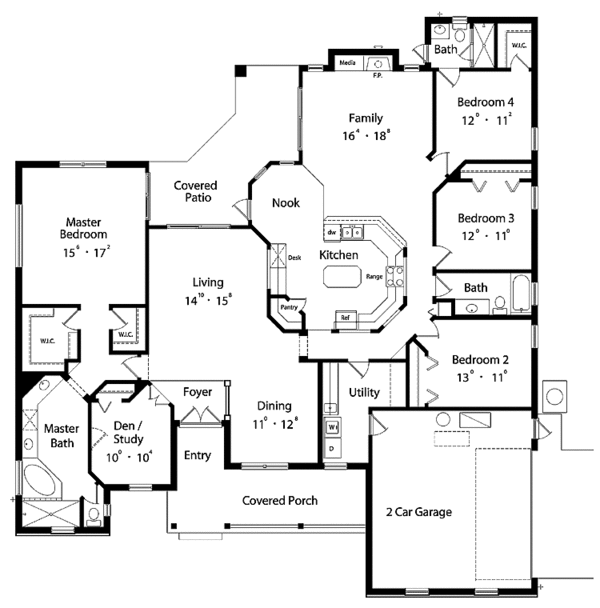

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #417-620

Full Specs & Features


Dimension
Depth : 72'
Height : 21'
Width : 65'
Area
First Floor: 2792 sq/ft height 12'
Bedroom Features
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

143 sq/ft width 13' x depth 11'

Bedroom 3:

132 sq/ft width 12' x depth 11'

Bedroom 4:

134 sq/ft width 12' x depth 11' 2"

Breakfast Room:

81 sq/ft width 9' x depth 9'

Dining Room:

179 sq/ft width 11' x depth 16' 4"

Garage:

440 sq/ft width 20' x depth 22'

Gathering Room:

346 sq/ft width 16' 6" x depth 21'

Kitchen:

230 sq/ft width 16' 10" x depth 13' 8"

Living Room:

281 sq/ft width 14' 10" x depth 19'

Master Bathroom:

158 sq/ft width 8' 4" x depth 19'

Master Bedroom:

266 sq/ft width 15' 6" x depth 17' 2"

Master Closet:

42 sq/ft width 7' x depth 6'

Study:

110 sq/ft width 10' 8" x depth 10' 4"

Utility Room:

133 sq/ft width 10' 6" x depth 12' 8"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
$890.00
5 printed plan sets mailed to you.
PDF Set :
$1160.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1390.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2320.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Block:
$0.00
Block
Wood 2x4:
$450.00
Wood 2x4
Additional Options
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
