PLAN 51-1094
Key Specs
2794
sq ft
2
Beds
2.5
Baths
1
Floors
3
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 51-1094
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 67'
Height : 28'
Width : 86' 8"
Height : 28'
Width : 86' 8"
Area
Basement Unfinished: 1451 sq/ft height 9'
First Floor: 2794 sq/ft height 10'
Garage: 908 sq/ft height 10'
First Floor: 2794 sq/ft height 10'
Garage: 908 sq/ft height 10'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Outdoor Spaces
Covered Front Porch
Deck
Deck
Rooms
Dining Room:
164 sq/ft width 12' 2" x depth 13' 6"
Garage:
947 sq/ft width 36' x depth 26' 4"
Great Room:
358 sq/ft width 21' 6" x depth 16' 8"
Guest Bedroom:
86 sq/ft width 7' x depth 12' 4"
Kitchen:
468 sq/ft width 16' 10" x depth 27' 10"
Master Suite:
252 sq/ft width 14' 2" x depth 17' 10"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.

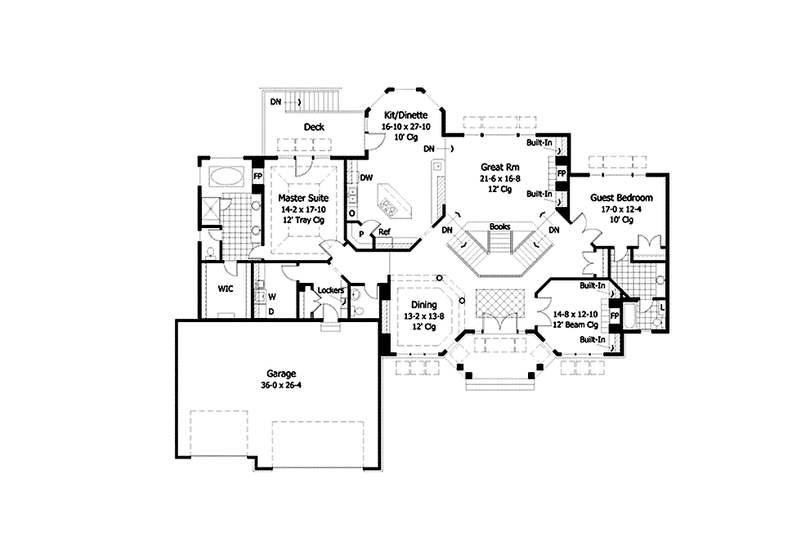

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Questions? Call 1-800-447-0027
Plan Set
| 5 Copy Set : $1278.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $1494.00 |
8 printed plan sets mailed to you. |
| PDF Set : $1516.50 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $1573.20 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
Foundation
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
| Wood 2x4: $225.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $180.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $54.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $35.10 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $90.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets : $45.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
