PLAN #417-544

Key Specs


2800
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Only 50 feet wide, this fabulous design will fit anywhere! From the moment you enter from the foyer, this floor plan explodes in every direction with huge living spaces. Flanking the foyer are the living and dining rooms. Ahead, the visual impact of the staircase is breathtaking. Two-story ceilings adorn the huge family room with double-stacked glass walls. Sunlight floods the breakfast nook, and the kitchen is a gourmet's dream, complete with cooking island and loads of overhead cabinets. Tray ceilings grace the master suite, which also offers a well-designed private bath. Here, a large soaking tub, doorless shower, private toilet chamber and huge walk-in closet are sure to please. Upstairs, two oversized bedrooms and a loft space--perfect for the home computer--share a full bath.

Floor Plans

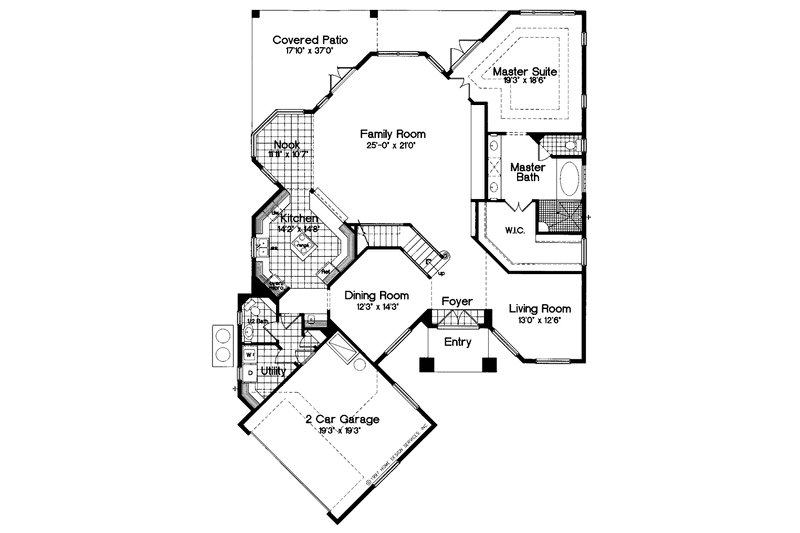

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-544

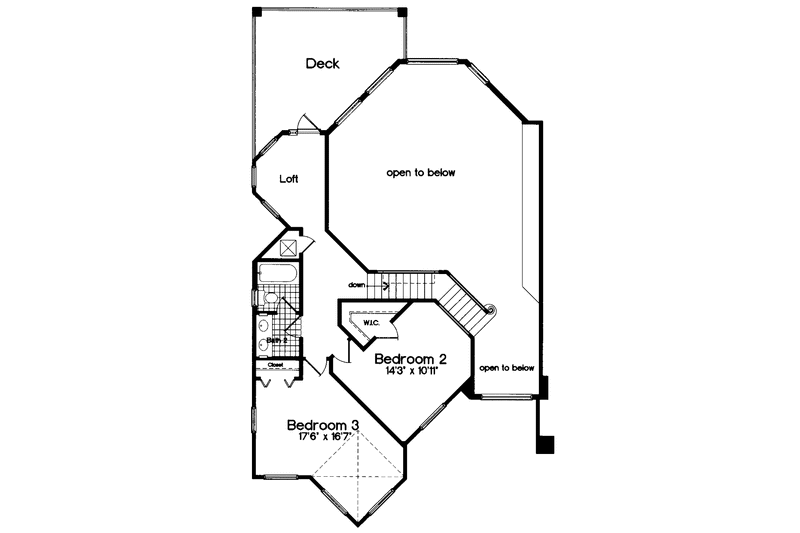

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #417-544

Full Specs & Features


Dimension
Depth : 74'
Height : 29'
Width : 50'
Area
First Floor: 2051 sq/ft height 10'
Second Floor: 749 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Kitchen Features
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Loft
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Balcony
Deck
Rooms

Bathroom 2:

32 sq/ft width 5' x depth 6' 6"

Bathroom 3:

55 sq/ft width 5' x depth 11' 2"

Bedroom 2:

155 sq/ft width 14' 3" x depth 10' 11"

Bedroom 3:

290 sq/ft width 17' 6" x depth 16' 7"

Breakfast Room:

91 sq/ft width 8' 4" x depth 11'

Dining Room:

174 sq/ft width 12' 3" x depth 14' 3"

Foyer:

74 sq/ft width 7' 8" x depth 9' 8"

Garage:

399 sq/ft width 19' 9" x depth 20' 3"

Gathering Room:

525 sq/ft width 25' x depth 21'

Kitchen:

200 sq/ft width 14' 4" x depth 14'

Living Room:

162 sq/ft width 13' x depth 12' 6"

Master Bathroom:

127 sq/ft width 13' 8" x depth 9' 4"

Master Bedroom:

356 sq/ft width 19' 3" x depth 18' 6"

Master Closet:

168 sq/ft width 10' 8" x depth 15' 10"

Porch - Rear:

530 sq/ft width 37' x depth 14' 4"

Utility Room:

74 sq/ft width 8' x depth 9' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

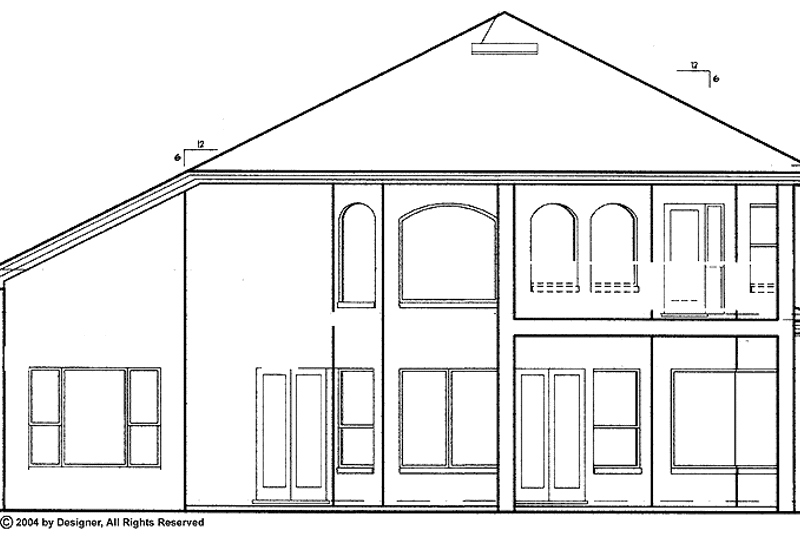

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$801.00
5 printed plan sets mailed to you.
PDF Set :
$1044.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1251.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$2088.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$405.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
40.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
90.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
67.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
405.00
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
