PLAN #51-1075

Key Specs


2802
sq ft

4
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans


Floor Plan - Main Floor Plan

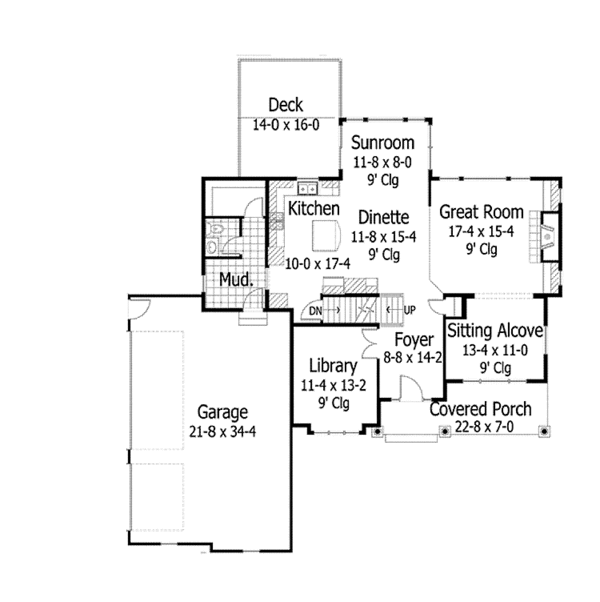

Traditional Floor Plan - Main Floor Plan Plan #51-1075
Floor Plan - Upper Floor Plan

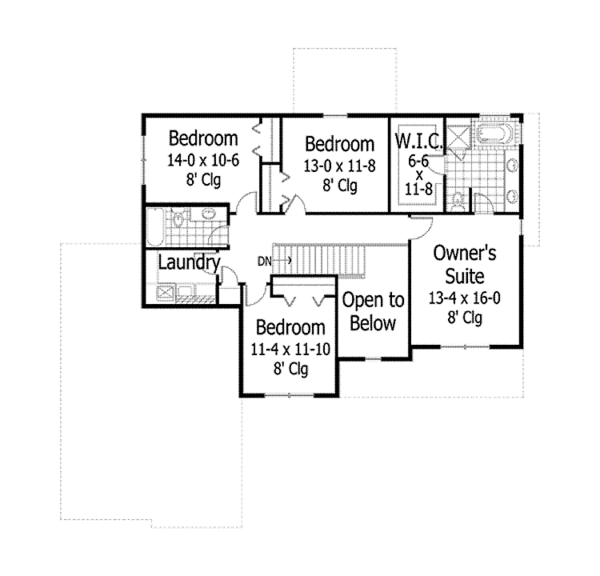

Traditional Floor Plan - Upper Floor Plan Plan #51-1075

Full Specs & Features


Dimension
Depth : 59'
Height : 30'
Width : 59'
Area
First Floor: 1416 sq/ft height 9'
Garage: 722 sq/ft
Second Floor: 1386 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 9:12
Secondary Pitch : 12:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Upstairs Laundry
Sunroom
Outdoor Spaces
Covered Front Porch
Screened Porch
Deck
Rooms

Bedroom 2:

147 sq/ft width 14' x depth 10' 6"

Bedroom 3:

134 sq/ft width 11' 4" x depth 11' 10"

Bedroom 4:

151 sq/ft width 13' x depth 11' 8"

Covered Porch:

158 sq/ft width 22' 8" x depth 7'

Deck:

224 sq/ft width 14' x depth 16'

Dinette:

178 sq/ft width 11' 8" x depth 15' 4"

Foyer:

122 sq/ft width 8' 8" x depth 14' 2"

Garage:

743 sq/ft width 21' 8" x depth 34' 4"

Great Room:

265 sq/ft width 17' 4" x depth 15' 4"

Kitchen:

173 sq/ft width 10' x depth 17' 4"

Library:

149 sq/ft width 11' 4" x depth 13' 2"

Master Suite:

213 sq/ft width 13' 4" x depth 16'

Master Walk-In Closet:

75 sq/ft width 6' 6" x depth 11' 8"

Sitting Area:

146 sq/ft width 13' 4" x depth 11'

Sun Room:

93 sq/ft width 11' 8" x depth 8'

What's Included In This Plan Set


  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

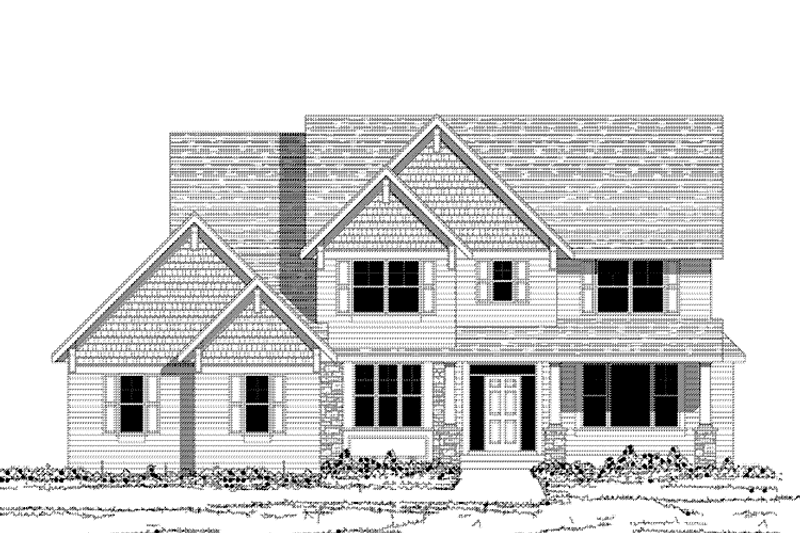

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
