PLAN #316-232

Key Specs


2803
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

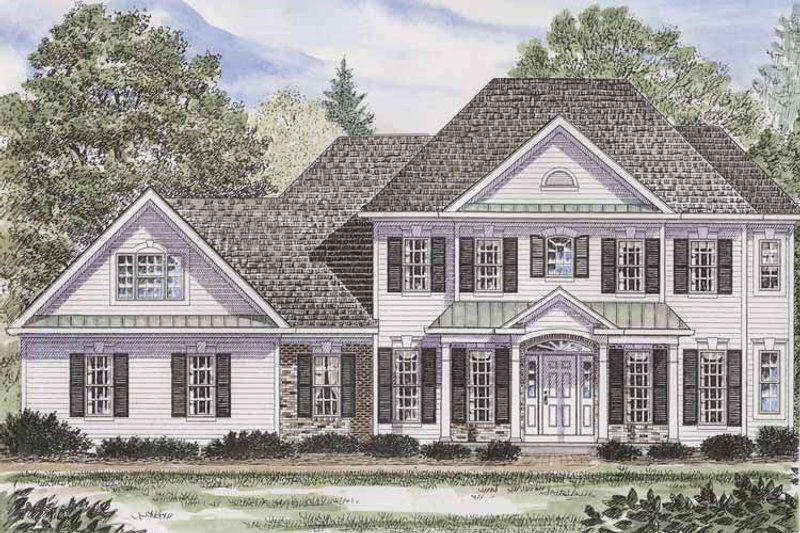

A traditional center entrance colonial incorporating the features needed for today's families. A large covered front porch greet all those who enter. Impressive stepped ceiling foyer opens to a sunken family room. A large kitchen and dinette are off the family room. A study with a full bath is also on the first floor, as are the formal dining room, parlor and laundry room. Upstairs houses 4 bedrooms. The Master suite is large and inviting with a raised master bath and large his and her walk-in closet. There is a sunken bonus room.

Floor Plans


Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Bonus : 402 sq/ft
Garage : 522 sq/ft
Main Floor : 1477 sq/ft
Upper Floor : 1326 sq/ft
Bedroom Features Upstairs Master Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Unfinished Future Space
Open Floor Plan
Outdoor Spaces Covered Front Porch

What's Included In This Plan Set


James Fahy - Irene Melfi

All plans are drawn at ¼” scale or larger, except side and rear elevations are at 1/4, 3/16, or 1/8 scale. Plans include:
  • Artist rendered front elevation cover sheet
  • Exterior elevations of all four sides
  • Foundation and floor plans
  • Cross sections and construction details
  • Roof plan
  • Kitchen and bath cabinet elevations (on select plans)
  • General notes and construction guide specifications
» See important information before purchasing.
Plan Set
5 Copy Set :
$795.00
5 printed plan sets mailed to you.
8 Copy Set :
$855.00
8 printed plan sets mailed to you.
Reproducible Set :
$1065.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
$715.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Roof Framing Detail :
125.00
Get a detailed plan for your roof framing.
