PLAN #1010-165

Key Specs


2815
sq ft

4
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans


Floor Plan - Main Floor Plan

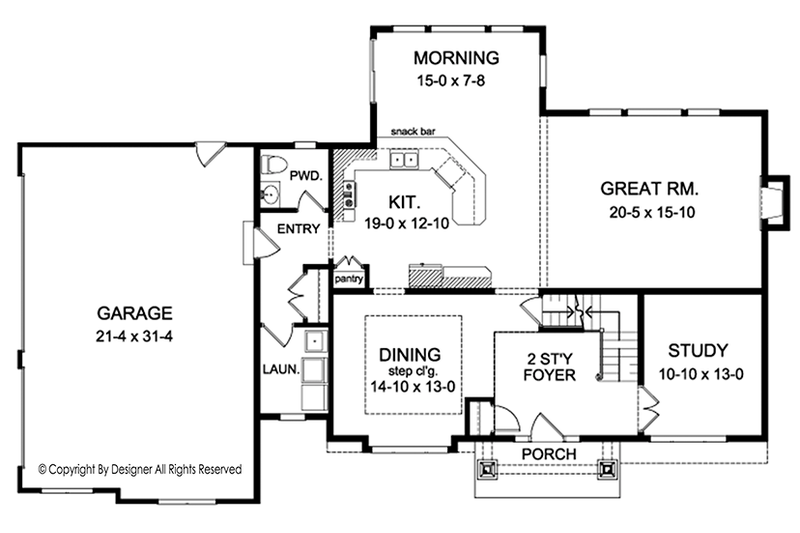

Colonial Floor Plan - Main Floor Plan Plan #1010-165
Floor Plan - Upper Floor Plan

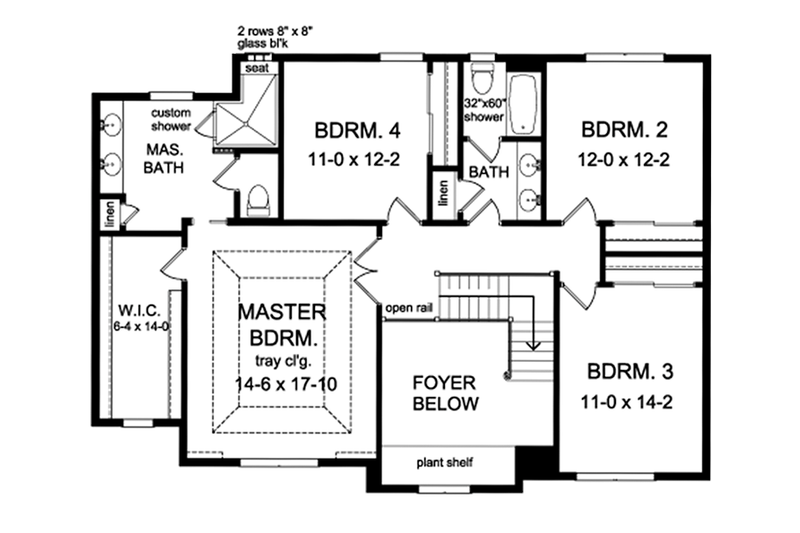

Colonial Floor Plan - Upper Floor Plan Plan #1010-165

Full Specs & Features


Dimension
Depth : 43' 8"
Width : 68' 8"
Area
Basement Unfinished: 1512 sq/ft
First Floor: 1512 sq/ft height 9'
Garage: 668 sq/ft
Second Floor: 1303 sq/ft height 8'
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 10:12
Secondary Pitch : 12:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Loft
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Balcony
Rooms

Bedroom 2:

146 sq/ft width 12' x depth 12' 2"

Bedroom 3:

156 sq/ft width 11' x depth 14' 2"

Bedroom 4:

134 sq/ft width 11' x depth 12' 2"

Covered Front Porch:

60 sq/ft

Dining Room:

193 sq/ft width 14' 10" x depth 13'

Garage:

668 sq/ft width 21' 4" x depth 31' 4"

Great Room:

323 sq/ft width 20' 5" x depth 15' 10"

Kitchen:

244 sq/ft width 19' x depth 12' 10"

Master Closet:

89 sq/ft width 6' 4" x depth 14'

Master Bedroom:

259 sq/ft width 14' 6" x depth 17' 10"

Morning Room:

115 sq/ft width 15' x depth 7' 8"

Study:

141 sq/ft width 10' 10" x depth 13'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Plan: ⅛” scale; this shows roof rafter or trusses and how the roof is framed.
