PLAN 51-1040
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 53' 8"
Height : 31'
Width : 75' 8"
Area
Basement Unfinished: 1985 sq/ft height 8' 2"

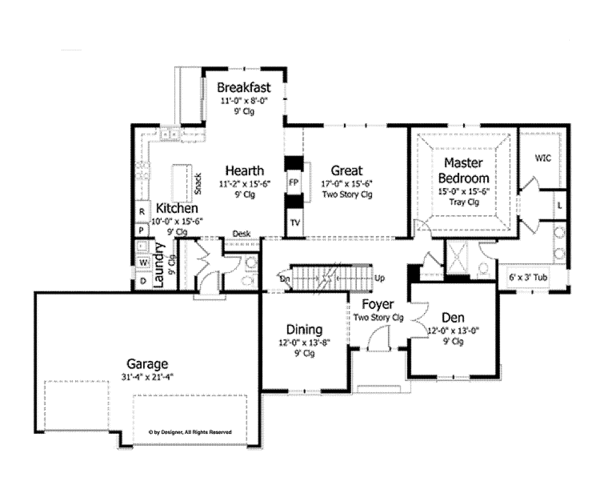

First Floor: 1985 sq/ft height 9'
Garage: 670 sq/ft

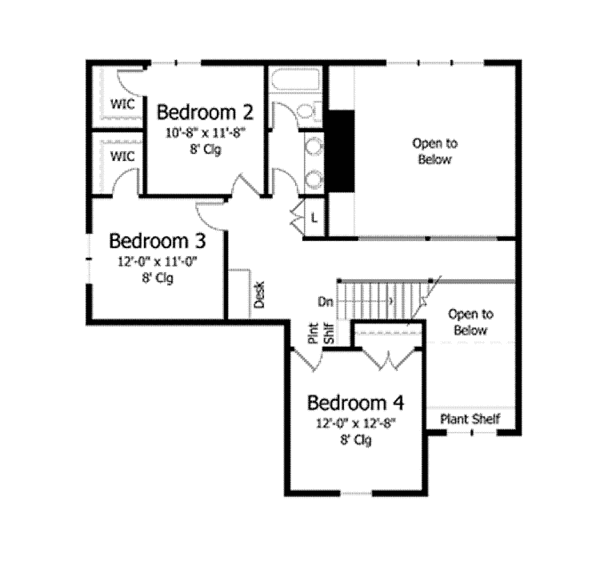

Second Floor: 835 sq/ft height 8'
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
124 sq/ft width 10' 8" x depth 11' 8"
Bedroom 3:
132 sq/ft width 12' x depth 11'
Bedroom 4:
152 sq/ft width 12' x depth 12' 8"
Breakfast:
88 sq/ft width 11' x depth 8'
Den:
156 sq/ft width 12' x depth 13'
Dining Room:
156 sq/ft width 12' x depth 13'
Garage:
668 sq/ft width 31' 4" x depth 21' 4"
Great Room:
263 sq/ft width 17' x depth 15' 6"
Kitchen:
155 sq/ft width 10' x depth 15' 6"
Master Bedroom:
232 sq/ft width 15' x depth 15' 6"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Plan Set
$1327.70
$1552.10
$1575.90
$2103.75
Foundation
$0.00
$0.00
Framing
$0.00
$212.50
Additional Options
$170.00
$51.00
$85.00
$33.15
$85.00
$42.50
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
