Key Specs


2841
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This breathtaking European design is dazzled in French stucco and Tudor detailing. The front porch enters inside to the welcoming gallery. To the right, a quiet study is enhanced by a fireplace and flanking built-ins. The master suite features a large dressing room and a private bath. The great room is central to the plan and is warmed by a second fireplace. The kitchen serves the formal dining room and morning room with ease. Upstairs, two additional family bedrooms share a hall bath. A breezeway connects the main house to the garage.

Floor Plans

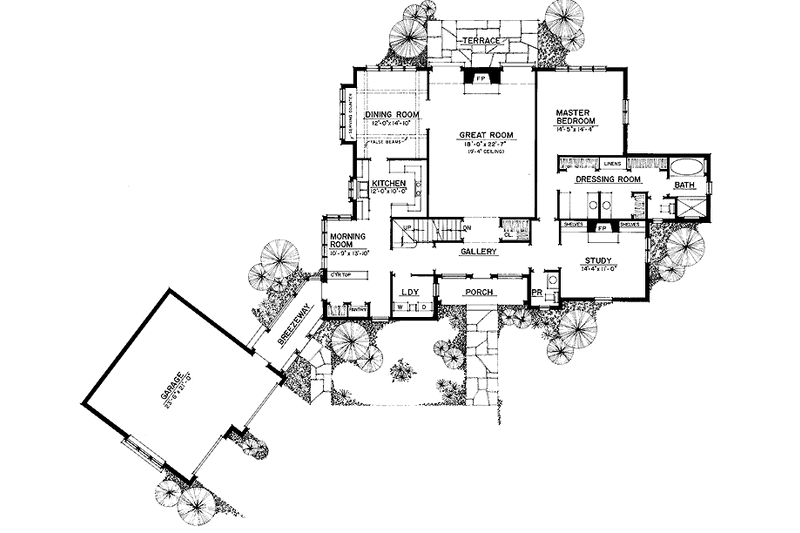

Floor Plan - Main Floor Plan
Tudor Floor Plan - Main Floor Plan Plan #1016-62

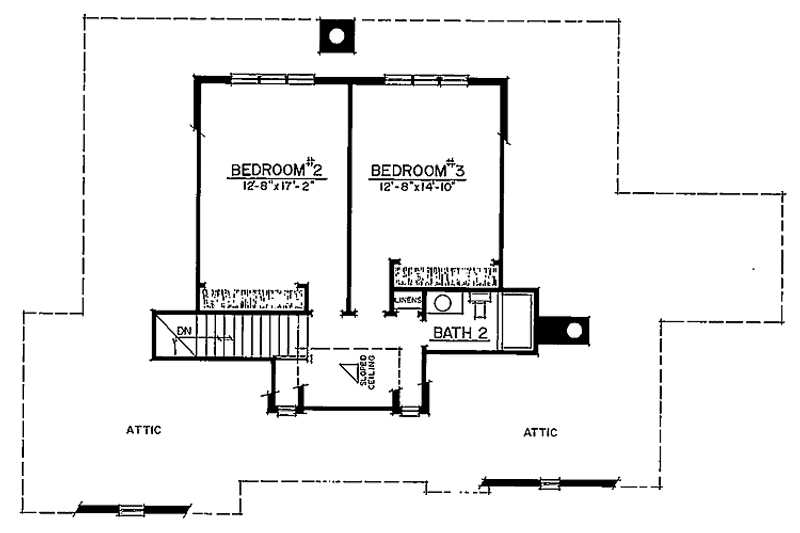

Floor Plan - Upper Floor Plan
Tudor Floor Plan - Upper Floor Plan Plan #1016-62

Full Specs & Features


Dimension
Depth : 71'
Height : 28' 2"
Width : 107'
Area
First Floor: 2122 sq/ft height 9'
Second Floor: 719 sq/ft
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms

Bedroom 2:

217 sq/ft width 12' 8" x depth 17' 2"

Bedroom 3:

187 sq/ft width 12' 8" x depth 14' 10"

Dining Room:

168 sq/ft width 12' x depth 14'

Garage:

493 sq/ft width 23' 6" x depth 21'

Kitchen:

120 sq/ft width 12' x depth 10'

Living Room:

406 sq/ft width 18' x depth 22' 7"

Master Bedroom:

206 sq/ft width 14' 5" x depth 14' 4"

Study:

157 sq/ft width 14' 4" x depth 11'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

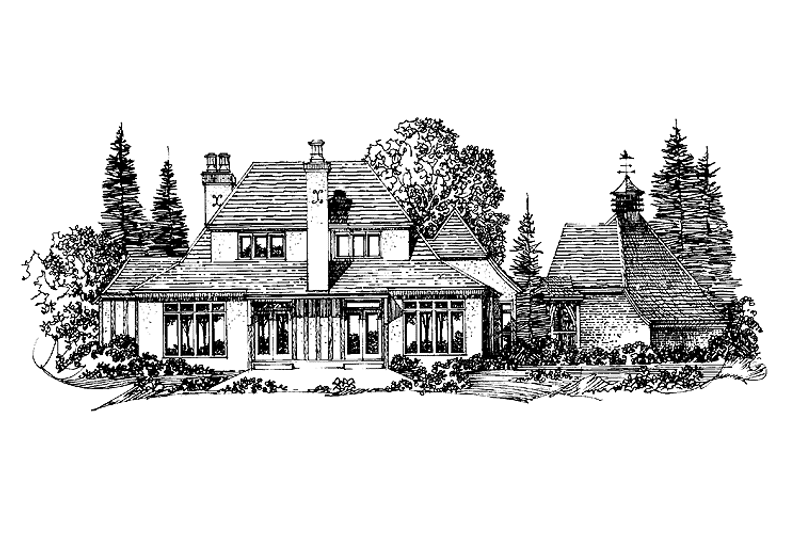

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$885.00
5 printed plan sets mailed to you.
8 Copy Set :
$960.00
8 printed plan sets mailed to you.
PDF Set :
$1075.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1130.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
