PLAN 417-808
Key Specs
2851
sq ft
3
Beds
2.5
Baths
1
Floors
3
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 417-808
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
Stately columns and other grand detailing give this plan the feel of a much larger home. A den and an optional bonus room give it plenty of room for expansion. The foyer, flanked by the dining room and den/study leads to an elegant bayed living room that looks out to the covered porch. The sumptuous master bedroom suite has French doors that lead to the porch and a opulent bath. The large kitchen, breakfast nook and family room are combined to create a terrific family living space. Two more bedrooms and a hall bath complete this wing of the plan.
Full Specs & Features
Dimension
Depth : 91' 4"
Height : 23' 8"
Width : 79' 4"
Height : 23' 8"
Width : 79' 4"
Area

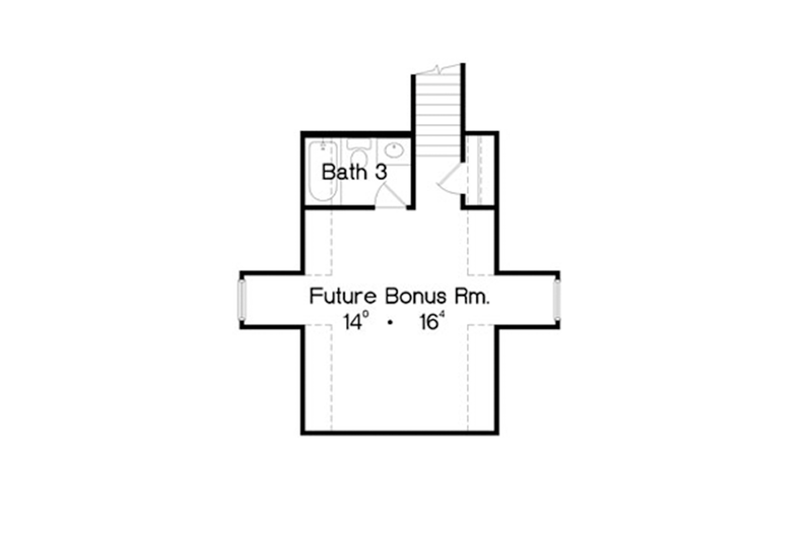

Bonus: 363 sq/ft height 8'

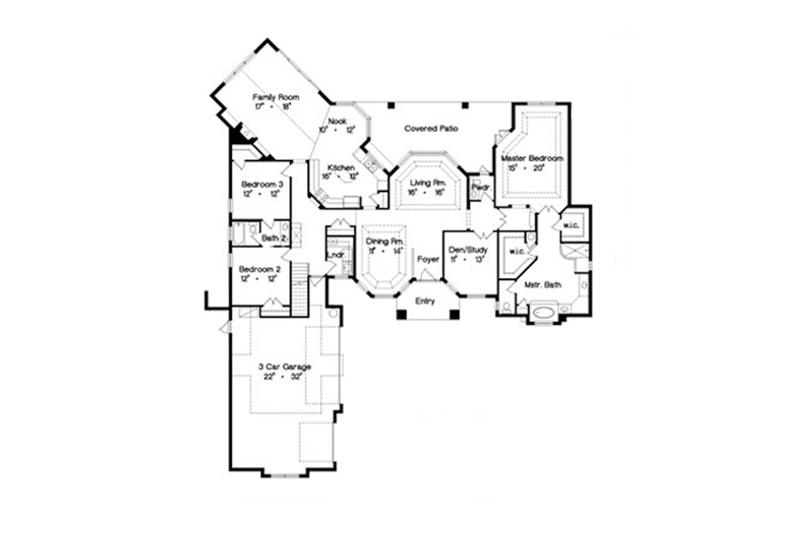

First Floor: 2851 sq/ft
