Key Specs


2859
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

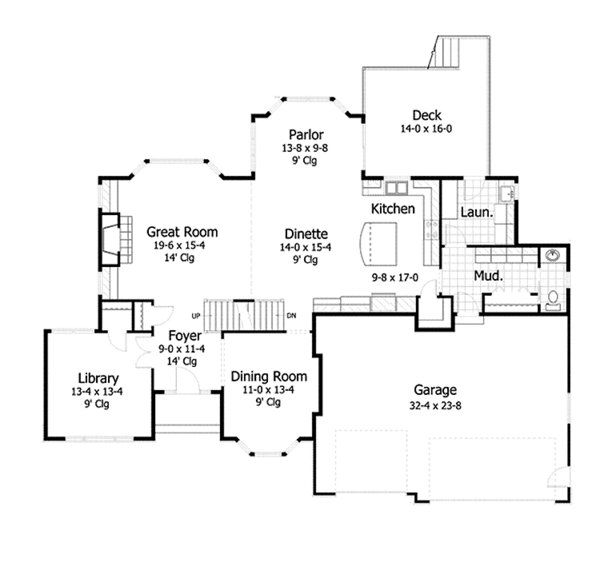

Floor Plan - Main Floor Plan

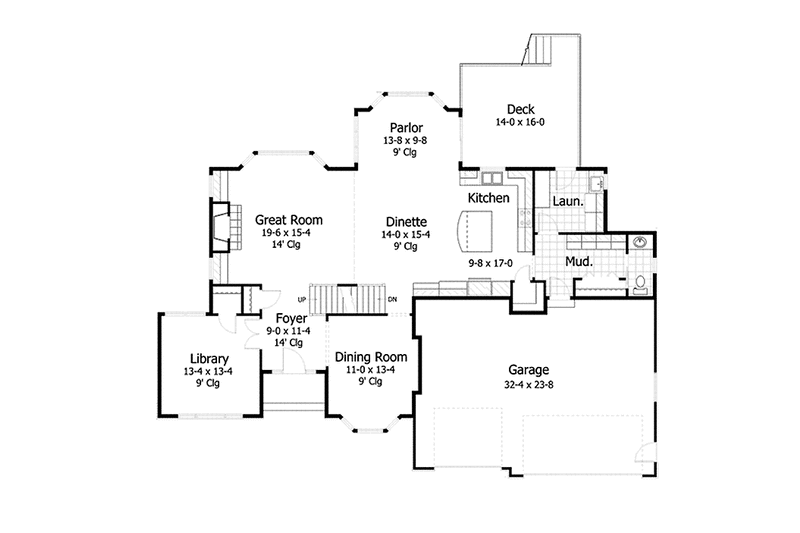

Traditional Floor Plan - Main Floor Plan Plan #51-1127

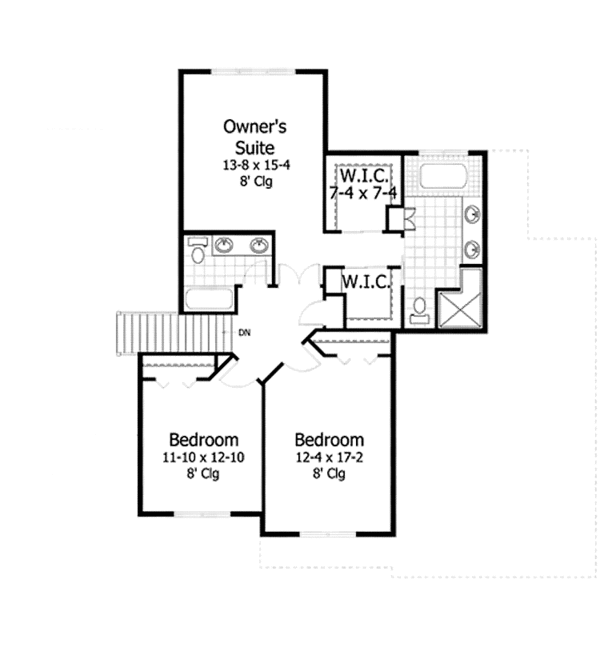

Floor Plan - Upper Floor Plan

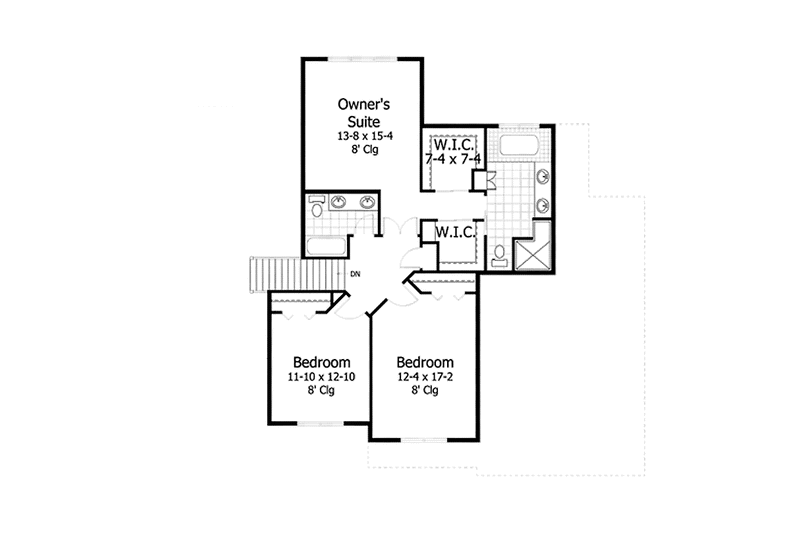

Traditional Floor Plan - Upper Floor Plan Plan #51-1127

Full Specs & Features


Dimension
Depth : 52'
Height : 31'
Width : 67' 8"
Area
First Floor: 1720 sq/ft height 14'
Garage: 761 sq/ft height 8'
Second Floor: 1139 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 9:12
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Kitchen Features
Kitchen Island
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Deck
Rooms

Bedroom 2:

151 sq/ft width 11' 10" x depth 12' 10"

Bedroom 3:

211 sq/ft width 12' 4" x depth 17' 2"

Deck:

224 sq/ft width 14' x depth 16'

Dinette:

214 sq/ft width 14' x depth 15' 4"

Dining Room:

146 sq/ft width 11' x depth 13' 4"

Foyer:

101 sq/ft width 9' x depth 11' 4"

Garage:

765 sq/ft width 32' 4" x depth 23' 8"

Great Room:

298 sq/ft width 19' 6" x depth 15' 4"

Kitchen:

164 sq/ft width 9' 8" x depth 17'

Library:

177 sq/ft width 13' 4" x depth 13' 4"

Master Suite:

209 sq/ft width 13' 8" x depth 15' 4"

Master Walk-In Closet:

53 sq/ft width 7' 4" x depth 7' 4"

Parlor:

132 sq/ft width 13' 8" x depth 9' 8"

What's Included In This Plan Set


  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
