Key Specs


2870
sq ft

3
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


With classic curb appeal and generous interior spaces, this home is a good choice for a family. Inside, the first-floor plan boasts formal living and dining areas on either side of the entry foyer. The U-shaped kitchen opens to the breakfast nook on one side, and on the other to the family room with a snack bar that seats three. Also in this area, a planning desk provides a convenient place to place your phone, tablet, and other gadgets. On the way to the garage, the laundry room boasts plenty of space and a window, and a closet is ready to receive coats and shoes before they enter the house. Relax in the family room, which opens on each side to a veranda. A study on this level could double as a guest room with a nearby full bath. Two family bedrooms on the second floor share a full bath, while the master bedroom includes a thoughtfully appointed bath and large walk-in closet. <P/><BR/>

Floor Plans

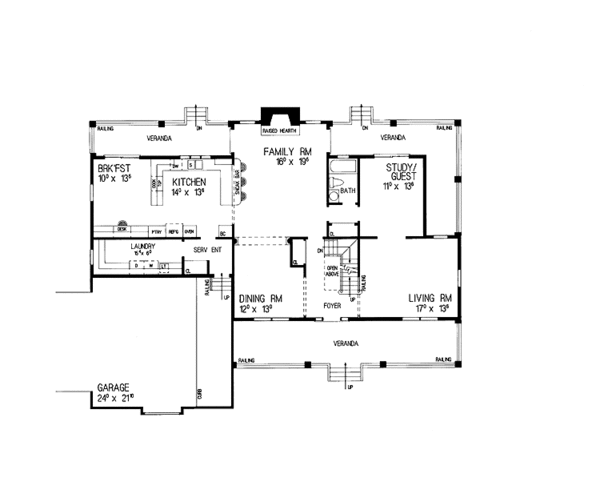

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #72-835

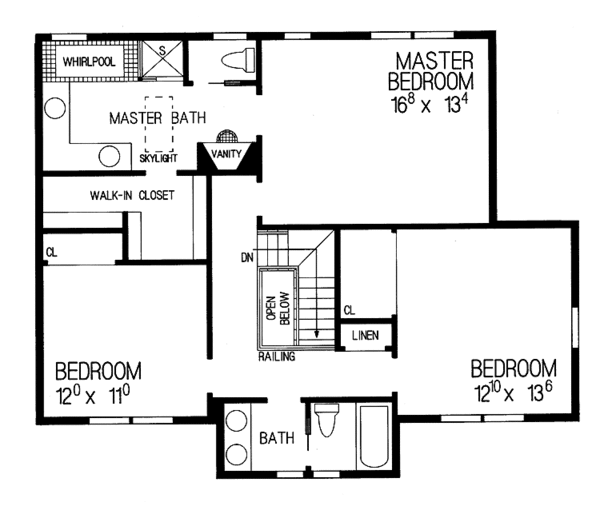

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #72-835

Full Specs & Features


Dimension
Depth : 51' 8"
Height : 32'
Width : 64'
Area
First Floor: 1765 sq/ft height 8'
Second Floor: 1105 sq/ft
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Guest Suite
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Main Floor Laundry
Storage Area
Loft
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Balcony
Rooms

3rd BR Closet:

23 sq/ft width 3' 8" x depth 6' 6"

Basement Foundation:

2051 sq/ft width 62' 2" x depth 33'

Bathroom 2:

57 sq/ft width 12' 4" x depth 4' 8"

Bathroom 3:

39 sq/ft width 5' x depth 7' 10"

Bedroom 2:

138 sq/ft width 12' 7" x depth 11'

Bedroom 2 Closet:

11 sq/ft width 2' x depth 5' 6"

Bedroom 3:

162 sq/ft width 12' x depth 13' 6"

Bedroom 3 Closet:

11 sq/ft width 2' x depth 5' 6"

Bedroom 4 Closet:

9 sq/ft width 2' 1" x depth 4' 8"

Breakfast Room:

135 sq/ft width 10' x depth 13' 6"

Dining Room:

156 sq/ft width 12' x depth 13'

Foyer:

121 sq/ft width 9' x depth 13' 6"

Garage:

523 sq/ft width 24' x depth 21' 10"

Hall Closet:

9 sq/ft width 2' 1" x depth 4' 6"

Kitchen:

189 sq/ft width 14' x depth 13' 6"

Laundry Room:

91 sq/ft width 15' 4" x depth 6'

Living Room:

229 sq/ft width 17' x depth 13' 6"

Master Bathroom:

145 sq/ft width 15' 4" x depth 9' 6"

Master Bedroom:

222 sq/ft width 16' 8" x depth 13' 4"

Master Closet:

70 sq/ft width 11' 8" x depth 6'

Porch - Front:

299 sq/ft width 7' 8" x depth 39'

Porch - Rear:

145 sq/ft width 6' x depth 24' 4"

Porch - Right:

255 sq/ft width 6' x depth 42' 7"

Slab Foundation:

550 sq/ft width 24' 8" x depth 22' 4"

Study:

148 sq/ft width 11' x depth 13' 6"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
