The Craftsman charm of this ranch home is sure to charm the neighbors no matter where it's built. Graceful columns, shingle siding and expansive windows are just some of the features that will catch your eye and keep you looking. Inside, expansive ceilings, an easily flowing floor plan and a wall of windows all work together to create extra volume within a cozy living space. The master suite is tucked behind the garage and includes a spacious walk-in closet, a Jacuzzi tub and dual sinks. The second bedroom is located on the opposite side of the home for maximum privacy, while the den nearby can also double as the second bedroom. Finally, a three-stall, side-load garage with extra storage completes this home, making it a perfect home for many types of families.

Floor Plans

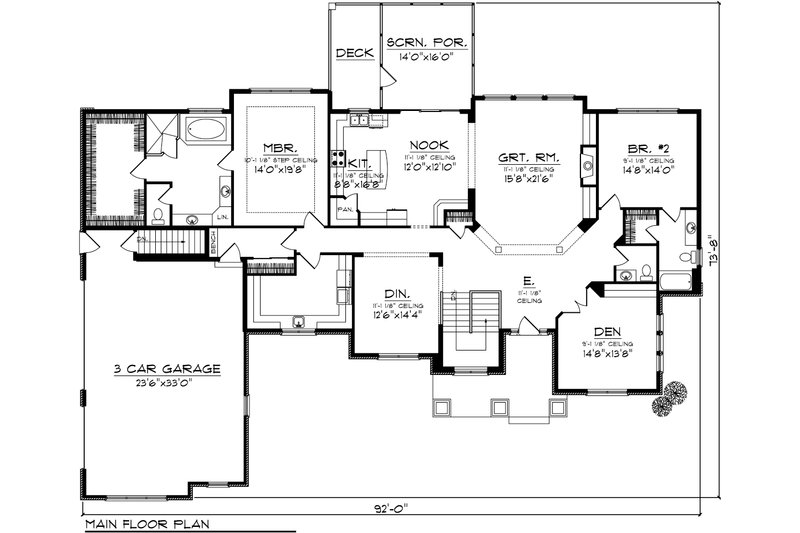

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #70-1036

Full Specs & Features

Depth : 73' 8"
Height : 31' 6"
Width : 92'
First Floor: 2988 sq/ft
Garage: 878 sq/ft
Ceiling Details : Great Room, Foyer, Dining, Kitchen, and Nook 11'Master Bedroom 10' Step
Main Ceiling : 9'
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47
Exterior Wall Framing
Exterior Wall Finish : Shake / Brick / Sigin
Framing : 2 x 6
Insulation : R-19
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Screened Porch

Basement Foundation:

5581 sq/ft width 92' x depth 60' 8"

Bathroom 2:

68 sq/ft width 5' 8" x depth 12'

Bedroom 2:

205 sq/ft width 14' 8" x depth 14'

Bedroom 2 Closet:

23 sq/ft width 4' 8" x depth 5'


122 sq/ft width 7' 8" x depth 16'


200 sq/ft width 14' 8" x depth 13' 8"

Dining Room:

179 sq/ft width 12' 6" x depth 14' 4"


88 sq/ft width 8' x depth 11'


775 sq/ft width 23' 6" x depth 33'

Great Room:

336 sq/ft width 15' 8" x depth 21' 6"

Half Bathroom:

31 sq/ft width 6' x depth 5' 4"


144 sq/ft width 8' 8" x depth 16' 8"

Laundry Room:

172 sq/ft width 15' 8" x depth 11'

Master Bathroom:

212 sq/ft width 12' 8" x depth 16' 9"

Master Bedroom:

275 sq/ft width 14' x depth 19' 8"

Master Closet:

145 sq/ft width 8' 8" x depth 16' 9"


153 sq/ft width 12' x depth 12' 10"

Porch - Front:

246 sq/ft width 20' x depth 12' 4"

Porch - Screened:

224 sq/ft width 14' x depth 16'

What's Included In This Plan Set

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
