PLAN 70-996
Key Specs
3002
sq ft
4
Beds
3.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 70-996
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Height : 30' 7"
Width : 86'
Garage: 1175 sq/ft

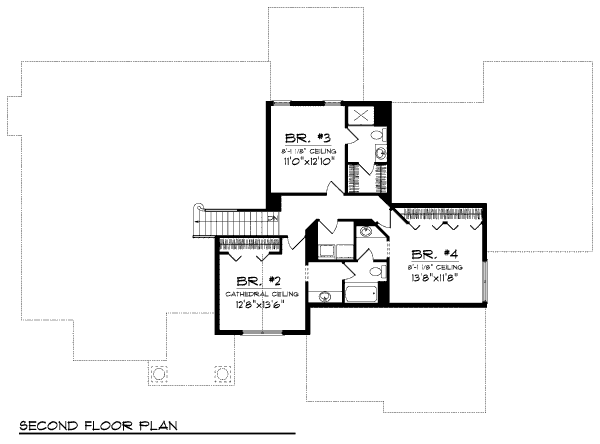

Second Floor: 880 sq/ft height 8'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof Framing : Truss
Roof Load : 47 psf
Secondary Pitch : 12:12
Framing : 2"x6"
Insulation : Exterior R-19, Ceiling R-38
Split Bedrooms
Walk In Closet
Great Room Living Room
Mud Room
Storage Area
Sunroom
Upstairs Laundry
Workshop
Side Entry Garage
Split Garage
Grill Deck Sundeck
Screened Porch
Bath 2:
width 62' 10" x depth 6'
Bath 3:
width 55' 10" x depth 8' 4"
Bedroom 2:
171 sq/ft width 12' 8" x depth 13' 6"
Bedroom 2:
width 12' 8" x depth 13' 6"
Bedroom 2 Closet:
width 80' 10" x depth 2'
Bedroom 3:
141 sq/ft width 11' x depth 12' 10"
Bedroom 3:
width 11' x depth 12' 10"
Bedroom 3 Closet:
width 5' 10" x depth 4' 2"
Bedroom 4:
159 sq/ft width 13' 8" x depth 11' 8"
Bedroom 4:
width 13' 8" x depth 11' 8"
Bedroom 4 Closet:
width 13' x depth 2'
Breakfast Nook:
180 sq/ft width 12' x depth 15'
Deck:
270 sq/ft width 18' x depth 15'
Deck:
width 18' x depth 13' 10"
Den:
149 sq/ft width 12' 8" x depth 11' 10"
Dining:
width 12' x depth 13' 8"
Foyer:
width 7' 8" x depth 10' 8"
Garage:
748 sq/ft width 25' 8" x depth 29' 2"
Garage:
width 25' 8" x depth 25' 8"
Garage Two:
419 sq/ft width 15' 4" x depth 27' 4"
Great Room:
360 sq/ft width 17' 2" x depth 21'
Hall Closet:
width 12' 10" x depth 5' 4"
Kitchen:
165 sq/ft width 11' x depth 15'
Laundry 2nd level:
width 5' 4" x depth 5' 8"
Master Bath:
width 13' 6" x depth 11' 10"
Master Bath Water Closet:
width 3' x depth 6' 6"
Master Bathroom:
width 13' 6" x depth 11' 10"
Master Bedroom:
275 sq/ft width 18' 2" x depth 15' 2"
Master Closet:
width 92' 6" x depth 11' 4"
Master Walk-In Closet:
width 9' 6" x depth 11' 4"
Mud Room:
width 8' 2" x depth 15'
Porch - Screened:
182 sq/ft width 14' x depth 13' 10"
Porch Front:
width 12' 8" x depth 10' 4"
Powder Room:
width 5' x depth 6'
What's Included In This Plan Set
- Cover sheet with front rendering

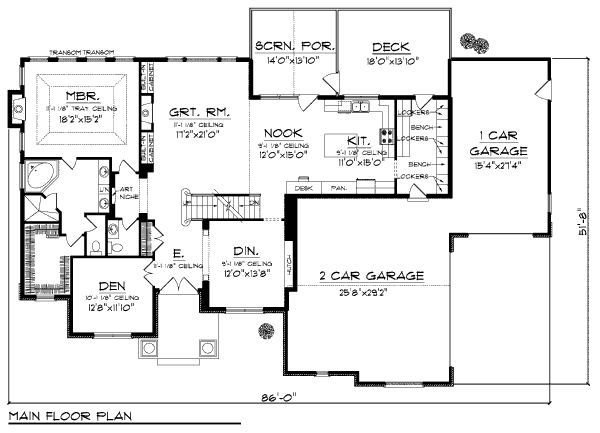

- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
| 5 Copy Set : $1112.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $1158.00 |
8 printed plan sets mailed to you. |
| PDF Set : $1397.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $1397.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $2224.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $335.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $335.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Options
| Right-Reading Reverse : $335.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $65.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets : $55.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
