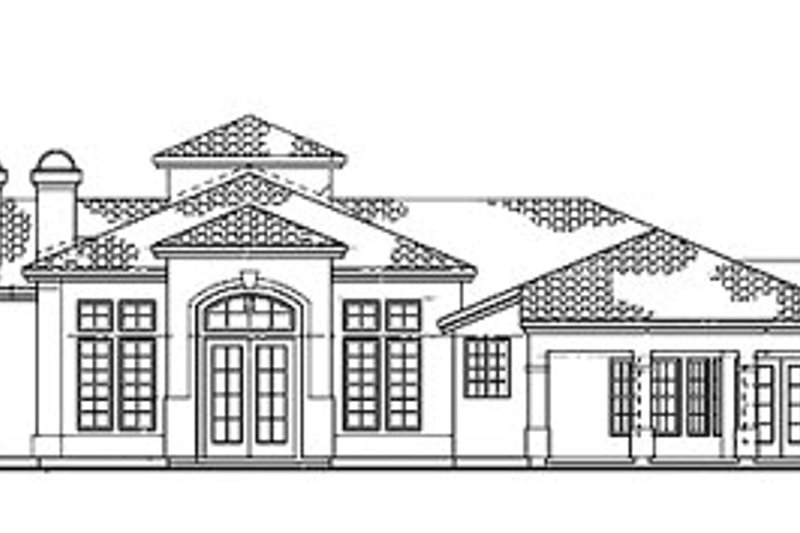

Mediterranean Exterior - Rear Elevation Plan #72-173

Select Plan Set Options

What's included?

	Right-Reading Reverse $157.50 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $54.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License $463.50 Additional Use License.
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $180.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List $76.50 A list of building supplies needed to construct the infrastructure of your new house.
	Mirror Reversed Sets $54.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License $926.10 Unlimited Use License.

Subtotal

NOW $1018.71

You save $113.19

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 72-173

Key Specs

3034
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Main Floor Plan

Reverse

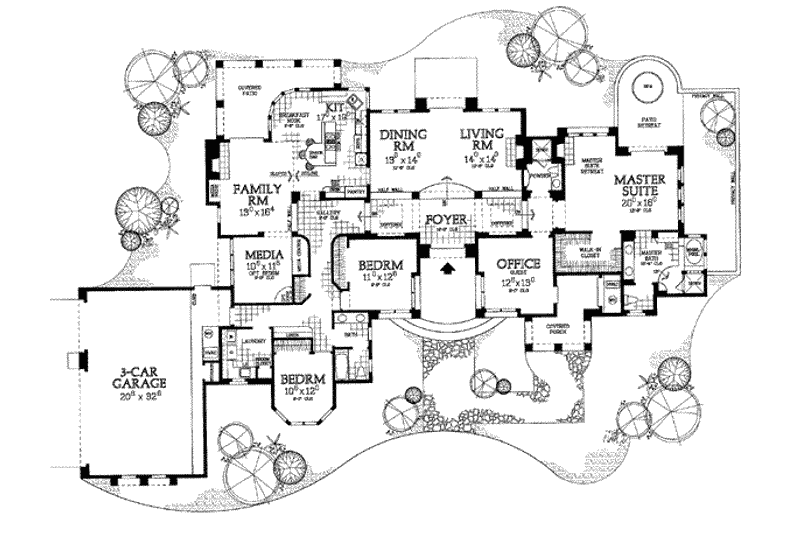

Mediterranean Floor Plan - Main Floor Plan Plan #72-173

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 74' 6"
Height : 23'
Width : 112'

Area

First Floor: 3034 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : 2"x6"

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Master Sitting Area
Media Room

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch

Rooms

3rd BR Closet:

13 sq/ft width 2' x depth 6' 6"

Bathroom 2:

70 sq/ft width 6' x depth 11' 9"

Bedroom 2:

137 sq/ft width 11' x depth 12' 6"

Bedroom 2 Closet:

20 sq/ft width 2' 4" x depth 9'

Bedroom 3:

126 sq/ft width 10' 6" x depth 12'

Bedroom 3 Closet:

20 sq/ft width 2' 4" x depth 9'

Dining Room:

182 sq/ft width 13' x depth 14'

Foyer:

86 sq/ft width 10' 10" x depth 8'

Game Room:

120 sq/ft width 10' 6" x depth 11' 6"

Garage:

666 sq/ft width 20' 6" x depth 32' 6"

Garage Storage:

8 sq/ft width 2' 7" x depth 3' 5"

Gathering Room:

212 sq/ft width 13' x depth 16' 4"

Hall Bathroom:

60 sq/ft width 6' 8" x depth 9'

Hall Closet:

11 sq/ft width 2' 6" x depth 4' 6"

Kitchen:

323 sq/ft width 17' x depth 19'

Laundry Room:

78 sq/ft width 9' x depth 8' 8"

Living Room:

196 sq/ft width 14' x depth 14'

Master Bathroom:

178 sq/ft width 14' 3" x depth 12' 6"

Master Bedroom:

320 sq/ft width 20' x depth 16'

Master Closet:

78 sq/ft width 11' 10" x depth 6' 8"

Porch - Front:

70 sq/ft width 11' 9" x depth 6'

Walk-In Closet:

78 sq/ft width 6' 8" x depth 11' 9"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
