PLAN 1107-52
Photographs may show modified designs.
- Jump to:
- All (11)
- Floor plans (1)
Get Personalized Help
Key Specs
3045
sq ft
4
Beds
3
Baths
1
Floors
3
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBFALL
Use Code CTBFALL
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1107-52
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Timeless Charm Meets Modern Living Experience the perfect blend of traditional style and modern functionality in this home, a thoughtfully designed 3,045 sqft barndominium that offers comfort, space, and character in every detail. Wrapped in a stunning 2,010 sqft covered porch, this home invites you to enjoy indoor-outdoor living like never before. Main Residence Inside, an open-concept floor plan creates a welcoming flow between the kitchen, dining, and living areas — ideal for entertaining or everyday family life. The kitchen is the heart of the home, featuring a large center island, ample cabinetry, and a walk-in pantry to meet all your storage needs. The master suite is a private retreat, complete with a spa-inspired bathroom offering a separate soaking tub and shower, double vanity, and a massive walk-in closet. With 4 spacious bedrooms and 3 full bathrooms, there's room for everyone. Two of the secondary bedrooms share a convenient Jack and Jill bath, each with private sink areas for added comfort and privacy. A dedicated home office provides a quiet space for work or study, while a large mudroom and laundry room, thoughtfully connected, add practicality and ease to your daily routines. Garage & Exterior The 1,275 sqft 3-bay garage offers ample space for vehicles, storage, or hobbies, making it as functional as it is versatile. Whether you’re enjoying your morning coffee on the porch or watching the sunset, the wrap-around porch offers the perfect setting to relax and unwind. This design is more than a home — it’s a lifestyle built around comfort, function, and timeless beauty. Perfect for families, entertainers, or anyone seeking traditional elegance with modern amenities.
Floor Plans

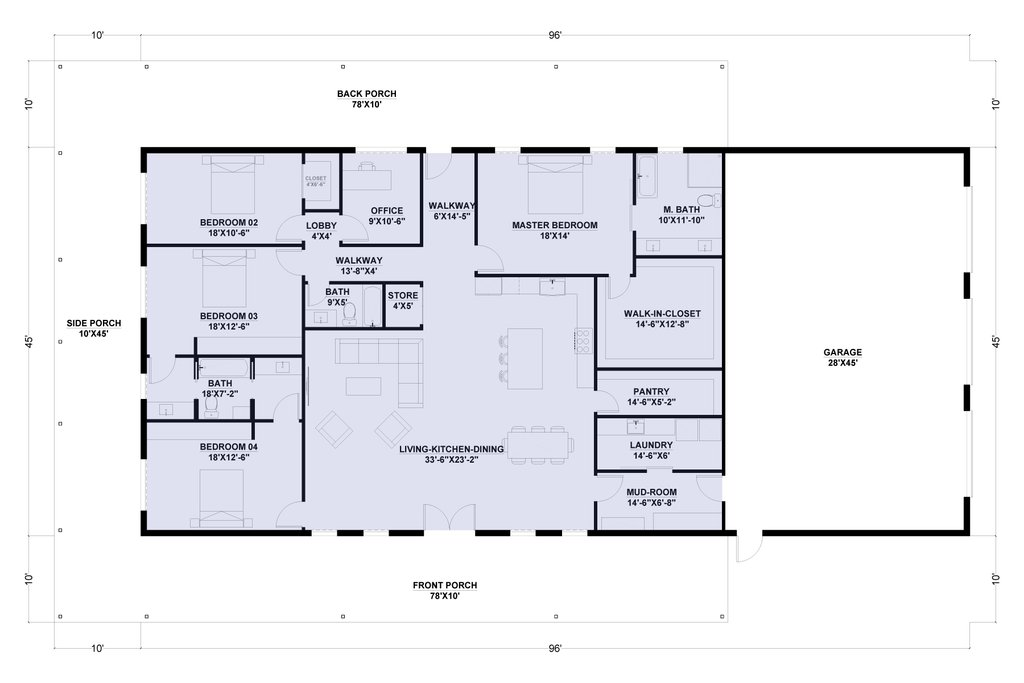

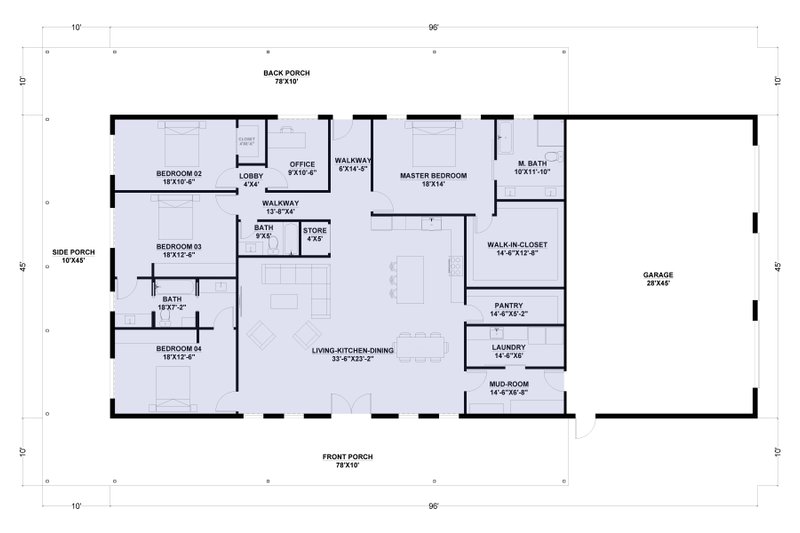

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 45'
Height : 23' 3"
Width : 96'
Area
Garage : 1275 sq/ft
Main Floor : 3045 sq/ft
Porch : 2010 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Eave height - 12' / Peak height - 23'3"
Main Ceiling : 9'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : PBR
Exterior Wall Framing
Exterior Wall Finish : PBR
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Mud Room
Garage Features
Oversized Garage
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
More
Economical To Build
Jack & Jill Bath
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-800-447-0027
Plan Set
PDF Master Set:
$1550.00
$1550.00
An unlocked, modifiable PDF file
5 Copy and PDF Set:
$1750.00
$1750.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$2350.00
$2350.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$3100.00
$3100.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$250.00
$250.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$350.00
$350.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Metal (PEMB):
$325.00
$325.00
Designed for use as a PEMB (Pre-Engineered Metal Building) using Z8 metal framing with insulated panels on the exterior and 2x4" studs for the interior.
Wood 2x4:
$325.00
$325.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$245.00
$245.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$100.00
$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License:
$750.00
$750.00
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$395.00
$395.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
