PLAN #497-15

Key Specs


3047
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description



 This three bedroom, two and a half bathroom house plan is a masterful example of rural or suburban Farmhouse living. From its simple style, to its signature front porch, this house plan exudes the concepts of practicality, purity, and endurance. Once inside you will see this plans ample kitchen and working spaces, as well as its open living and family rooms. Upstairs you will find great living-quarters with a luxurious master bed & bath space, and ample rooms for two to three children. Outside you will find a connected garage with space for two cars, or an ample workshop.

 The first floor of this home is perfect for family meals or entertaining parties with family, friends, and neighbors. This plan seamlessly mixes a formal dining space, with a classic working farmhouse kitchen, and a modern open living and family room space. There is access from either the front porch or, the connected garage for those cold winter nights.

 The focus of this second floor is the Master Suite (a.k.a Mom and Dad’s Room). A retreat from the children, this suite comes with a separate shower and bath, his and her sinks, and a full walk-in closet. What better location could you imagine to wind down from a long day at work or with the kids? The remainder of the floor is dedicated to an efficient plan allowing for two ample bedrooms, one shared bathroom, and an upstairs laundry unit.



Floor Plans

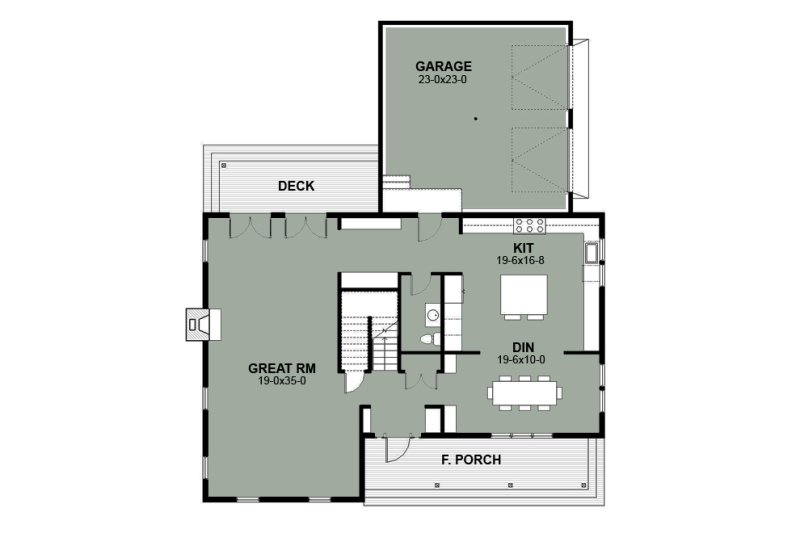

Floor Plan - Main Floor Plan
Farmhouse Floor Plan - Main Floor Plan Plan #497-15

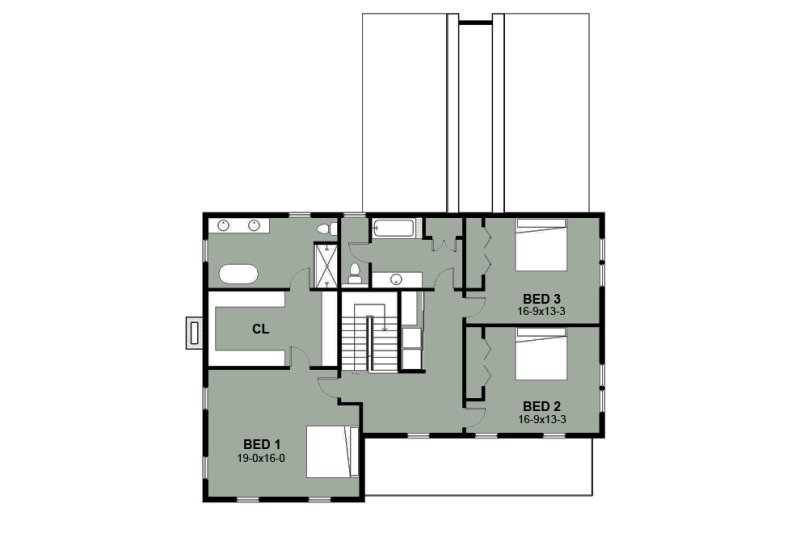

Floor Plan - Upper Floor Plan
Farmhouse Floor Plan - Upper Floor Plan Plan #497-15

Full Specs & Features


Dimension
Depth : 60'
Height : 30'
Width : 50'
Area
Main Floor : 1487 sq/ft
Upper Floor : 1560 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 12:12
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Mud Room
Family Room Keeping Room
Great Room Living Room
Upstairs Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing

What's Included In This Plan Set


House plans created for Green Living give our customers design options that meet or exceed existing energy standards, while giving options in the realm of cost, style, and environmental commitment. As an example, all Green Living homes are designed to perform 30% to 50% better than prescriptive building code energy performance. The level of home performance depends on the products that you choose.

Each Green Living house plan includes:

  • LEED for Homes Rating System: Guidelines to meet LEED for Homes certification levels of: Certified, Silver, Gold, and Platinum. LEED for Homes is a national, voluntary certification system, developed by national experts and experienced builders, that promotes the design and construction of high-performance green homes and encourages the adoption of sustainable practices by the homebuilding industry. The LEED for Homes Rating System is part of the suite of nationally recognized LEED Green Building Rating Systems administered by USGBC. Like all LEED Rating Systems, it is the market's leadership system, targeting the top 25% of home building practices in terms of environmental responsibility. LEED provides industry resources and tools on how to "green" any new home. With LEED, homebuilders can differentiate their structures as meeting the highest performance measures, and homebuyers can readily identify high quality green homes. LEED provides national consistency in defining the features of a green home, enables builders anywhere in the country to obtain a green rating on their homes, and assures homebuyers of the quality of their purchases, all based on a recognized national brand. Learn more about the LEED® Rating System here.
  • Window shading details: External window shading devices are an effective method for reducing heat gains through windows during Summer. In fact, external shading devices can reduce heat gains by up to 80% if sized and built properly. With this in mind, the founders of Green Living, formerly Free Green, created this page to assist home builders in constructing effective window shading devices. The information we provide includes a zoning map of the United States, zoning charts for proper sizing of shading devices and a variety of shading device styles and materials to suite different tastes and different home designs.
  • General Notes: Typically one sheet of general notes pertinent to the construction of the home
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Wall sections and other construction details: Detailed drawings showing wall connections, from foundation to the roof. wall connections to foundation, window installation, siding installation, stair details, and more.
  • Framing Plans: Drawn to 1/4" scale. The framing layout is intended to be a suggested layout only. Design loads & weather conditions vary by region. As a result the size, spacing & layout of all structural elements in this home design must be approved by a structural engineer and code official based on your specific site location prior to construction.
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc. Note: Most Green Living plans have an electrical plan, however some do not. Please contact us to verify.
» See important information before purchasing.
Plan Set
PDF Set :
$980.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1080.00
5 printed plan sets mailed to you.
CAD Set :
$1960.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set :
$880.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$350.00
Ideal for level lot, lower level of home partially or fully underground.
Slab:
$350.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
