Key Specs


3054
sq ft

4
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Natural light pours in through skylights and plenty of large windows to illuminate a floor plan designed for formal entertaining, family togetherness and quiet solitude. The living room stretches from the front covered courtyard to a sunny flower porch at the back of the plan. Perfectly placed for both formal and informal meals, the bay-windowed dining room also adjoins the flower porch. Amenities in the living areas include two fireplaces, a built-in desk in the breakfast room and wet bars in the study and the family room. The four-bedroom sleeping area includes a sumptuous master suite with His and Hers bathrooms and walk-in closets, a whirlpool tub and a large dressing room. <P/><BR/>

Floor Plans

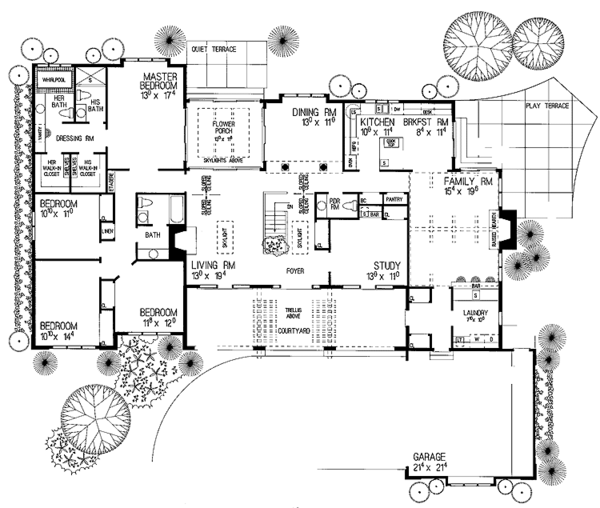

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #72-856

Full Specs & Features


Dimension
Depth : 70' 2"
Height : 21'
Width : 85' 8"
Area
First Floor: 3054 sq/ft height 8'
Roof
Roof Framing : Conventional
Primary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Outdoor Spaces
Courtyard
Rooms

Dining Room:

143 sq/ft width 11' x depth 13'

Gathering Room:

298 sq/ft width 19' 6" x depth 15' 4"

Living Room:

251 sq/ft width 19' 4" x depth 13'

Master Bedroom:

225 sq/ft width 17' 4" x depth 13'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
