PLAN #417-356

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

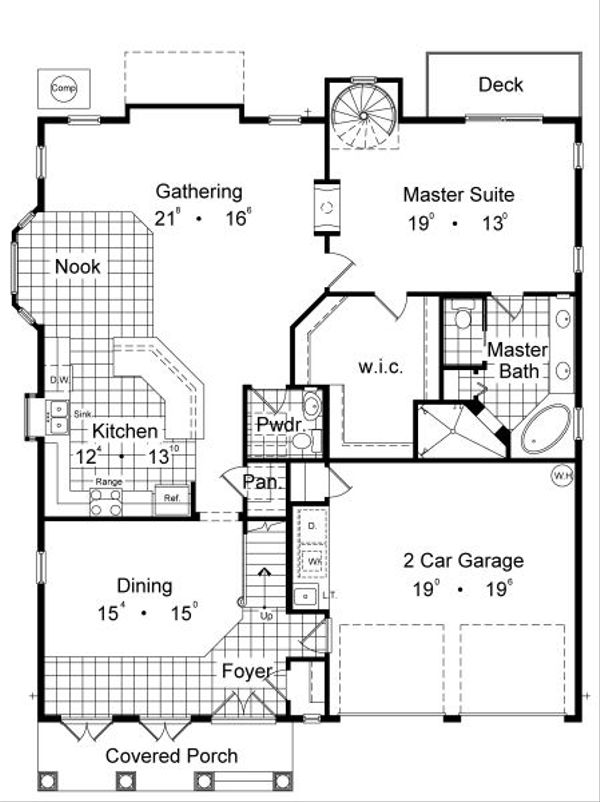

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #417-356

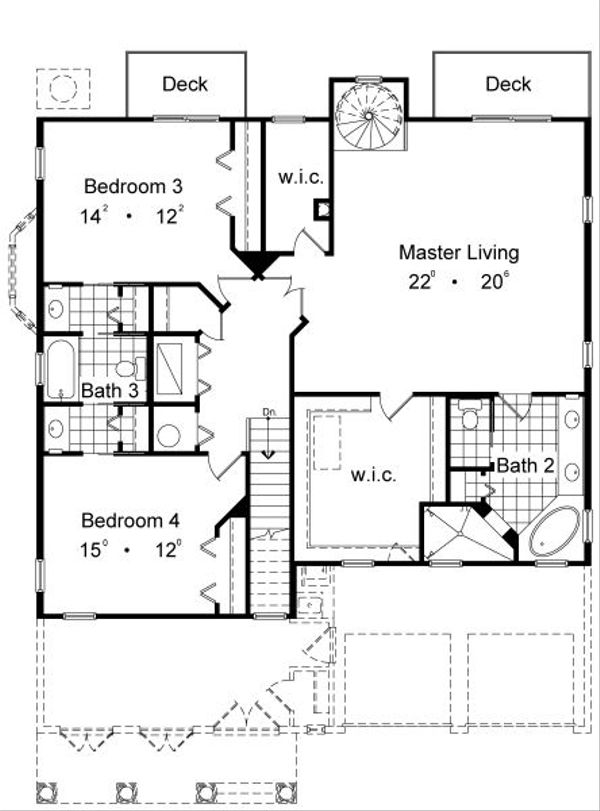

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #417-356

Full Specs & Features

Dimension Depth : 52'
Height : 52'
Width : 42'
Area Garage : 422 sq/ft
Main Floor : 1596 sq/ft
Porch : 270 sq/ft
Upper Floor : 1491 sq/ft
Ceiling Main Ceiling : 10'
Upper Ceiling Ft : 10'
Roof Primary Pitch : 4:12
Exterior Wall Framing Framing : 2"x6"
Bedroom 2 451 sq/ft width 22' x depth 20' 6"
Bedroom 3 172 sq/ft width 14' 2" x depth 12' 2"
Bedroom 4 180 sq/ft width 15' x depth 12'
Dining Room 229 sq/ft width 15' 4" x depth 15'
Family Room 357 sq/ft width 21' 8" x depth 16' 6"
Garage 370 sq/ft width 19' x depth 19' 6"
Kitchen 170 sq/ft width 12' 4" x depth 13' 10"
Master Bathroom 164 sq/ft width 13' 2" x depth 12' 6"
Master Bedroom 247 sq/ft width 19' x depth 13'
Nook 94 sq/ft width 10' 6" x depth 9'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
