PLAN #47-751

Key Specs


3089
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

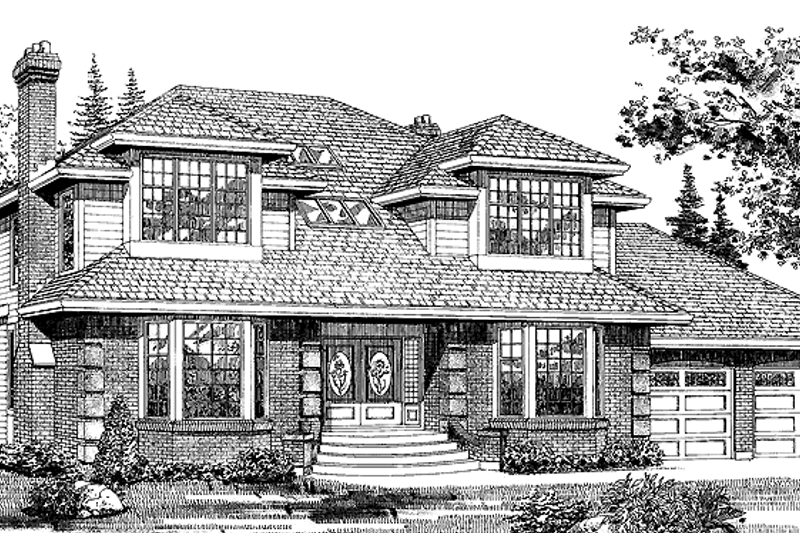

Glass-filled, hipped dormers and corner quoins lend this four-bedroom home great curb appeal. Skylights illuminate the vaulted foyer and curved staircase. The formal dining room has a niche for a buffet and French doors leading to the rear deck. Decorative columns help define the living room, which offers a fireplace. A quiet den provides a bay window and a nearby full bath. The gourmet kitchen overlooks the family room, which has a hearth. A luxurious master suite and three secondary bedrooms fill the second floor. <P/><BR/>

Floor Plans

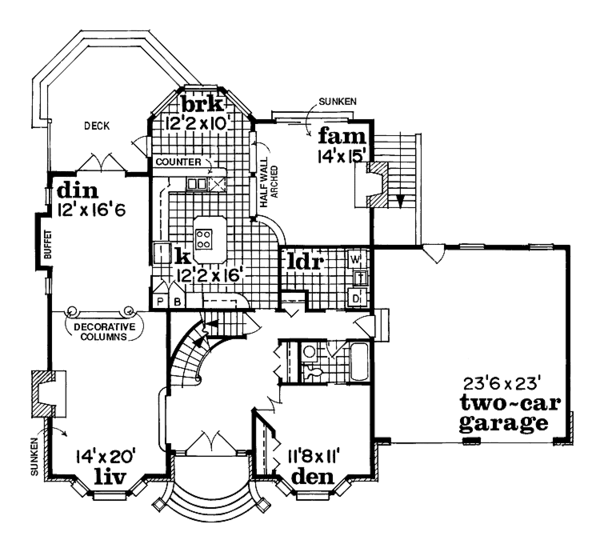

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #47-751

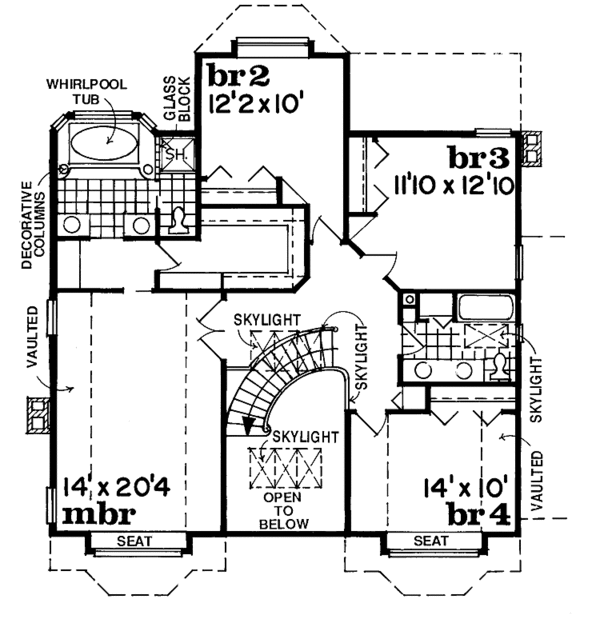

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #47-751

Full Specs & Features


Dimension
Depth : 50' 4"
Height : 29'
Width : 64' 4"
Area
First Floor: 1725 sq/ft height 8'
Second Floor: 1364 sq/ft
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms

3rd BR Closet:

13 sq/ft width 2' x depth 6' 6"

Basement Foundation:

2046 sq/ft width 40' 8" x depth 50' 4"

Bedroom 2:

121 sq/ft width 12' 2" x depth 10'

Bedroom 2 Closet:

13 sq/ft width 6' 6" x depth 2'

Bedroom 3:

151 sq/ft width 11' 10" x depth 12' 10"

Bedroom 3 Closet:

13 sq/ft width 6' 6" x depth 2'

Bedroom 4:

140 sq/ft width 14' x depth 10'

Bedroom 4 Closet:

14 sq/ft width 7' 4" x depth 2'

Breakfast Room:

121 sq/ft width 12' 2" x depth 10'

Crawlspace Foundation:

2046 sq/ft width 40' 8" x depth 50' 4"

Den/Office or Bedroom 1:

128 sq/ft width 11' 8" x depth 11'

Dining Room:

198 sq/ft width 12' x depth 16' 6"

Foyer:

79 sq/ft width 10' x depth 7' 11"

Garage:

540 sq/ft width 23' 6" x depth 23'

Gathering Room:

210 sq/ft width 14' x depth 15'

Hall Bathroom:

73 sq/ft width 9' 8" x depth 7' 7"

Hall Closet:

10 sq/ft width 2' x depth 5'

Kitchen:

194 sq/ft width 12' 2" x depth 16'

Living Room:

280 sq/ft width 14' x depth 20'

Master Bathroom:

118 sq/ft width 11' 10" x depth 10'

Master Bedroom:

284 sq/ft width 14' x depth 20' 4"

Master Closet:

58 sq/ft width 8' 10" x depth 6' 8"

Powder Room:

42 sq/ft width 8' 7" x depth 5'

Utility Room:

79 sq/ft width 10' 11" x depth 7' 3"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$1029.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1134.00
5 printed plan sets mailed to you.
8 Copy Set :
$1239.00
8 printed plan sets mailed to you.
Reproducible Set :
$1239.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2058.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$275.00
Ideal for sloping lot, lower level of home partially underground.
Slab:
$275.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Material List :
85.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.
