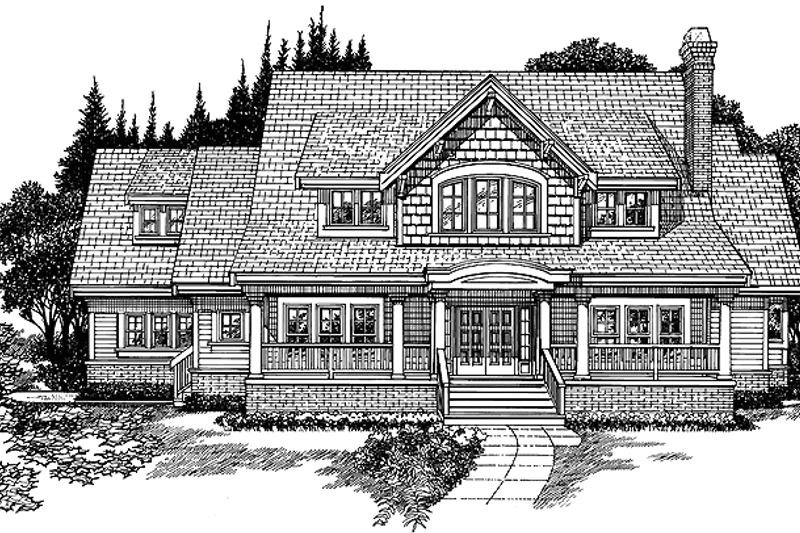

Dream House Plan - Craftsman Exterior - Front Elevation Plan #47-948

Dream House Plan - Craftsman Exterior - Rear Elevation Plan #47-948

Dream House Plan - Craftsman Floor Plan - Main Floor Plan #47-948

Dream House Plan - Craftsman Floor Plan - Upper Floor Plan #47-948

Dream House Plan - Craftsman Floor Plan - Other Floor Plan #47-948

Jump to:
All (5)
Exterior (2)
Floor plans (3)

Get Personalized Help

Home > Style > Craftsman House Plans

Key Specs

3090
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$165.75
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$420.75
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$127.50
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$335.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$127.50
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$72.25
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets$0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License	$845.75
	Allows you to build this home as many times as you want.

Subtotal

NOW $1154.54

You save $203.74 (15% savings)

Sale ends soon!

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 47-948

Home > Style > Craftsman House Plans

Key Specs

3090
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

An estate home with country characteristics, this home features divided lights, understated trim, a veranda and a prominent gable. The great room is at the center of the plan and contains a gas fireplace and built-in media center. Nearby are a breakfast room with double doors to the deck and a U-shaped kitchen with pass-through bar to the breakfast room. Formal areas include a living room (or den) with beam ceiling and fireplace and a dining room with tray ceiling. The master suite is on the first floor for privacy. It is graced by a walk-in closet, sitting bay and private bath with large shower, whirlpool tub, and compartmented stool. Three bedrooms are on the second floor. Bedroom 3 has a private bath. A bonus room over the garage can become a full guest suite or office space. Plans include details for both a basement and a crawlspace foundation.

Floor Plans

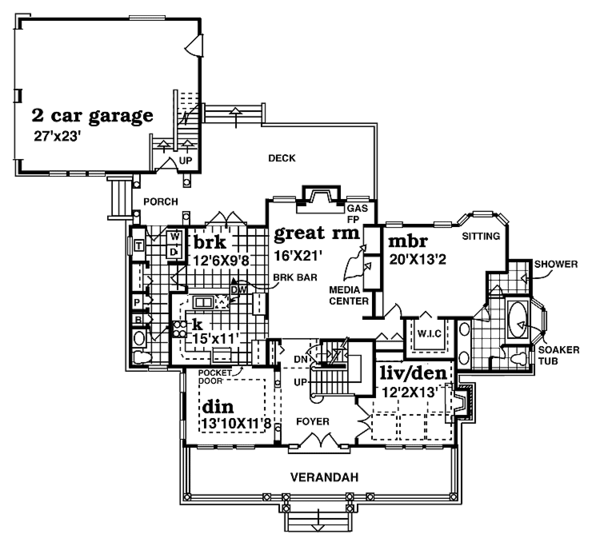

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

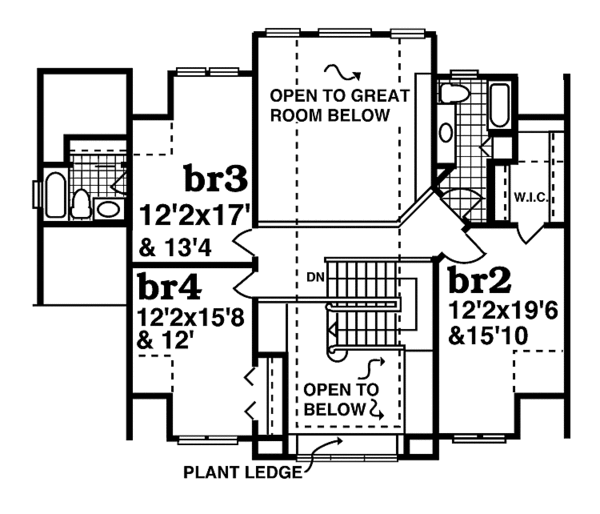

Floor Plan - Upper Floor

Reverse

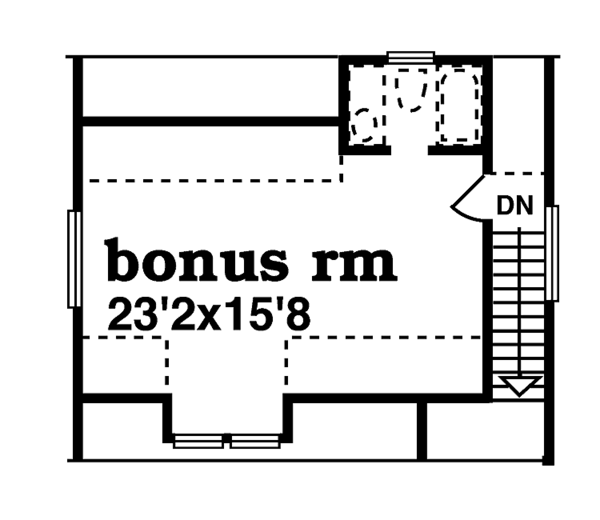

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 78' 4"

Height : 31'

Width : 82' 2"

Area

Bonus: 456 sq/ft

First Floor: 1979 sq/ft height 9'

Second Floor: 1111 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Split Bedrooms

Additional Room Features

Great Room Living Room

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

3rd BR Closet:

12 sq/ft width 2' x depth 6' 2"

Basement Foundation:

2566 sq/ft width 40' x depth 64' 2"

Bathroom 2:

49 sq/ft width 5' 8" x depth 8' 8"

Bedroom 2 Closet:

61 sq/ft width 9' 6" x depth 6' 6"

Bedroom 3 Closet:

61 sq/ft width 9' 6" x depth 6' 6"

Bedroom 4 Closet:

14 sq/ft width 7' x depth 2'

Bonus Room - Finished:

362 sq/ft width 15' 8" x depth 23' 2"

Breakfast Room:

120 sq/ft width 9' 8" x depth 12' 6"

Crawlspace Foundation:

2566 sq/ft width 40' x depth 64' 2"

Dining Room:

161 sq/ft width 11' 8" x depth 13' 10"

Foyer:

73 sq/ft width 6' 6" x depth 11' 4"

Garage:

621 sq/ft width 23' x depth 27'

Gathering Room:

336 sq/ft width 21' x depth 16'

Hall Bathroom:

100 sq/ft width 13' 2" x depth 7' 8"

Hall Closet:

7 sq/ft width 3' 8" x depth 2'

Kitchen:

165 sq/ft width 11' x depth 15'

Living Room:

158 sq/ft width 13' x depth 12' 2"

Master Bathroom:

206 sq/ft width 17' x depth 12' 2"

Master Bedroom:

263 sq/ft width 13' 2" x depth 20'

Master Closet:

44 sq/ft width 6' 2" x depth 7' 2"

Porch - Front:

420 sq/ft width 10' x depth 42'

Porch - Rear:

768 sq/ft width 8' x depth 96'

Powder Room:

32 sq/ft width 5' 6" x depth 5' 10"

Utility Room:

131 sq/ft width 15' 2" x depth 8' 8"

What's Included In This Plan Set

See a sample plan set

Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
