Key Specs


3114
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Craftsman features adorn the front facade of this plan assuring it will fit into almost any neighborhood. The first level has both formal and informal living space, as well as a second master suite that would be a perfect guest room. Upstairs, is the master suite, two more bedrooms and a loft space.

Floor Plans

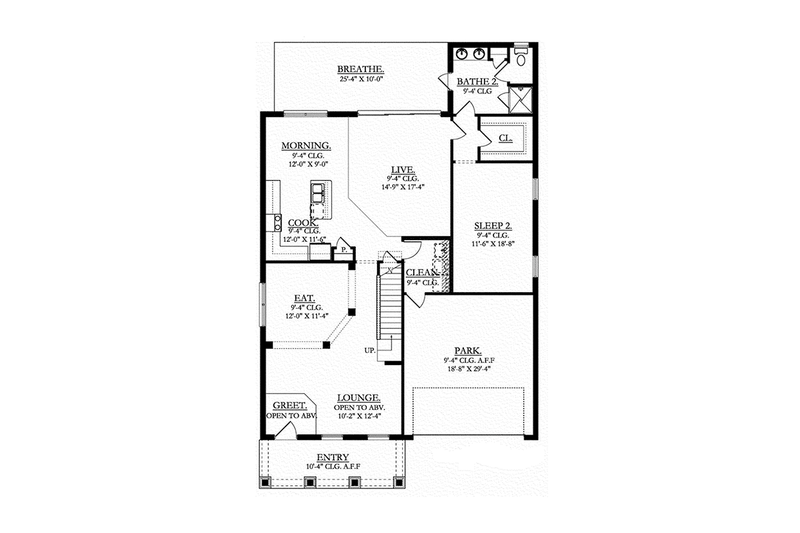

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #1058-69

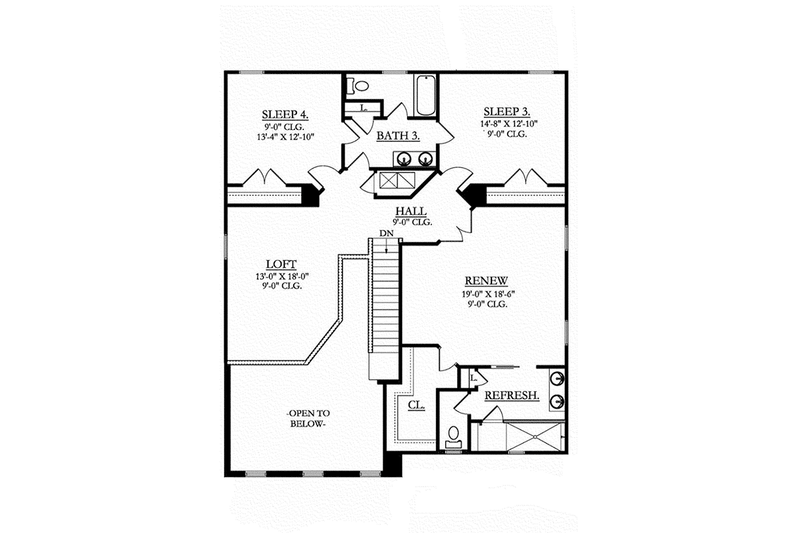

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #1058-69

Full Specs & Features


Dimension
Depth : 64' 4"
Height : 28' 8"
Width : 40'
Area
First Floor: 1617 sq/ft height 9' 4"
Garage: 404 sq/ft height 9' 4"
Second Floor: 1497 sq/ft height 9'
Roof
Roof Framing : Truss
Primary Pitch : 5:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block (1st Story)/ Wood – 2x4 (2nd Story)
Bedroom Features
2 Master Suites
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Loft
Open Floor Plan
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Balcony
More
Jack & Jill Bath
Rooms

Bedroom 3:

188 sq/ft width 14' 8" x depth 12' 10"

Bedroom 4:

172 sq/ft width 13' 4" x depth 12' 10"

Breakfast:

108 sq/ft width 12' x depth 9'

Covered Front Porch:

141 sq/ft

Dining Room:

136 sq/ft width 12' x depth 11' 4"

Family Room:

256 sq/ft width 14' 9" x depth 17' 4"

Garage:

404 sq/ft width 18' 8" x depth 29' 4"

Kitchen:

138 sq/ft width 12' x depth 11' 6"

Loft:

234 sq/ft width 13' x depth 18'

Master Bedroom:

352 sq/ft width 19' x depth 18' 6"

Master Bedroom 2:

215 sq/ft width 11' 6" x depth 18' 8"

Rear Patio:

254 sq/ft width 25' 4" x depth 10'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
