PLAN 417-809

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description


This one-story home design opens like a classic novel. The living and dining areas are combined with beautiful coffered ceilings and a view straight to the back covered patio. There den/study are near a full bath that would allow it to be used as an extra bedroom. The master suite has a bay window, dual walk-in closets and opulent bath. The other wing of the home is the "family" area with a large kitchen, breakfast nook, family room, and two good-sized bedrooms with Jack and Jill bath. The large covered patio wraps around the rear of the house with access from the family room, living room and master.

Full Specs & Features


Dimension

Depth : 96'

Height : 24'

Width : 80' 4"

Area

First Floor: 3147 sq/ft

Garage: 890 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Roof Type : Tile

Secondary Pitch : 7:12

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Main Floor Laundry

Open Floor Plan

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Wrap Around Porch

More

Jack & Jill Bath

Rooms

Bedroom 2:

width 13' 8" x depth 11'

Bedroom 3:

width 13' x depth 11'

Covered Front Porch:

56 sq/ft

Covered Rear Porch:

734 sq/ft

Den/ Study:

width 12' 8" x depth 15' 8"

Dining Room:

width 13' x depth 13' 8"

Family Room:

width 21' x depth 19' 8"

Garage:

890 sq/ft width 23' 8" x depth 39'

Kitchen:

width 14' 4" x depth 15' 8"

Living Room:

width 13' x depth 13' 8"

Master Bedroom:

width 16' 8" x depth 19'

Nook:

width 12' 3" x depth 9' 8"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

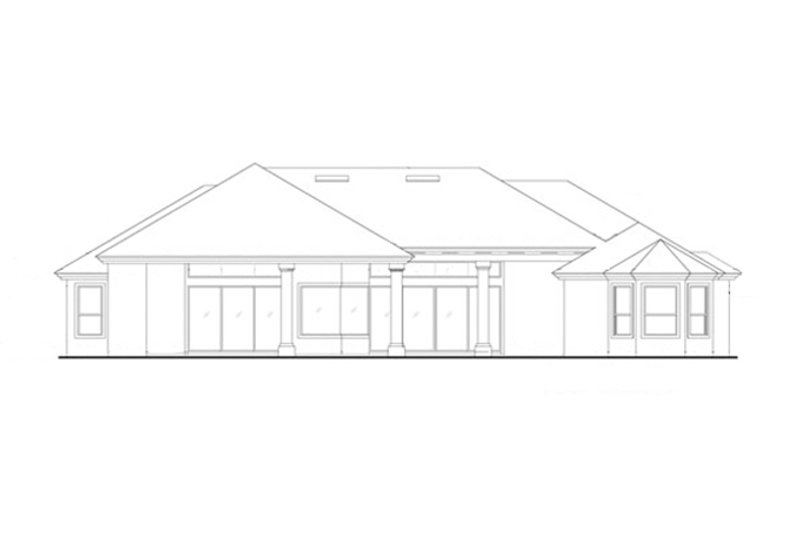

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

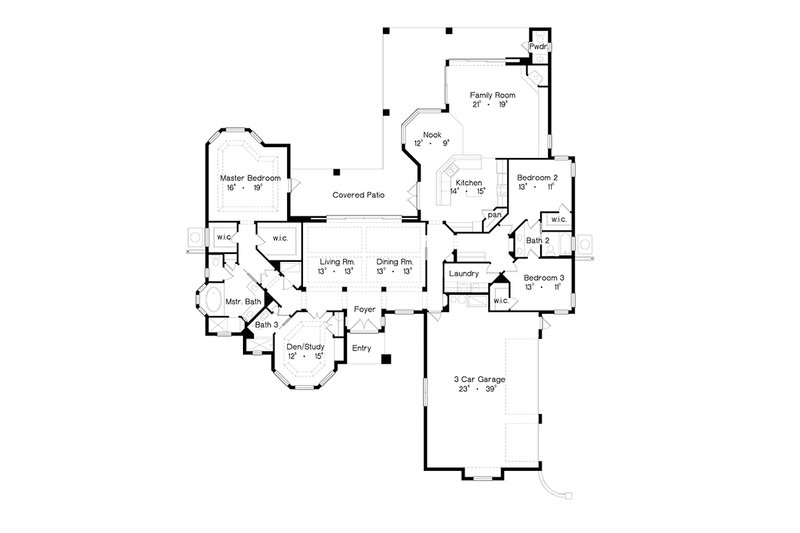

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1300.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1500.00
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$1650.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$2600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$700.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00
Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$30.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
