PLAN #70-1299

Key Specs


3156
sq ft

6
Beds

4
Baths

2
Floors

4
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Clean lines and many amenities make these two units worth a second look. The entry of each unit is split, providing two distinct upper and lower levels. Both of these lovely duplex units offer two bedrooms, an eat-in kitchen, a fireplace in the living room and a rear wood deck for stargazing--all conveniently placed on the main level, while a third bedroom, a full bath and a good-sized recreation room complete the lower level. The master bedroom enjoys a window seat overlooking the front yard and a walk-in closet. Both units offer a two-car garage.

Floor Plans

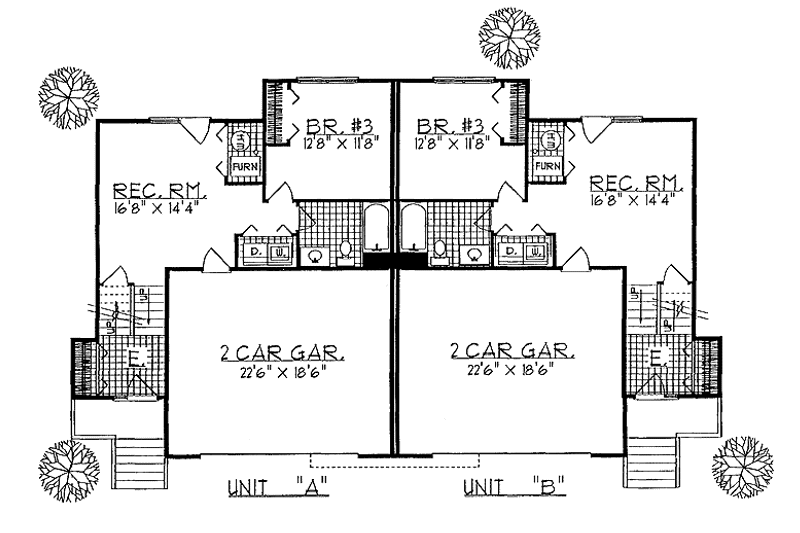

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

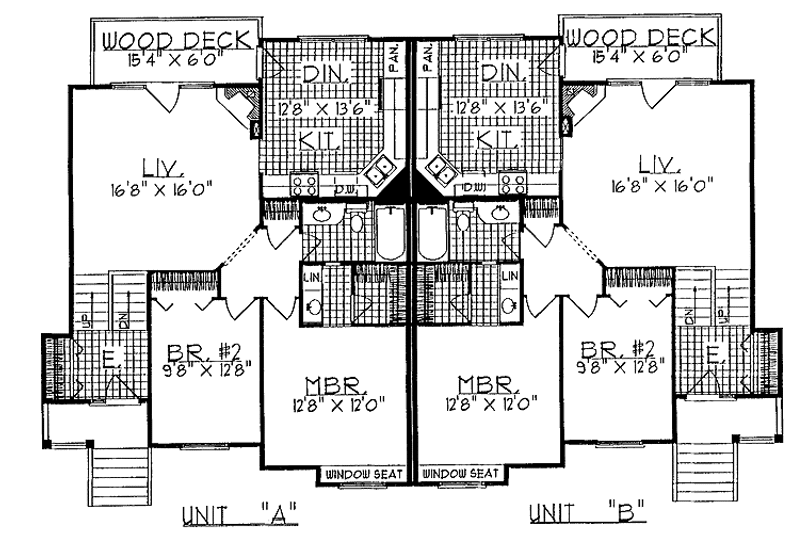

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 528 sq/ft
Upper Floor : 1050 sq/ft
Bedroom Features Fireplace
Formal Living Room / Parlor
Outdoor Spaces Covered Front Porch

What's Included In This Plan Set


Ahmann Design

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
