PLAN #70-1037

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$50.00/each
Mirror Reversed Sets
$40.00
Subtotal
$1020.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #70-1037

Key Specs


3169
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


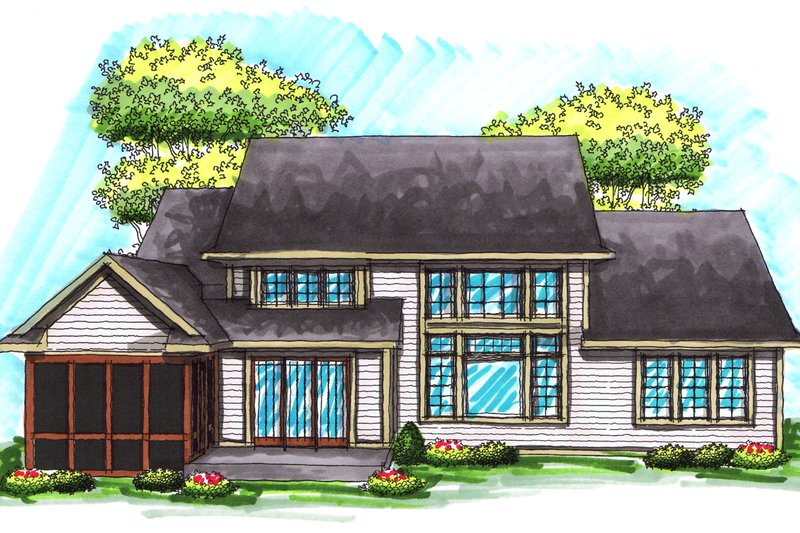

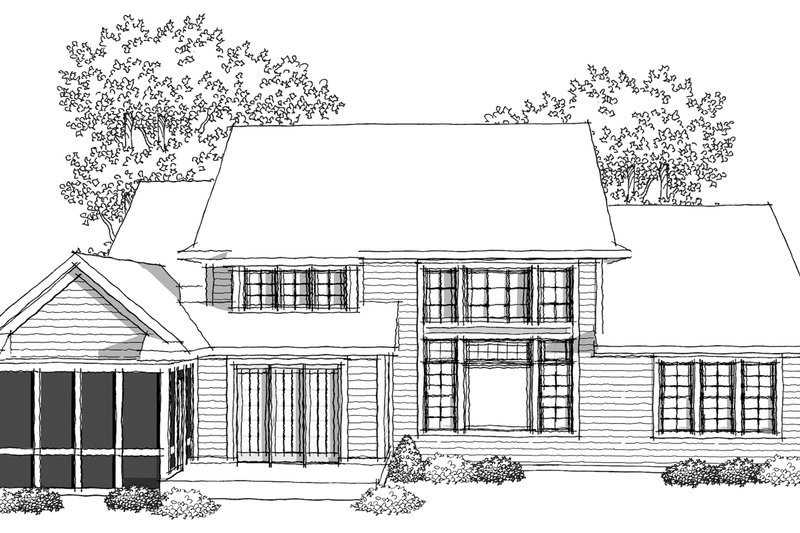

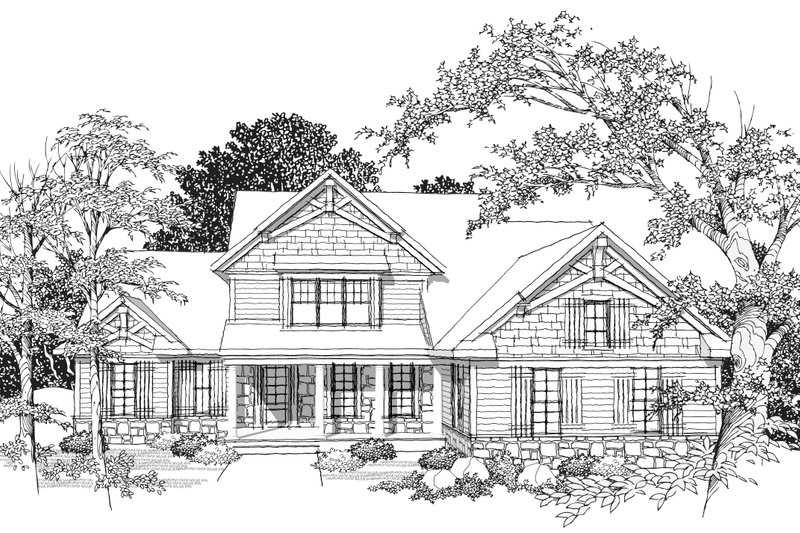

Beautiful craftsman details adorn the exterior of this three-bedroom crowd pleaser. An open floor plan welcomes you and beckons guests to explore the great room where a two-story wall of windows lets in abundant natural light. The kitchen features a breakfast bar that overlooks the nook to the back of the home, and two wedge walls define the kitchen area from the great room. The master suite is located on the main floor and includes a grand walk-in closet, dual sinks and a tray ceiling. Two bedrooms, each with it's own walk-in closet and private bath, complete the second floor. Finally, a side-load, three-stall garage with extra storage makes this flexible home appealing to a wide audience.

Floor Plans

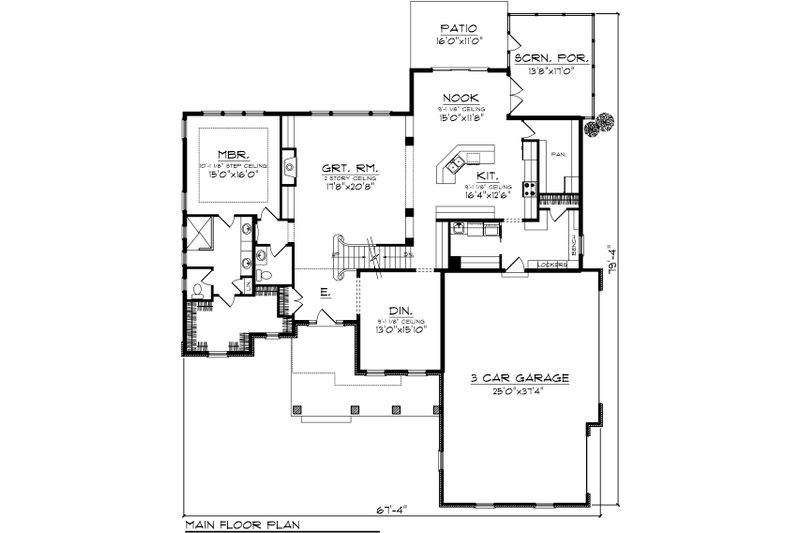

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #70-1037

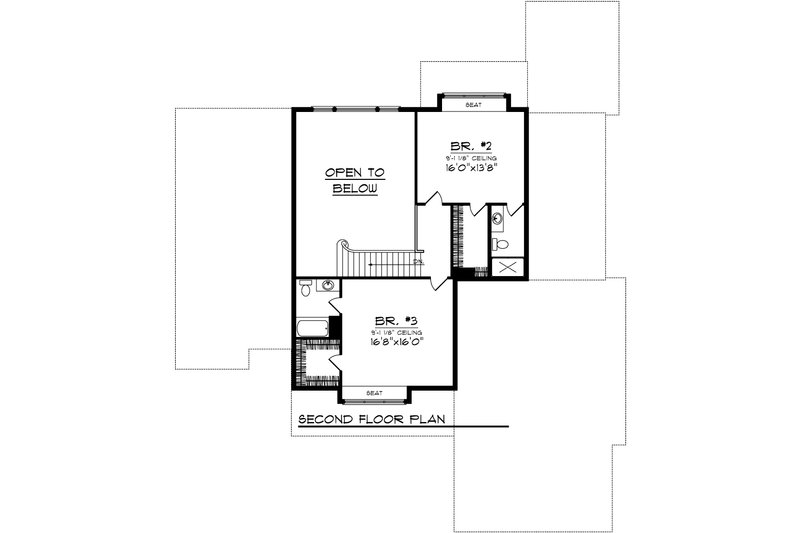

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #70-1037

Full Specs & Features


Dimension
Depth : 79' 4"
Height : 32' 10"
Width : 67' 4"
Area
First Floor: 2286 sq/ft
Garage: 941 sq/ft
Second Floor: 883 sq/ft
Ceiling
Ceiling Details : Great Room 2 StoryMaster Bedroom 10' Step
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Roof Framing : Truss
Roof Load : 47
Primary Pitch : 10:12
Secondary Pitch : 8:12
Exterior Wall Framing
Insulation : R-19
Exterior Wall Finish : Shingle
Framing : 2 x 6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Storage Area
Sunroom
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Screened Porch
Rooms

Basement Foundation:

4735 sq/ft width 67' 4" x depth 70' 4"

Bathroom 2:

53 sq/ft width 5' x depth 10' 8"

Bathroom 3:

57 sq/ft width 6' 7" x depth 8' 9"

Bedroom 2:

218 sq/ft width 16' x depth 13' 8"

Bedroom 2 Closet:

55 sq/ft width 5' 2" x depth 10' 8"

Bedroom 3:

266 sq/ft width 16' 8" x depth 16'

Bedroom 3 Closet:

46 sq/ft width 6' 7" x depth 7'

Dining Room:

205 sq/ft width 13' x depth 15' 10"

Foyer:

81 sq/ft width 10' 2" x depth 8'

Garage:

933 sq/ft width 25' x depth 37' 4"

Great Room:

365 sq/ft width 17' 8" x depth 20' 8"

Hall:

53 sq/ft width 5' x depth 10' 9"

Kitchen:

204 sq/ft width 16' 4" x depth 12' 6"

Laundry Room:

60 sq/ft width 8' x depth 7' 7"

Master Bathroom:

134 sq/ft width 10' 8" x depth 12' 7"

Master Bedroom:

240 sq/ft width 15' x depth 16'

Master Closet:

153 sq/ft width 17' x depth 9'

Nook:

175 sq/ft width 15' x depth 11' 8"

Patio:

176 sq/ft width 16' x depth 11'

Porch - Front:

364 sq/ft width 24' 4" x depth 15'

Porch - Screened:

232 sq/ft width 13' 8" x depth 17'

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
