PLAN #51-1116

Key Specs


3181
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans


Floor Plan - Lower Floor Plan

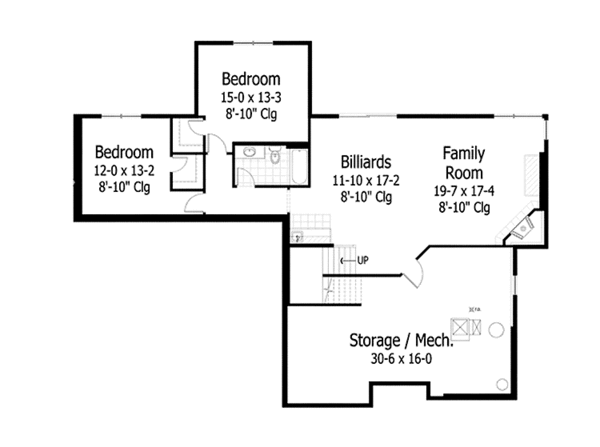

Ranch Floor Plan - Lower Floor Plan Plan #51-1116
Floor Plan - Main Floor Plan

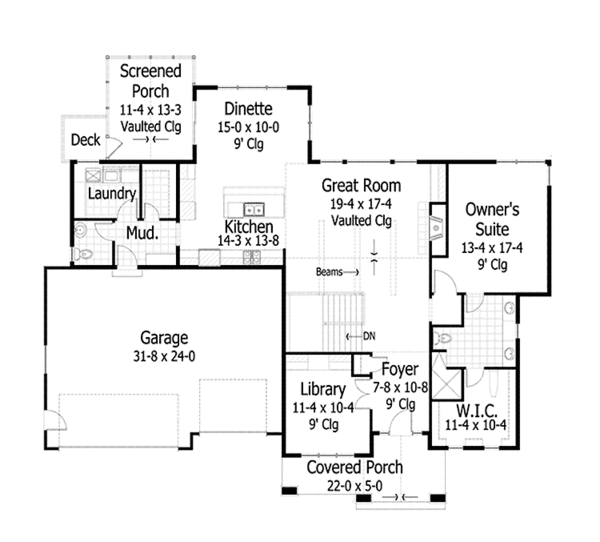

Ranch Floor Plan - Main Floor Plan Plan #51-1116

Full Specs & Features


Dimension
Depth : 57'
Height : 25' 6"
Width : 68' 3"
Area
Basement Living: 1280 sq/ft height 9'
First Floor: 1901 sq/ft height 9'
Garage: 765 sq/ft height 9'
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Screened Porch Sunroom
Deck
Rooms

Bedroom 2:

158 sq/ft width 12' x depth 13' 2"

Bedroom 3:

198 sq/ft width 15' x depth 13' 3"

Billiards Room:

203 sq/ft width 11' 10" x depth 17' 2"

Covered Porch:

110 sq/ft width 22' x depth 5'

Dinette:

150 sq/ft width 15' x depth 10'

Family Room:

339 sq/ft width 19' 7" x depth 17' 4"

Foyer:

81 sq/ft width 7' 8" x depth 10' 8"

Garage:

760 sq/ft width 31' 8" x depth 24'

Great Room:

335 sq/ft width 19' 4" x depth 17' 4"

Kitchen:

194 sq/ft width 14' 3" x depth 13' 8"

Library:

117 sq/ft width 11' 4" x depth 10' 4"

Master Suite:

231 sq/ft width 13' 4" x depth 17' 4"

Master Walk-In Closet:

117 sq/ft width 11' 4" x depth 10' 4"

Porch - Screened:

150 sq/ft width 11' 4" x depth 13' 3"

Storage:

488 sq/ft width 30' 6" x depth 16'

What's Included In This Plan Set


  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
