PLAN #951-5

Key Specs


3182
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


The columned entrance into this Traditional home opens with a Den and Living rooms to either side. A coffered Dining room makes a great place for meals. A well lit Family room with a fireplace sits next to the Kitchen. Upstairs, a pair of French doors opens into the sitting area of the Master Suite. The Master Bath gives you a jetted tub on a tiled deck, a separate shower, a double vanity, a toilet room and a nice sized walk in closet. The rest of the upper floor is taken up by 3 more bedrooms and a Bonus room. The finishing touch to this home is the 3 car tandem garage.

Floor Plans

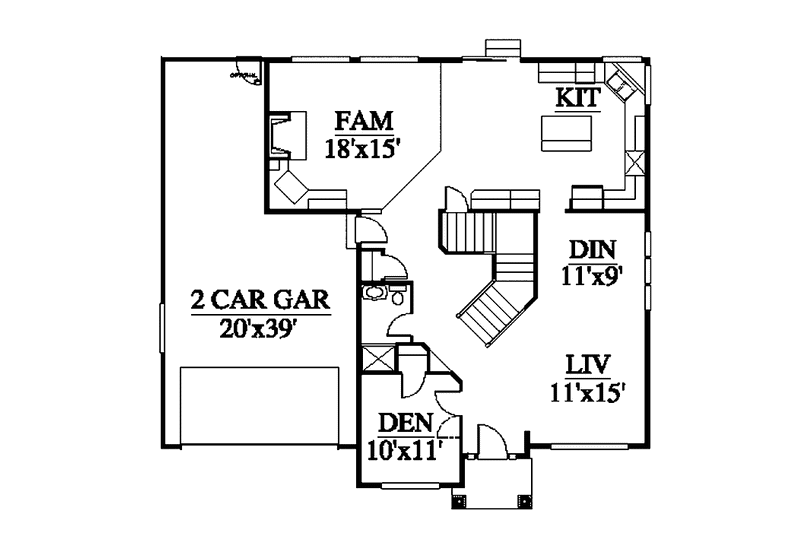

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #951-5
Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #951-5

Full Specs & Features


Dimension
Depth : 44'
Width : 50'
Area
First Floor: 1403 sq/ft height 9' 1"
Garage: 648 sq/ft
Porch: 39 sq/ft
Second Floor: 1779 sq/ft height 8' 1"
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Fireplace
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Master Sitting Area
Upstairs Laundry
Loft
Open Floor Plan
Outdoor Spaces
Courtyard
Covered Front Porch
Balcony
Rooms

Bedroom 2:

120 sq/ft width 10' 9" x depth 11' 3"

Bedroom 2 Closet:

14 sq/ft width 7' 1" x depth 2' 1"

Bedroom 3:

165 sq/ft width 12' x depth 13' 10"

Bedroom 3 Closet:

1 sq/ft width 1' 2" x depth 1' 8"

Bedroom 4:

144 sq/ft width 10' 1" x depth 14' 4"

Bedroom 4 Closet:

11 sq/ft width 5' 9" x depth 2' 1"

Bonus Room - Finished:

230 sq/ft width 16' 9" x depth 13' 9"

Breakfast Room:

56 sq/ft width 10' 4" x depth 5' 6"

Coat Closet:

6 sq/ft width 3' 2" x depth 2' 1"

Covered Porch:

43 sq/ft width 8' 3" x depth 5' 3"

Crawlspace Foundation:

1475 sq/ft width 38' 2" x depth 38' 8"

Den:

111 sq/ft width 10' 1" x depth 11' 1"

Dining Room:

127 sq/ft width 11' 1" x depth 11' 6"

Family Room:

266 sq/ft width 17' 8" x depth 15' 1"

Front Entry:

47 sq/ft width 6' 5" x depth 7' 5"

Garage:

469 sq/ft width 19' 9" x depth 23' 9"

Hall:

83 sq/ft width 5' 11" x depth 14' 1"

Hall Bathroom:

60 sq/ft width 5' x depth 12'

Kitchen:

164 sq/ft width 10' 11" x depth 15' 1"

Kitchen Island:

17 sq/ft width 5' x depth 3' 6"

Laundry Room:

53 sq/ft width 8' x depth 6' 8"

Linen Closet:

13 sq/ft width 7' 8" x depth 1' 9"

Living Room:

143 sq/ft width 11' 10" x depth 12' 2"

Master Bathroom:

154 sq/ft width 10' 3" x depth 15' 1"

Master Bedroom:

252 sq/ft width 16' 9" x depth 15' 1"

Master Closet:

82 sq/ft width 12' 3" x depth 6' 9"

Master Sitting Room:

117 sq/ft width 10' 9" x depth 10' 11"

Pantry:

22 sq/ft width 5' 6" x depth 4'

Patio:

196 sq/ft width 14' x depth 14'

Powder Room:

44 sq/ft width 5' x depth 8' 11"

Slab Foundation:

747 sq/ft width 19' 4" x depth 38' 8"

Toilet Closet:

19 sq/ft width 6' x depth 3' 3"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

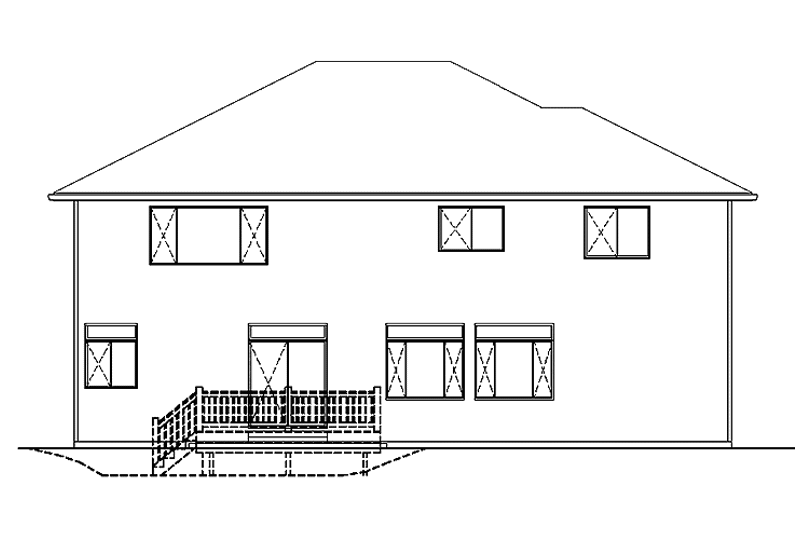

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$846.00
5 printed plan sets mailed to you.
8 Copy Set :
$922.50
8 printed plan sets mailed to you.
Reproducible Set :
$1080.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1755.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$796.50
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse :
157.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
