Key Specs


3192
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This gorgeous Italianate embodies dream living. The main level is appointed with an impressive entrance, formal dining and living rooms, a main suite with private deck access, a kitchen with island and breakfast nook, and a family room with gas fireplace for memorable moments. Entertain in all types of weather on the covered patio, or meet privately in the den to the immediate right of the foyer. A laundry is tucked away between the kitchen and two-car garage. The upper floor holds three bedrooms with individual walk-in closets, and two baths.

Floor Plans

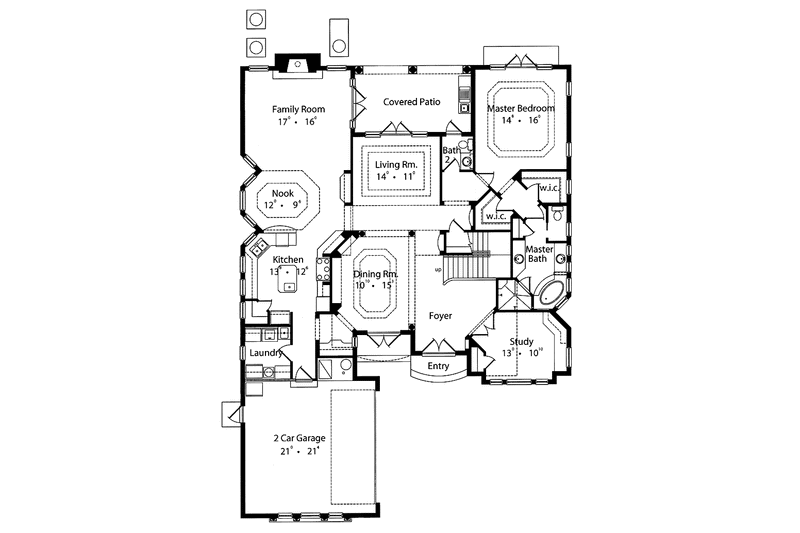

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-763

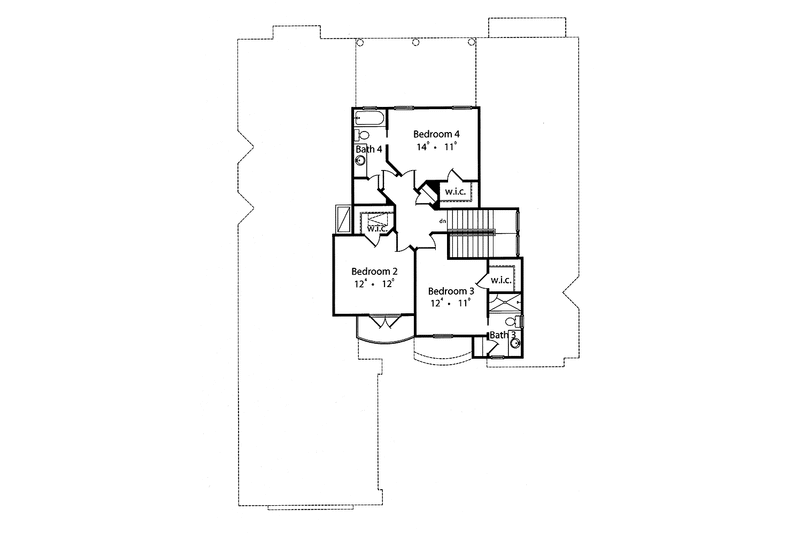

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #417-763

Full Specs & Features


Dimension
Depth : 75'
Height : 29'
Width : 53'
Area
Deck: 65 sq/ft
First Floor: 2335 sq/ft
Garage: 517 sq/ft
Porch: 199 sq/ft
Second Floor: 857 sq/ft
Storage: 16 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Loft
Outdoor Spaces
Courtyard
Balcony
Rooms

3rd BR Closet:

26 sq/ft width 4' 4" x depth 6' 2"

Bathroom 2:

48 sq/ft width 9' 8" x depth 5'

Bathroom 3:

55 sq/ft width 10' 5" x depth 5' 4"

Bedroom 2:

128 sq/ft width 11' 8" x depth 11'

Bedroom 2 Closet:

25 sq/ft width 5' x depth 5'

Bedroom 3:

147 sq/ft width 12' x depth 12' 4"

Bedroom 3 Closet:

25 sq/ft width 5' x depth 5'

Bedroom 4:

154 sq/ft width 11' x depth 14'

Bedroom 4 Closet:

24 sq/ft width 4' x depth 6'

Breakfast Room:

108 sq/ft width 12' x depth 9'

Dining Room:

184 sq/ft width 12' 4" x depth 15'

Foyer:

90 sq/ft width 8' x depth 11' 4"

Garage:

447 sq/ft width 21' x depth 21' 4"

Gathering Room:

272 sq/ft width 17' x depth 16'

Hall Closet:

5 sq/ft width 3' x depth 1' 8"

Kitchen:

200 sq/ft width 13' 8" x depth 14' 8"

Laundry Room:

61 sq/ft width 7' 4" x depth 8' 4"

Living Room:

154 sq/ft width 14' x depth 11'

Master Bathroom:

224 sq/ft width 14' x depth 16'

Master Bedroom:

224 sq/ft width 14' x depth 16'

Master Closet:

36 sq/ft width 5' x depth 7' 4"

Porch - Front:

29 sq/ft width 9' x depth 3' 4"

Porch - Rear:

199 sq/ft width 18' 8" x depth 10' 8"

Powder Room:

28 sq/ft width 5' 4" x depth 5' 4"

Storage:

19 sq/ft width 3' 10" x depth 5'

Study:

140 sq/ft width 13' x depth 10' 10"

Walk-In Closet:

35 sq/ft width 5' 8" x depth 6' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

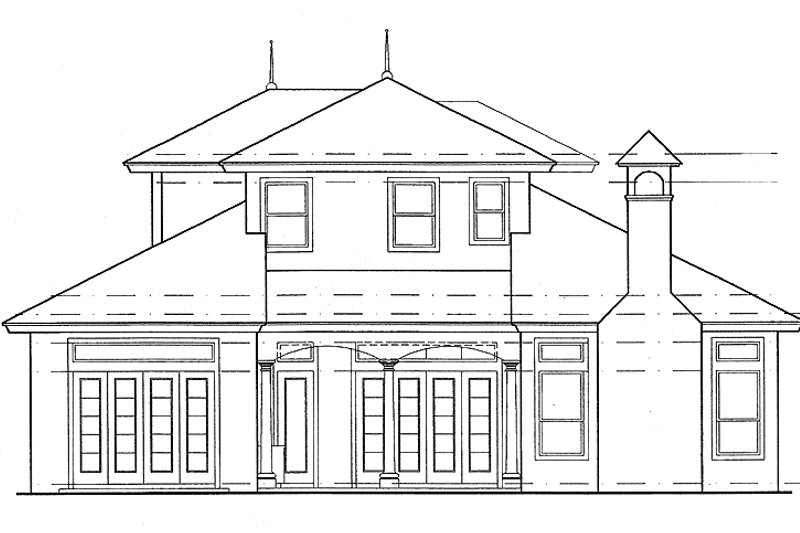

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
