SAVEDPhotographs may show modified designs.
PLAN 927-536
Key Specs
3200
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 927-536
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

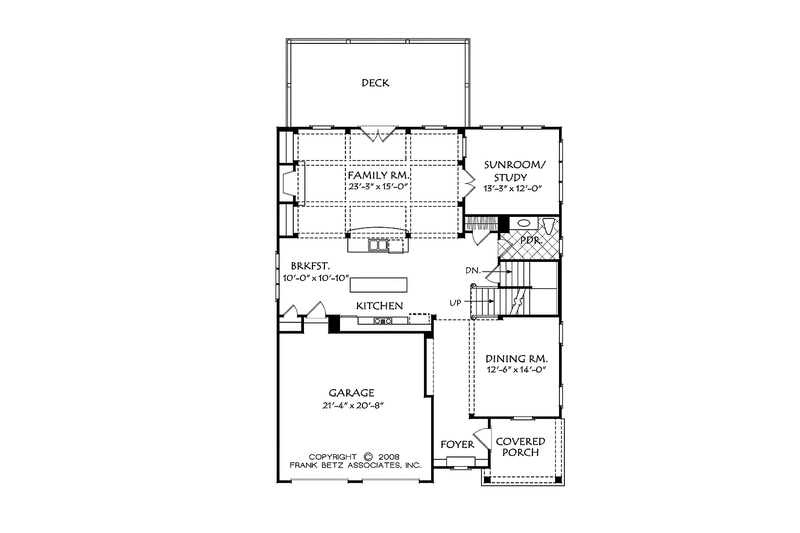

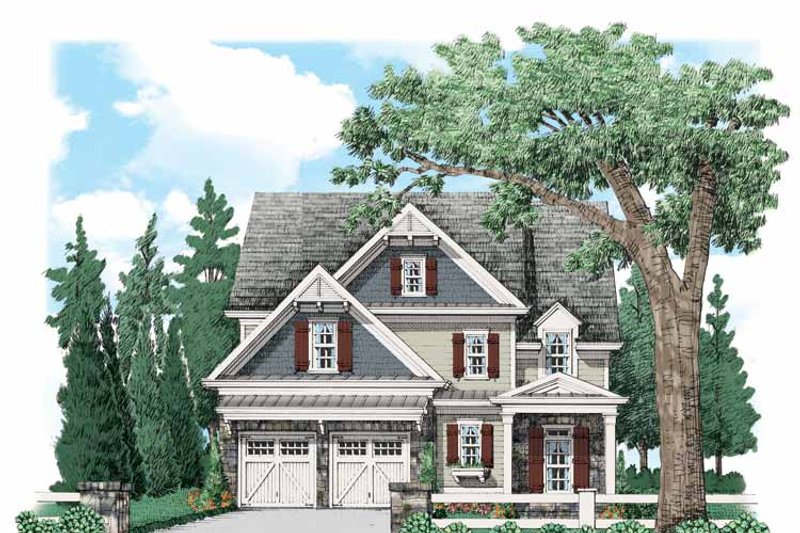

This family plan delivers impressive square footage on a modest footprint, making it an especially good choice for an urban or small lot. The main level's open layout puts the kitchen at the heart of the home, open to the hearth-warmed family room. A deck awaits barbecues outside, while to the right, a sunny study is a pleasant place to relax. Upstairs, the fabulous master suite boasts a large bedroom, roomy bathroom, and an enormous walk-in closet that passes directly into the laundry room for ultimate convenience. All three additional bedrooms have walk-in closets.Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Full Specs & Features
Dimension
Depth : 50'
Height : 35' 6"
Width : 40'
Height : 35' 6"
Width : 40'
Area
Basement Unfinished: 1439 sq/ft
First Floor: 1439 sq/ft
Garage: 455 sq/ft
Second Floor: 1761 sq/ft
First Floor: 1439 sq/ft
Garage: 455 sq/ft
Second Floor: 1761 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchen Island
Additional Room Features
Family Room Keeping Room
Sunroom
Upstairs Laundry
Sunroom
Upstairs Laundry
Outdoor Spaces
Deck
Screened Porch
Screened Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
195 sq/ft width 13' x depth 15'
Bedroom 3:
172 sq/ft width 12' 4" x depth 14'
Bedroom 4:
196 sq/ft width 14' x depth 14'
Breakfast:
108 sq/ft width 10' x depth 10' 10"
Dining Room:
175 sq/ft width 12' 6" x depth 14'
Family Room:
348 sq/ft width 23' 3" x depth 15'
Foyer:
54 sq/ft width 7' 9" x depth 7'
Garage:
440 sq/ft width 21' 4" x depth 20' 8"
Kitchen:
169 sq/ft width 13' x depth 13'
Laundry Room:
84 sq/ft width 8' x depth 10' 6"
Master Bathroom:
149 sq/ft width 13' x depth 11' 6"
Master Closet:
128 sq/ft width 16' x depth 8'
Master Suite:
311 sq/ft width 20' 9" x depth 15'
Sun Room:
159 sq/ft width 13' 3" x depth 12'
What's Included In This Plan Set
- Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
- All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Questions? Call 1-800-447-0027
Plan Set
| 5 Copy Set : $1490.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $1580.00 |
8 printed plan sets mailed to you. |
| PDF Set : $1730.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $1815.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $3300.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $250.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $45.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List : $85.00 |
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options. |
| Mirror Reversed Sets : $55.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
