Key Specs


3204
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


An open layout and lots of windows on the back side of this family home provide easy movement and bright views throughout the home. Take your pick of fireplaces for lounging: the dramatic hearth in the great room, the patio's outdoor retreat, or the master suite's two-sided model (enjoy it from the tub!). Also in the master bedroom, a columned reading nook takes advantage of the light. The second-floor laundry room adds convenience, in addition to the space for a stacked washer and dryer downstairs in the mud room.

Floor Plans


Floor Plan - Main Floor Plan
Classical Floor Plan - Main Floor Plan Plan #51-657
Floor Plan - Upper Floor Plan

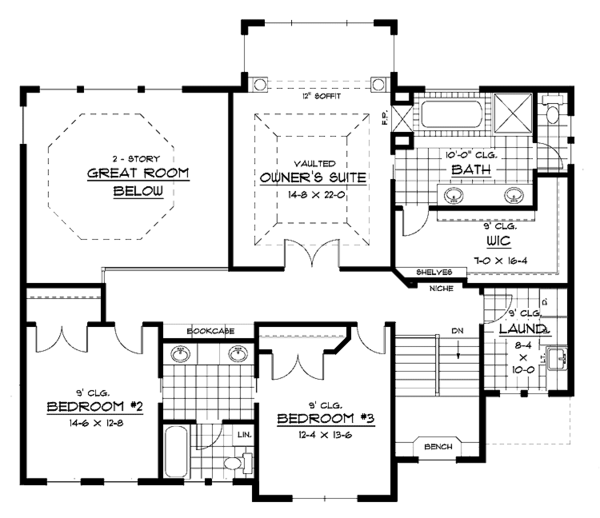

Classical Floor Plan - Upper Floor Plan Plan #51-657

Full Specs & Features


Dimension
Depth : 64'
Height : 32'
Width : 99'
Area
Basement Unfinished: 1701 sq/ft height 9'
First Floor: 1701 sq/ft height 9'
Garage: 1180 sq/ft
Porch: 192 sq/ft
Second Floor: 1503 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Master Sitting Area
Upstairs Laundry
Sunroom
Outdoor Spaces
Covered Front Porch
Screened Porch
Rooms

Bedroom 2:

183 sq/ft width 14' 6" x depth 12' 8"

Bedroom 3:

166 sq/ft width 12' 4" x depth 13' 6"

Deck:

192 sq/ft width 12' x depth 16'

Dinette:

168 sq/ft width 12' x depth 14'

Dining Room:

160 sq/ft width 12' 4" x depth 13'

Family Room:

360 sq/ft width 18' x depth 20'

Foyer:

138 sq/ft width 8' 8" x depth 16'

Garage:

952 sq/ft width 34' x depth 28'

Kitchen:

166 sq/ft width 10' x depth 16' 8"

Laundry Room:

83 sq/ft width 8' 4" x depth 10'

Master Bedroom:

322 sq/ft width 14' 8" x depth 22'

Master Walk-In Closet:

114 sq/ft width 7' x depth 16' 4"

Mud Room:

133 sq/ft width 6' 8" x depth 20'

Porch - Front:

228 sq/ft width 6' x depth 38'

Porch - Screened:

168 sq/ft width 14' x depth 12'

Study:

152 sq/ft width 12' 8" x depth 12'

Walk-In Closet:

42 sq/ft width 5' x depth 8' 6"

What's Included In This Plan Set


  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
