PLAN 70-1142

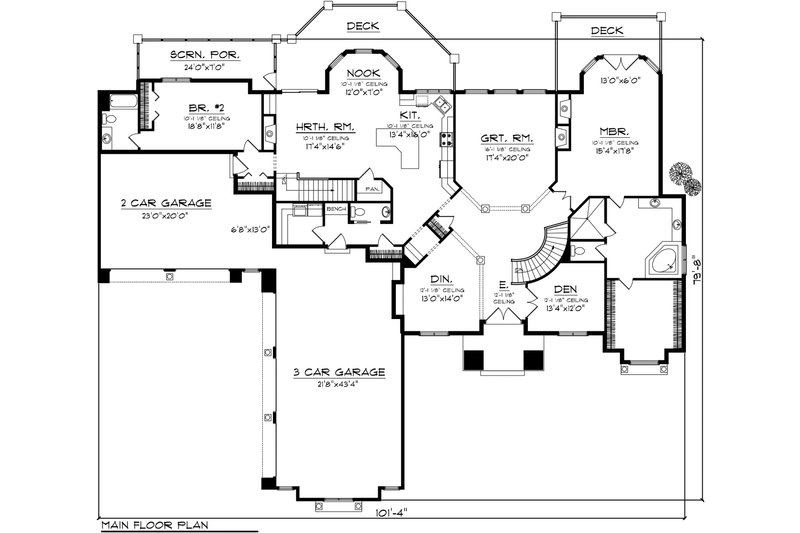

Dream House Plan - Ranch Exterior - Front Elevation Plan #70-1142
Dream House Plan - Ranch Exterior - Rear Elevation Plan #70-1142

Key Specs

sq ft





Select Plan Set Options

What's included?
Additional Construction Sets$65.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets$55.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 70-1142

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Tuscan in design, this ranch features a traditional plan with extra details that are sure to please, beginning with a curved staircase leading to the lower level just to the right of the entry. The great room directly ahead, and the dining room to the left of the entry are both defined by gracious columns that carry you into the main living area of the home. The kitchen, hearth room and nook are combined into an open floor plan concept to create a large daily living area while still having access to the great room. A spacious master suite includes double French doors that lead to a private deck, Jacuzzi tub and spacious walk-in closet. A second bedroom is tucked behind the garage and has a private bath. A five-stall, split-load garage provides ample parking and storage space.

Full Specs & Features

Depth : 79' 8"
Height : 23'
Width : 101' 4"
First Floor: 3214 sq/ft
Garage: 1495 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : 10'. Din/Den 12', Grt Rm 16'
Lower Ceiling : 10'
Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Tile
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2x6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Garage Features
Oversized Garage
Split Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Screened Porch

2 Car Garage:

width 23' x depth 20'

3 Car Garage:

width 21' 8" x depth 43' 4"

Bath 2:

61 sq/ft width 6' 4" x depth 9' 8"

Bedroom 2:

218 sq/ft width 18' 8" x depth 11' 8"

Bedroom 2 Closet:

16 sq/ft width 2' x depth 8'

Breakfast Nook:

94 sq/ft width 12' x depth 7'

Covered Front Porch:

107 sq/ft width 13' 4" x depth 8'

Covered Rear Porch:

168 sq/ft width 24' x depth 7'


465 sq/ft width 31' x depth 15'


160 sq/ft width 13' 4" x depth 12'

Dining Room:

182 sq/ft width 13' x depth 14'


48 sq/ft width 8' x depth 6'

Garage Storage:

87 sq/ft width 6' 8" x depth 13'

Great Room:

346 sq/ft width 17' 4" x depth 20'


27 sq/ft width 6' 4" x depth 4' 4"

Hall Closet 1:

13 sq/ft width 6' 4" x depth 2'

Hall Closet 2:

11 sq/ft width 5' 8" x depth 2'

Hearth Room:

251 sq/ft width 17' 4" x depth 14' 6"


width 13' 4" x depth 16'

Laundry Room:

57 sq/ft width 8' 2" x depth 7'

Master Bath:

267 sq/ft width 19' 4" x depth 13' 10"

Master Bedroom:

271 sq/ft width 15' 4" x depth 17' 8"

Master Closet:

181 sq/ft width 13' x depth 13' 11"

Master Sitting Area:

78 sq/ft width 13' x depth 6'

Mud Room:

14 sq/ft width 4' x depth 3' 6"


22 sq/ft width 6' x depth 3' 8"

Powder Room:

21 sq/ft width 7' x depth 3'

Screened Porch:

width 24' x depth 7'

What's Included In This Plan Set

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Questions? Call 1-800-447-0027
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
