PLAN #70-1038

Key Specs


3217
sq ft

4
Beds

3.5
Baths

2
Floors

0
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

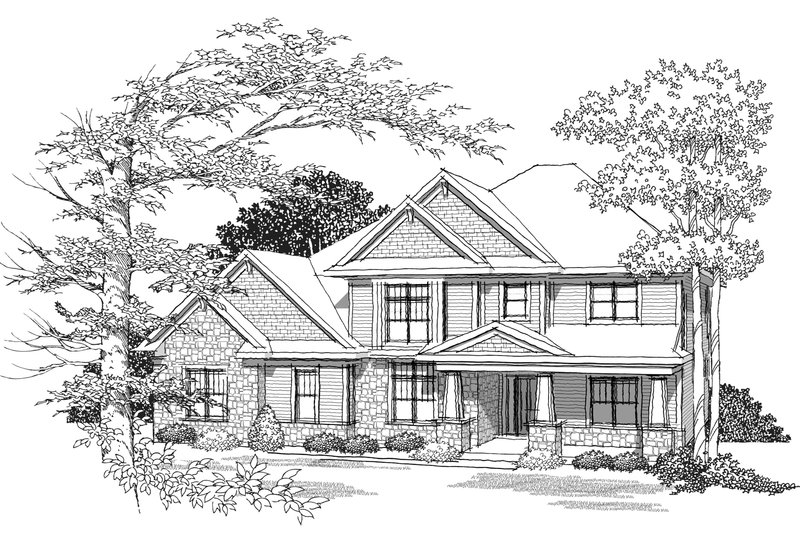

Traditional in style with the perfect blend of craftsman style shingle siding and stone, this two-story home will be a welcome addition to any neighborhood. As you enter of the delightfully large porch, the formal dining room lies to your left and the den is located just across on the right. An open floor plan at the back of the home creates the main living area where the large windows from the great room and nook provide plenty of natural light. Four bedrooms can be found upstairs where the master suite pampers with walk-in his and hers closets, private bath and Jacuzzi tub. Two of the other bedrooms share a Jack and Jill bathroom while the fourth has direct access to the hall bath. A three-stall side load garage with extra storage gives this home an extra boost in family appeal.

Floor Plans

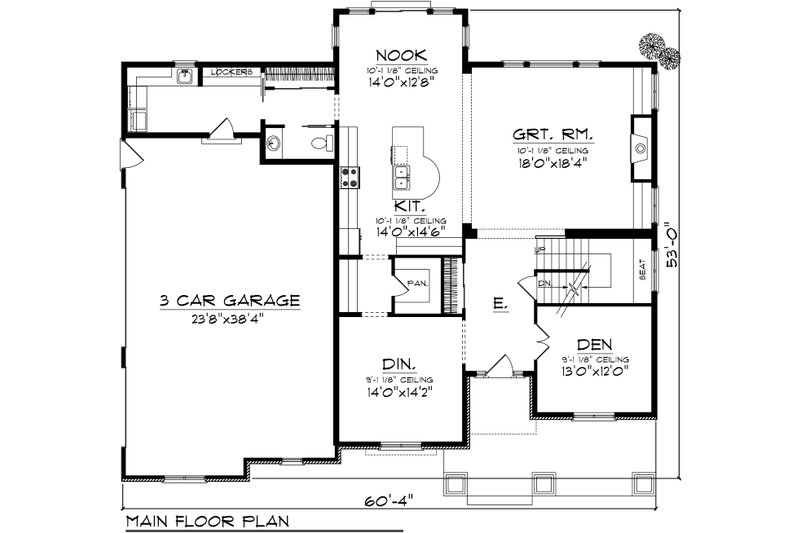

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #70-1038

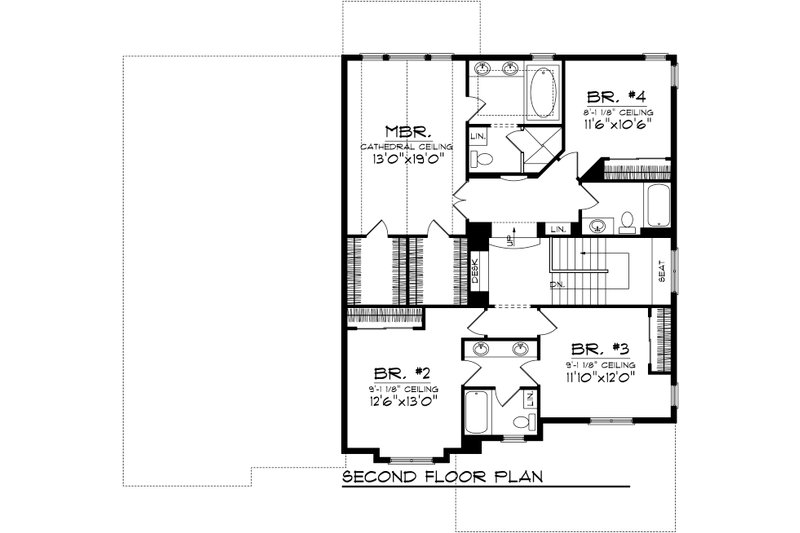

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #70-1038

Full Specs & Features


Dimension
Depth : 53'
Height : 34' 9"
Width : 60' 4"
Area
First Floor: 1786 sq/ft
Garage: 883 sq/ft
Second Floor: 1431 sq/ft
Ceiling
Ceiling Details : Nook, Kitchen and Great Room 10'Bedroom #4 8'Master Bedroom Cathedral
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Roof Framing : Truss
Roof Load : 47
Primary Pitch : 10:12
Secondary Pitch : 8:12
Exterior Wall Framing
Insulation : R-19
Exterior Wall Finish : Shake / Stone / Siding
Framing : 2 x 6
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Rooms

Basement Foundation:

3197 sq/ft width 60' 4" x depth 53'

Bathroom 2:

82 sq/ft width 8' x depth 10' 4"

Bedroom 2:

162 sq/ft width 12' 6" x depth 13'

Bedroom 2 Closet:

17 sq/ft width 8' 2" x depth 2' 1"

Bedroom 3:

141 sq/ft width 11' 10" x depth 12'

Bedroom 3 Closet:

14 sq/ft width 2' 1" x depth 7'

Bedroom 4:

120 sq/ft width 11' 6" x depth 10' 6"

Bedroom 4 Closet:

15 sq/ft width 7' 4" x depth 2' 1"

Den:

156 sq/ft width 13' x depth 12'

Dining Room:

198 sq/ft width 14' x depth 14' 2"

Foyer:

117 sq/ft width 7' 10" x depth 15'

Garage:

907 sq/ft width 23' 8" x depth 38' 4"

Great Room:

329 sq/ft width 18' x depth 18' 4"

Hall:

57 sq/ft width 12' x depth 4' 10"

Hall Bathroom:

55 sq/ft width 9' 9" x depth 5' 8"

Hall Closet:

13 sq/ft width 2' 1" x depth 6' 4"

Hall Closet 2:

16 sq/ft width 7' 10" x depth 2' 1"

Kitchen:

203 sq/ft width 14' x depth 14' 6"

Laundry Room:

59 sq/ft width 8' x depth 7' 5"

Master Bathroom:

125 sq/ft width 10' 2" x depth 12' 4"

Master Bedroom:

247 sq/ft width 13' x depth 19'

Master Closet:

47 sq/ft width 6' 6" x depth 7' 4"

Master Closet Two:

47 sq/ft width 6' 5" x depth 7' 4"

Mud Room:

48 sq/ft width 6' 7" x depth 7' 5"

Nook:

177 sq/ft width 14' x depth 12' 8"

Porch - Front:

328 sq/ft width 24' x depth 13' 8"

Powder Room:

27 sq/ft width 7' 10" x depth 3' 6"

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale

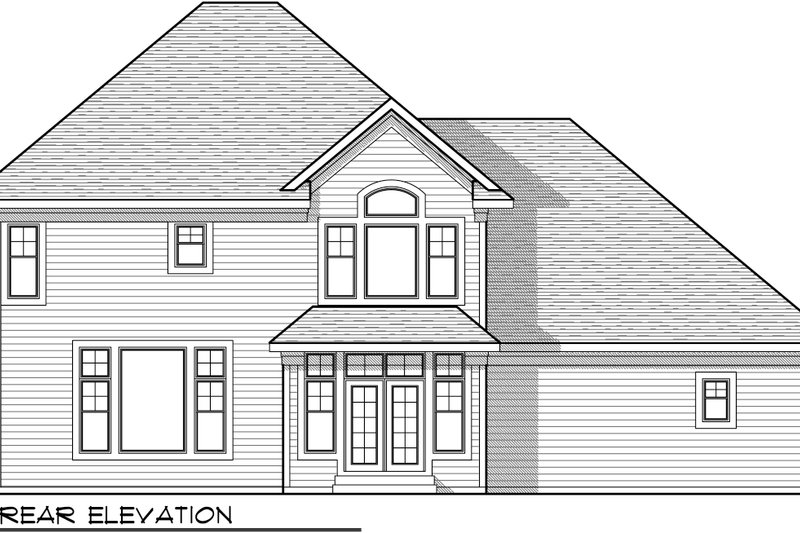

  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Plan Set
5 Copy Set :
$918.00
5 printed plan sets mailed to you.
8 Copy Set :
$954.00
8 printed plan sets mailed to you.
PDF Set :
$1152.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1152.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1836.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$265.50
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$265.50
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
265.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
36.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
