Key Specs


3249
sq ft

4
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

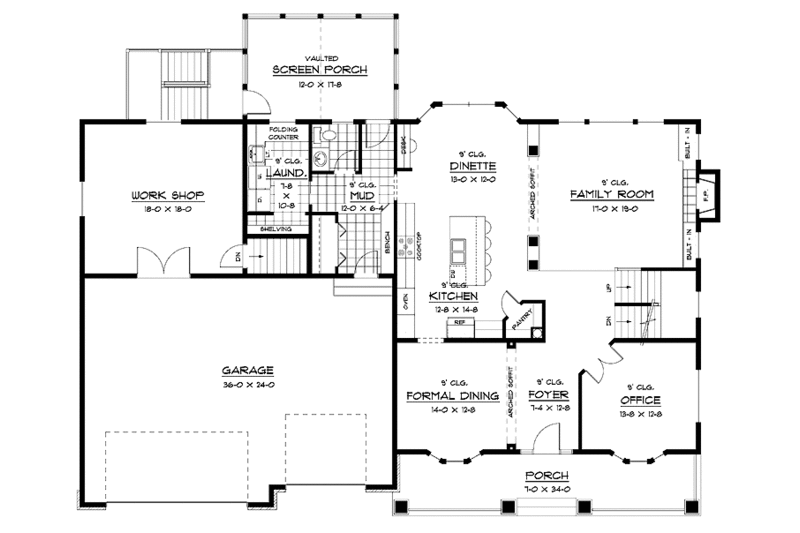

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #51-662

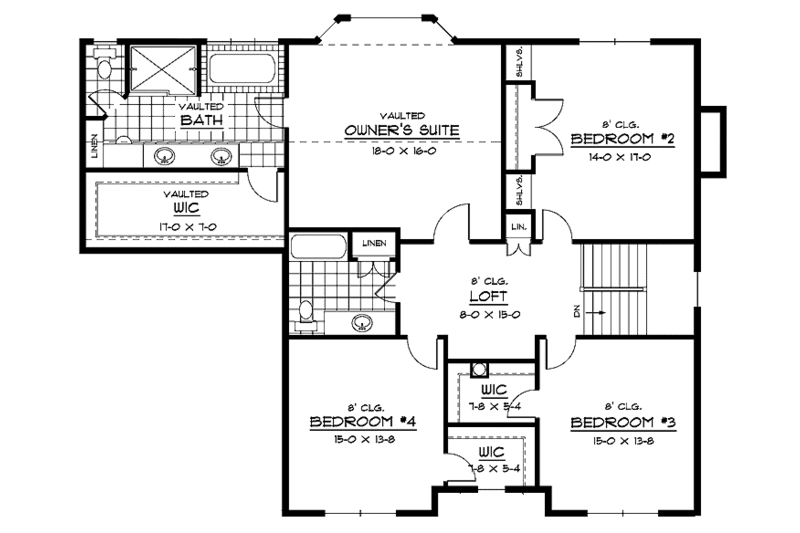

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #51-662

Full Specs & Features


Dimension
Depth : 57'
Height : 33'
Width : 70' 6"
Area
Basement Unfinished: 1620 sq/ft height 9'
First Floor: 1620 sq/ft height 9'
Garage: 908 sq/ft
Porch: 212 sq/ft
Second Floor: 1629 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x4
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Workshop
Loft
Sunroom
Outdoor Spaces
Covered Front Porch
Balcony
Screened Porch
Rooms

Bedroom 2:

238 sq/ft width 14' x depth 17'

Bedroom 3:

205 sq/ft width 15' x depth 13' 8"

Bedroom 4:

238 sq/ft width 14' x depth 17'

Dinette:

156 sq/ft width 13' x depth 12'

Dining Room:

177 sq/ft width 14' x depth 12' 8"

Family Room:

323 sq/ft width 17' x depth 19'

Foyer:

92 sq/ft width 7' 4" x depth 12' 8"

Garage:

864 sq/ft width 36' x depth 24'

Kitchen:

185 sq/ft width 12' 8" x depth 14' 8"

Laundry Room:

81 sq/ft width 7' 8" x depth 10' 8"

Loft:

120 sq/ft width 8' x depth 15'

Master Bedroom:

288 sq/ft width 18' x depth 16'

Master Walk-In Closet:

119 sq/ft width 17' x depth 7'

Mud Room:

75 sq/ft width 12' x depth 6' 4"

Office:

173 sq/ft width 13' 8" x depth 12' 8"

Porch - Front:

238 sq/ft width 7' x depth 34'

Porch - Screened:

212 sq/ft width 12' x depth 17' 8"

Work Shop:

324 sq/ft width 18' x depth 18'

What's Included In This Plan Set


  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
