Key Specs


3312
sq ft

5
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

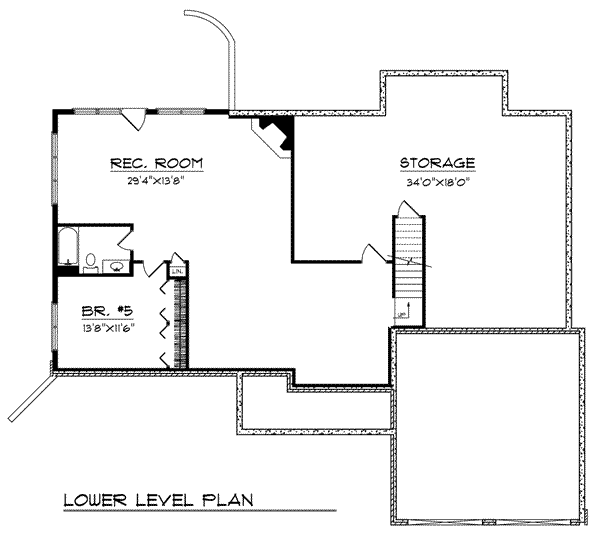

Floor Plan - Lower Floor Plan
Ranch Floor Plan - Lower Floor Plan Plan #70-790

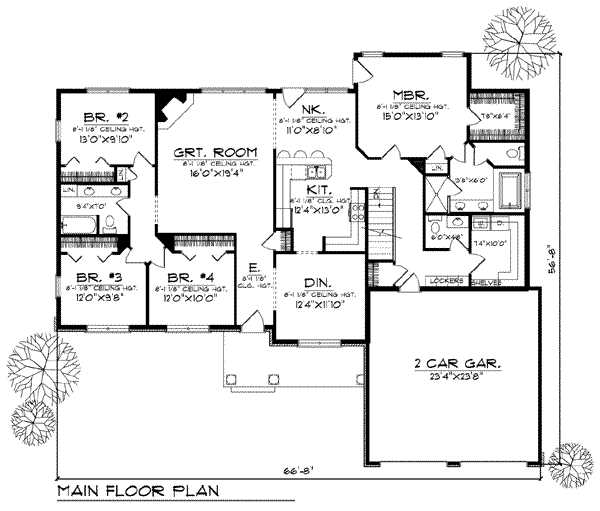

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #70-790

Full Specs & Features


Dimension
Depth : 56' 8"
Width : 66' 8"
Area
Basement Living: 1176 sq/ft
First Floor: 2136 sq/ft height 8'
Garage: 551 sq/ft
Ceiling
Main Ceiling : 8'
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Storage Area
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
