PLAN #70-509

Key Specs


3358
sq ft

5
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

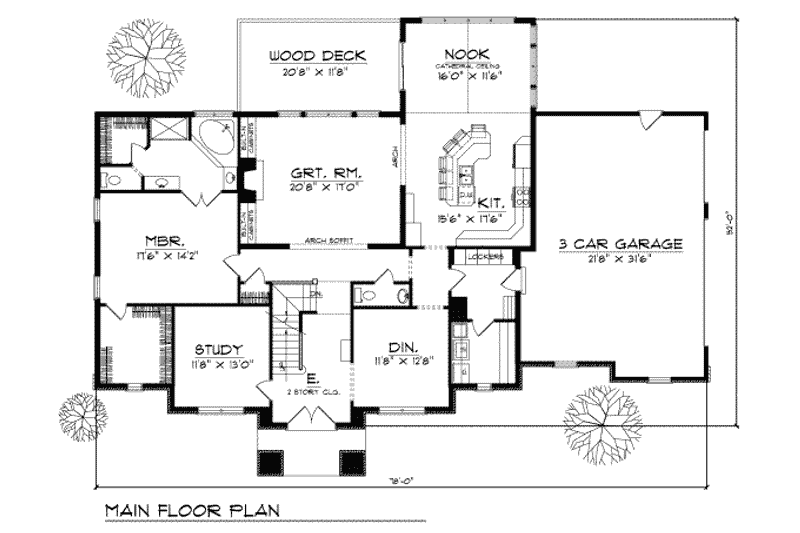

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #70-509

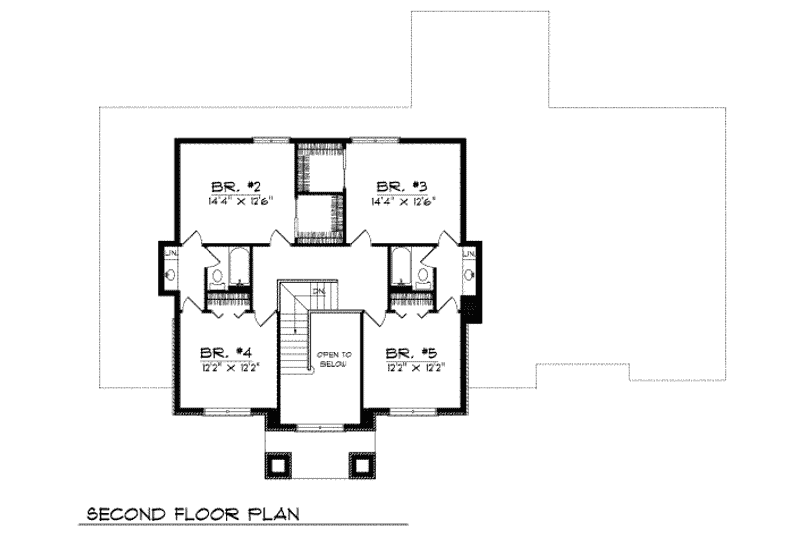

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #70-509

Full Specs & Features


Dimension
Depth : 52'
Height : 34'
Width : 78'
Area
First Floor: 2258 sq/ft height 9'
Second Floor: 1100 sq/ft
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Additional Room Features
Jack Jill Bath
Den Office Study Computer
Great Room Living Room
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Loft Balcony
Rooms

Bedroom 2:

179 sq/ft width 14' 4" x depth 12' 6"

Bedroom 3:

179 sq/ft width 14' 4" x depth 12' 6"

Bedroom 4:

148 sq/ft width 12' 2" x depth 12' 2"

Bedroom 5:

148 sq/ft width 12' 2" x depth 12' 2"

Dining Room:

160 sq/ft width 12' 8" x depth 12' 8"

Great Room:

227 sq/ft width 20' 8" x depth 11'

Kitchen:

271 sq/ft width 15' 6" x depth 17' 6"

Master Bedroom:

247 sq/ft width 17' 6" x depth 14' 2"

Nook:

184 sq/ft width 16' x depth 11' 6"

Study:

151 sq/ft width 11' 8" x depth 13'

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.

Plan Set

5 Copy Set :
$945.00
5 printed plan sets mailed to you.
8 Copy Set :
$985.50
8 printed plan sets mailed to you.
PDF Set :
$1183.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1183.50
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1894.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$265.50
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Pier:
$265.50
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Slab:
$265.50
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
265.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
36.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
