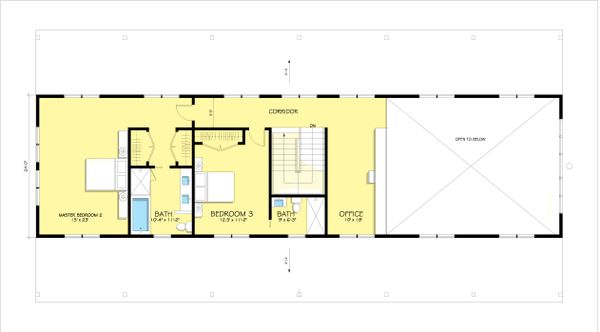

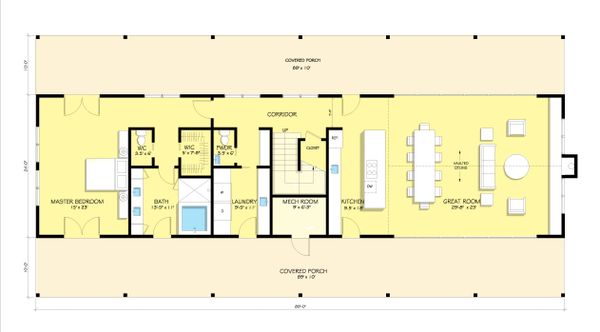

- Floor plans (2)
Key Specs
3374
sq ft
3
Beds
3.5
Baths
2
Floors
0
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 888-15
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 44'
Height : 28' 8"
Width : 89' 10"
Area
First Floor: 2071 sq/ft height 10'
Second Floor: 1303 sq/ft height 9'
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Metal
Secondary Pitch : 2:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x6
Insulation : R31
Bedroom Features
2 Master Suites
Main Floor Master Bedroom
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
- COVER PAGE: Cover Sheet: Showing architectural rendering of residence
- FOUNDATION PLAN: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- FLOOR PLAN: Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- ROOF PLAN: An overhead "birds-eye" view of the roof, describing roof slope
- ELEVATIONS: A blueprint picture of all four sides showing exterior materials and measurements.
- SECTIONS: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- ELECTRICAL PLAN: Shows the locations of lights, receptacles, switches, etc.
- TYPICAL WALL SECTION & DETAILS
Plan Set
$960.00
$1080.00
$1320.00
$1380.00
$720.00
$960.00
Foundation
$0.00
$200.00
$200.00
Additional Options
$120.00
$60.00
$80.00
$316.00
$31.20
$120.00
* Alternate Foundations may take time to prepare.
