A cozy, country-style exterior opens up to expose an interior of sublime luxury. A wine room right off the foyer immediately reveals that the homeowners have a knack for tasteful entertainment. Space for both formal and informal gatherings is provided by an expansive living room, an open dining room adjoining a gourmet kitchen, and a sprawling lanai. An outdoor fireplace supplies warmth on chilly nights, while tiled floors within keep the home feeling comfortably cool through summer in the subtropics. Note: First story walls are constructed of concrete block; upper stories are 2 x 6 wood-framed

Floor Plans

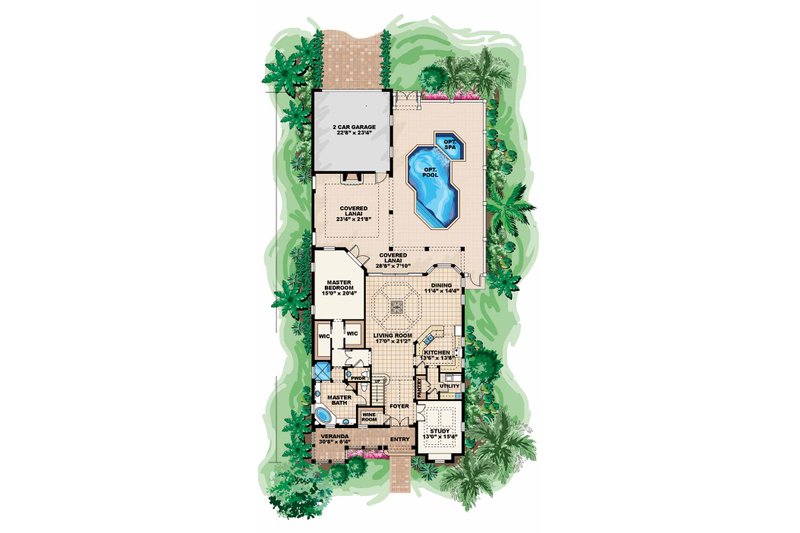

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #1017-17

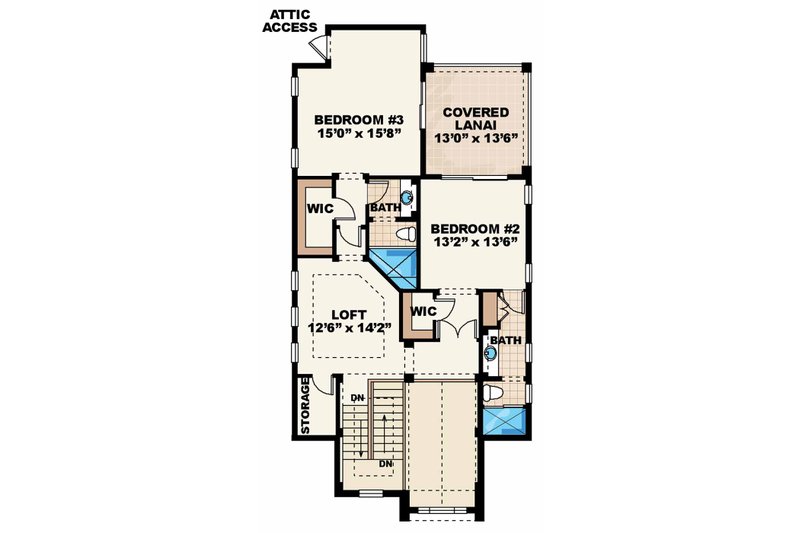

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #1017-17

Full Specs & Features

Depth : 109' 4"
Height : 31' 3"
Width : 45'
First Floor: 2289 sq/ft height 10'
Garage: 592 sq/ft
Second Floor: 1090 sq/ft height 9'
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Wine Cellar
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Rear Entry Garage
Outdoor Spaces
Covered Front Porch
Loft Balcony
Wheelchair Adaptable

Bedroom 2:

177 sq/ft width 13' 2" x depth 13' 6"

Bedroom 3:

235 sq/ft width 15' x depth 15' 8"

Dining Room:

162 sq/ft width 11' 4" x depth 14' 4"


528 sq/ft width 22' 8" x depth 23' 4"


184 sq/ft width 13' 6" x depth 13' 8"


175 sq/ft width 13' x depth 13' 6"


224 sq/ft width 28' 8" x depth 7' 10"


505 sq/ft width 23' 4" x depth 21' 8"

Living Room:

359 sq/ft width 17' x depth 21' 2"


177 sq/ft width 12' 6" x depth 14' 2"

Master Bedroom:

304 sq/ft width 15' x depth 20' 4"


199 sq/ft width 13' x depth 15' 4"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
