PLAN #47-989

Key Specs


3415
sq ft

4
Beds

2
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This traditional design may be designed as a four- or a five-bedroom home. You'll also have the choice of a stucco or a brick exterior. The first floor holds living and dining space for both formal and informal occasions. A hearth warms the family room; you may also choose a hearth for the formal living room. The kitchen is large enough to suit the fussiest gourmet and features an island work center. A large laundry/sewing room connects the first floor to the two-car garage. Bedrooms on the second floor include three family bedrooms and a master suite with an outside deck. The master bath is appointed with a corner whirlpool tub, double sinks and a separate shower. A den on the second floor can become a fifth bedroom, if you choose. <P/><BR/>

Floor Plans

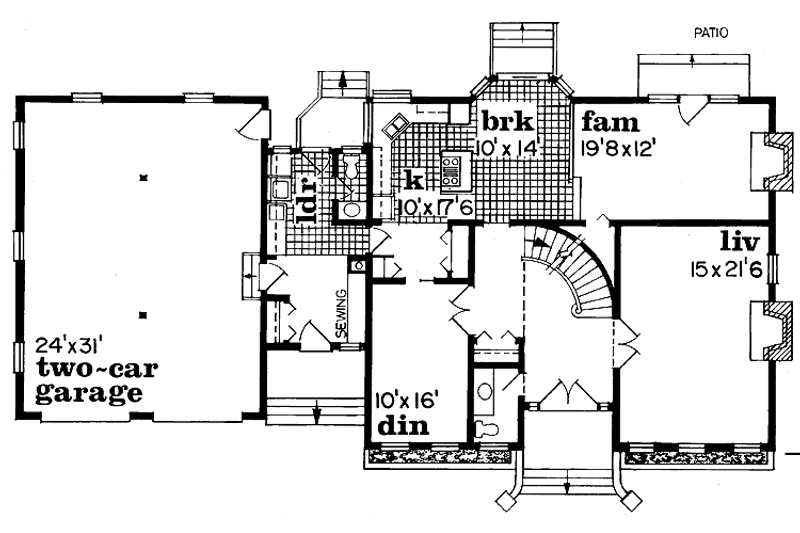

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #47-989

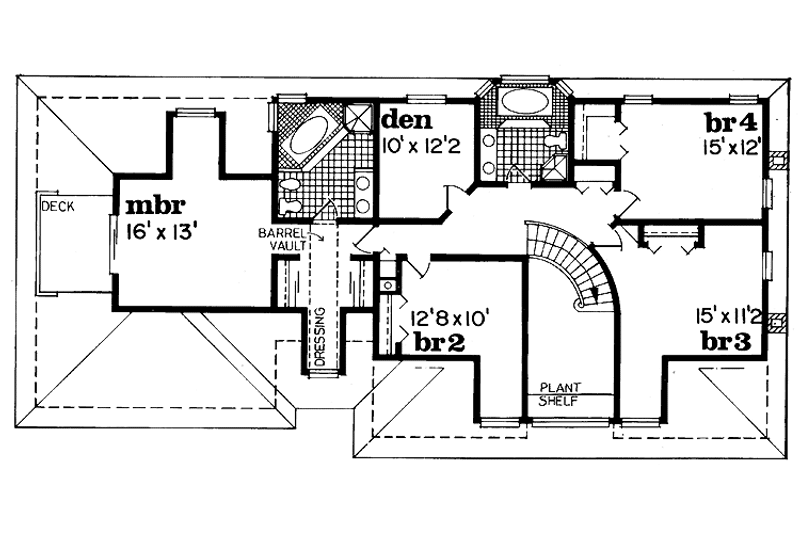

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #47-989

Full Specs & Features


Dimension
Depth : 37' 8"
Height : 35'
Width : 76' 8"
Area
First Floor: 1626 sq/ft height 8'
Second Floor: 1789 sq/ft
Roof
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

3rd BR Closet:

11 sq/ft width 2' x depth 5' 11"

Basement Foundation:

1952 sq/ft width 37' 8" x depth 51' 10"

Bathroom 2:

21 sq/ft width 7' x depth 3'

Bedroom 2:

126 sq/ft width 10' x depth 12' 8"

Bedroom 2 Closet:

15 sq/ft width 7' 10" x depth 2'

Bedroom 3:

167 sq/ft width 11' 2" x depth 15'

Bedroom 3 Closet:

15 sq/ft width 7' 10" x depth 2'

Bedroom 4:

180 sq/ft width 12' x depth 15'

Bedroom 4 Closet:

26 sq/ft width 6' 2" x depth 4' 4"

Breakfast Room:

140 sq/ft width 14' x depth 10'

Crawlspace Foundation:

1952 sq/ft width 37' 8" x depth 51' 10"

Deck:

53 sq/ft width 6' 8" x depth 8'

Dining Room:

160 sq/ft width 16' x depth 10'

Foyer:

76 sq/ft width 8' 6" x depth 9'

Garage:

744 sq/ft width 31' x depth 24'

Gathering Room:

236 sq/ft width 12' x depth 19' 8"

Hall Bathroom:

103 sq/ft width 10' 6" x depth 9' 10"

Hall Closet:

9 sq/ft width 2' x depth 4' 7"

Kitchen:

175 sq/ft width 17' 6" x depth 10'

Living Room:

322 sq/ft width 21' 6" x depth 15'

Master Bathroom:

122 sq/ft width 12' 3" x depth 10'

Master Bedroom:

208 sq/ft width 13' x depth 16'

Master Closet:

10 sq/ft width 5' x depth 2'

Porch - Front:

70 sq/ft width 7' x depth 10'

Porch - Rear:

35 sq/ft width 5' x depth 7' 2"

Powder Room:

34 sq/ft width 7' 7" x depth 4' 7"

Study:

121 sq/ft width 12' 2" x depth 10'

Utility Room:

190 sq/ft width 19' x depth 10'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$1029.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1134.00
5 printed plan sets mailed to you.
8 Copy Set :
$1239.00
8 printed plan sets mailed to you.
Reproducible Set :
$1239.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2058.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$275.00
Ideal for sloping lot, lower level of home partially underground.
Slab:
$275.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Material List :
85.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
