PLAN #417-741

Key Specs


3432
sq ft

4
Beds

4
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

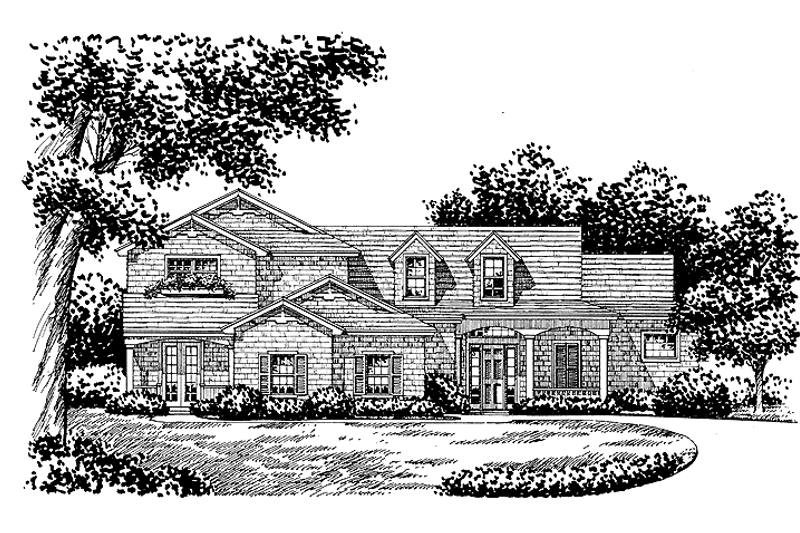

Craftsman details, gables and plenty of outdoor access lend a freshness to this four-bedroom home. A wraparound porch welcomes guests and homeowners inside. Columns define the dining room from the entry, while a tray ceiling and bay window attract attention to this formal eating area. To the right of the formal living room is the master suite. Another tray ceiling graces the master bedroom, while two walk-in closets, a soaking tub and separate shower ensure plenty of enjoyment for the homeowner. French doors in the family room, living room and master bedroom open to the rear covered patio, extending the living space outdoors. The second floor includes two family bedrooms, two full baths and a game room. Note the balcony access via French doors from both Bedroom 4 and the game room.

Floor Plans

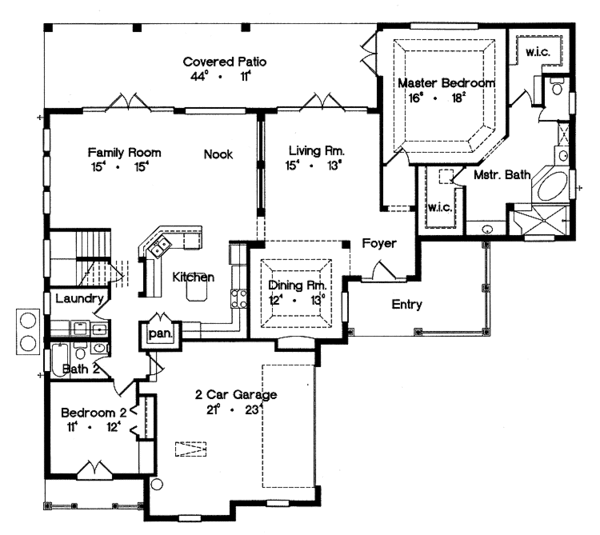

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

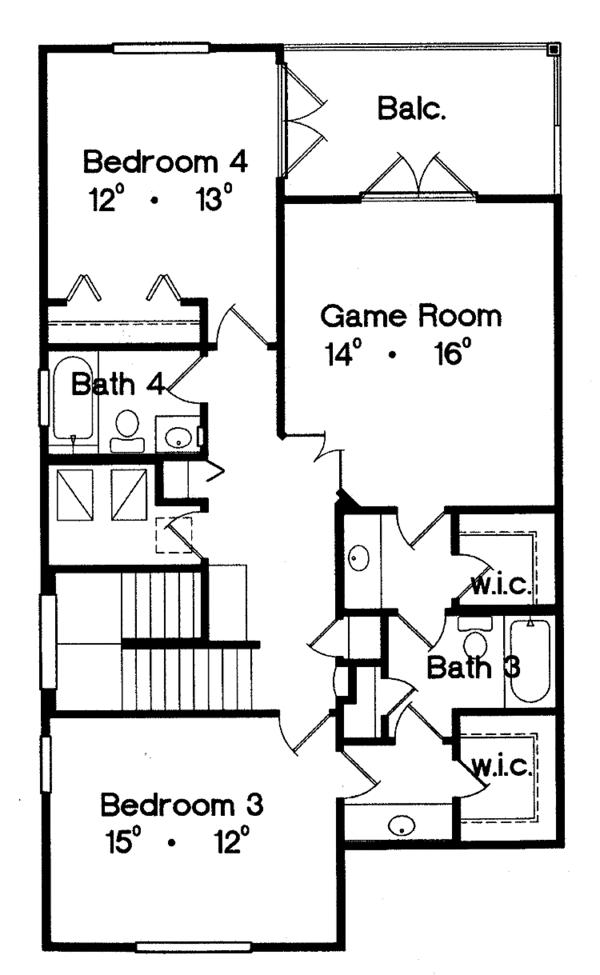

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 2390 sq/ft
Upper Floor : 1042 sq/ft
Bedroom Features Split Bedrooms
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Kitchenette Wet Bar
Breakfast Nook
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space
Open Floor Plan
Outdoor Spaces Courtyard
Covered Front Porch
Loft Balcony

What's Included In This Plan Set


Home Design Services - Zirkel

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
$1060.00
5 printed plan sets mailed to you.
PDF Set :
$1300.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1300.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Block:
$0.00
Block
Additional Options
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
