PLAN #417-558

Key Specs


3436
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Though designed as a grand estate, this home retains the warmth of a country manor with intimate details, on the inside and out. A one-of-a-kind drive court leads to private parking and ends in a two-car garage; a separate guest house is replete with angled walls and sculptured ceilings. A continuous vault follows from the family room through the kitchen and nook. The vault soars even higher in the bonus room with a sundeck upstairs. Two exquisitely appointed family bedrooms with window seats and walk-in closets share a full bath. The master suite has pampering details such as a juice bar and media wall, walk-in closets, and covered patio access.

Floor Plans

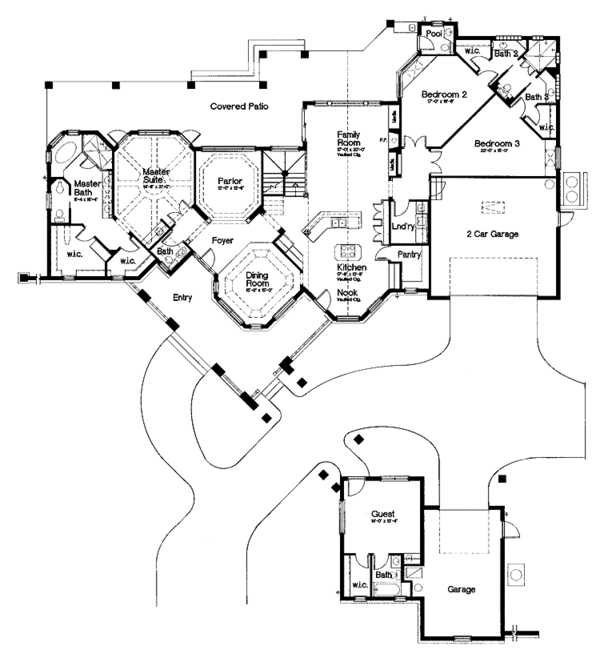

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-558

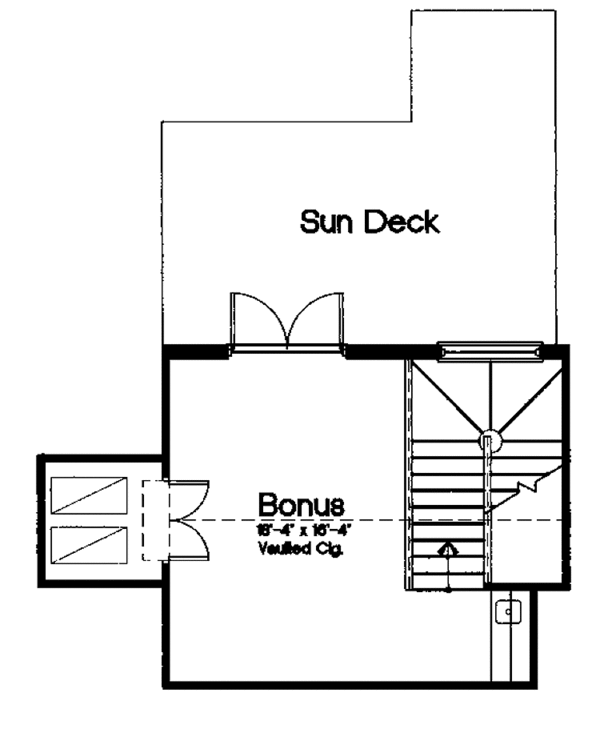

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #417-558

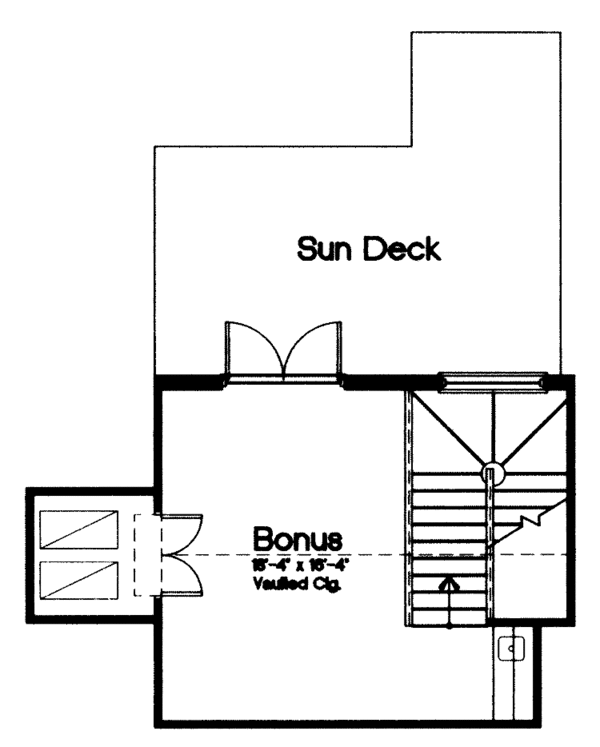

Floor Plan - Other Floor Plan
Mediterranean Floor Plan - Other Floor Plan Plan #417-558

Full Specs & Features


Dimension
Depth : 113' 6"
Height : 30' 2"
Width : 94'
Area
Deck: 286 sq/ft
First Floor: 3146 sq/ft height 10'
Garage: 847 sq/ft
Patio: 716 sq/ft
Porch: 400 sq/ft
Second Floor: 290 sq/ft
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Unfinished Future Space
Outdoor Spaces
Courtyard
Loft Balcony
Outdoor Kitchen Grill
Rooms

3rd BR Closet:

35 sq/ft width 5' 11" x depth 6'

Bathroom 2:

259 sq/ft width 18' 1" x depth 14' 4"

Bathroom 3:

140 sq/ft width 11' 8" x depth 12'

Bathroom 4:

40 sq/ft width 5' 4" x depth 7' 8"

Bedroom 2:

281 sq/ft width 19' 2" x depth 14' 8"

Bedroom 2 Closet:

36 sq/ft width 6' 4" x depth 5' 10"

Bedroom 3:

345 sq/ft width 23' x depth 15'

Bedroom 3 Closet:

36 sq/ft width 6' x depth 6'

Bedroom 4 Closet:

37 sq/ft width 4' 10" x depth 7' 8"

Bonus Room - Finished:

195 sq/ft width 12' x depth 16' 4"

Deck:

241 sq/ft width 11' 8" x depth 20' 8"

Dining Room:

177 sq/ft width 12' 8" x depth 14'

Foyer:

82 sq/ft width 7' 9" x depth 10' 8"

Garage:

498 sq/ft width 23' x depth 21' 8"

Garage Two:

326 sq/ft width 14' x depth 23' 4"

Gathering Room:

340 sq/ft width 17' x depth 20'

Guest Bathroom:

40 sq/ft width 5' 4" x depth 7' 8"

Guest Suite:

144 sq/ft width 14' x depth 10' 4"

Kitchen:

227 sq/ft width 21' x depth 10' 10"

Laundry Room:

52 sq/ft width 6' 10" x depth 7' 8"

Master Bathroom:

185 sq/ft width 11' 4" x depth 16' 4"

Master Bedroom:

310 sq/ft width 14' 8" x depth 21' 2"

Master Closet:

93 sq/ft width 10' x depth 9' 4"

Master Closet Two:

77 sq/ft width 9' x depth 8' 7"

Nook:

161 sq/ft width 15' 8" x depth 10' 4"

Pantry:

43 sq/ft width 5' x depth 8' 9"

Parlor:

153 sq/ft width 12' x depth 12' 10"

Patio:

623 sq/ft width 68' x depth 9' 2"

Pool Bath:

31 sq/ft width 6' x depth 5' 4"

Porch - Front:

660 sq/ft width 30' x depth 22'

Powder Room:

28 sq/ft width 5' 4" x depth 5' 4"
