PLAN 70-1288
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
4220
sq ft
4
Beds
4.5
Baths
2
Floors
4
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBSUMMER
Use Code CTBSUMMER
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 70-1288
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
• A spacious porch is defined by massive columns and an overhead balcony on this Craftsman style luxury home. • As you enter through the double doors of this home you’ll be drawn into the great room where a wall of windows allows plenty of natural light in to warm the area. • An open concept floor plan includes a center island in the kitchen that overlooks the dining and great rooms. • The main floor master suite includes his and hers walk-in closets, dual sinks and a freestanding tub in the bathroom. • Two additional bedrooms, each with walk-in closet and private bath are located on the second floor. • Guest quarters are located upstairs above the garage and include a living area, small kitchen and private bath. • A loft with access to a front deck is also located on the second floor.
Floor Plans

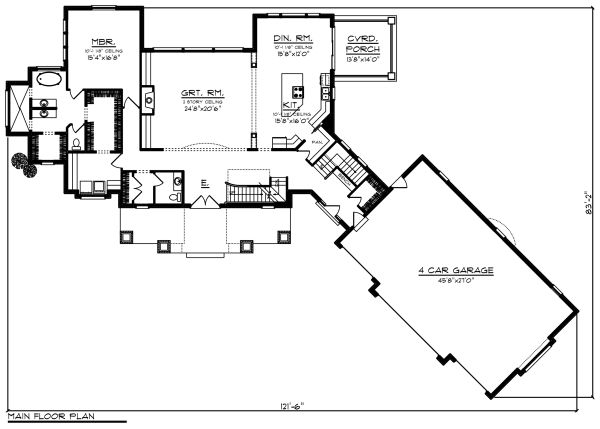

Floor Plan - Main Floor

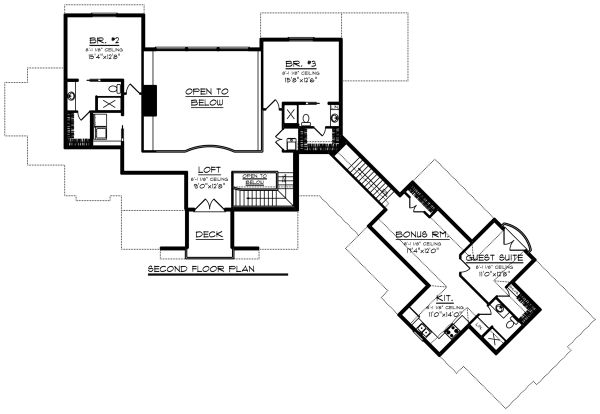

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 83' 2"
Height : 30' 6"
Width : 121' 6"
Area
Bonus : 671 sq/ft
Garage : 1263 sq/ft
Main Floor : 2465 sq/ft
Porch : 523 sq/ft
Upper Floor : 1084 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Grt Rm 2-Story
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Shake, Vertical Siding, Siding, Stone.
Framing : 2x6
Insulation : R-20
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Play Flex Room
Storage Area
Unfinished Future Space
Upstairs Laundry
Garage Features
Front Entry Garage
Oversized Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Balcony
Breezeway
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Cover sheet with front rendering
- Foundation Plan(s): Foundation plans at 1/4" = 1' scale
- Floor Plan(s): Floor plans at 1/4" = 1' scale
- Exterior Elevations: Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Building sections and details as required to construct the individual design
- Electrical Plan(s): Schematic electrical plans with suggested switch, outlet, and light fixture locations
- Kitchen Cabinet Elevation(s): Interior elevation of cabinets at 1/4" = 1' scale
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Specification(s): General specification design notes
